Without Digital Motion Control

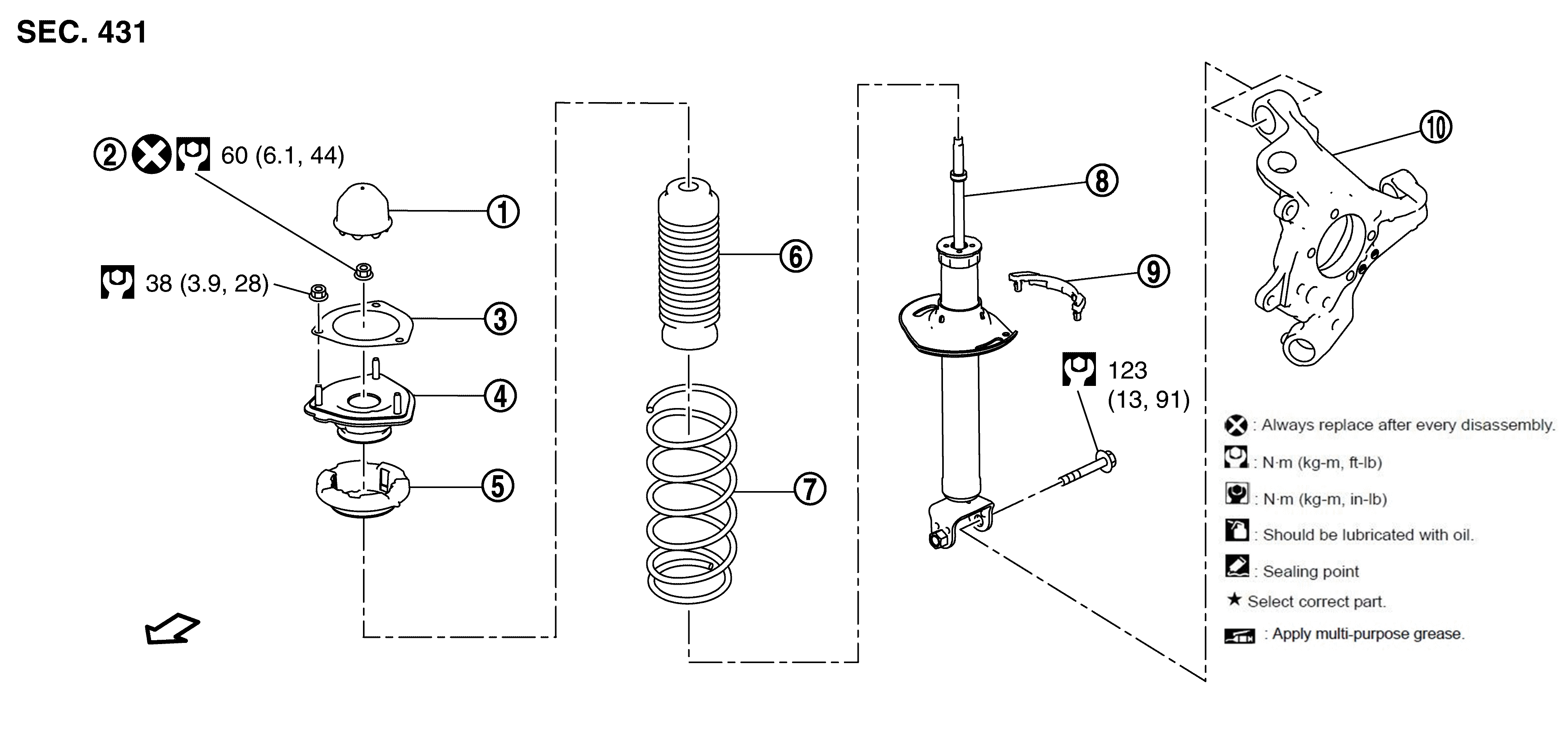

Fig 1: Rear Coil Spring And Shock Absorber W/O Digital Motion Control With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Cap	Piston Rod Lock Nut	Gasket
	Mounting Insulator	Rubber Seat	Bound Bumper
	Coil Spring	Shock Absorber	Spring Lower Pad (Right Side)
	Axle Housing
: Vehicle front
	: N•m (kg-m, ft-lb)
	: Always replace after every disassembly.
