Exploded View

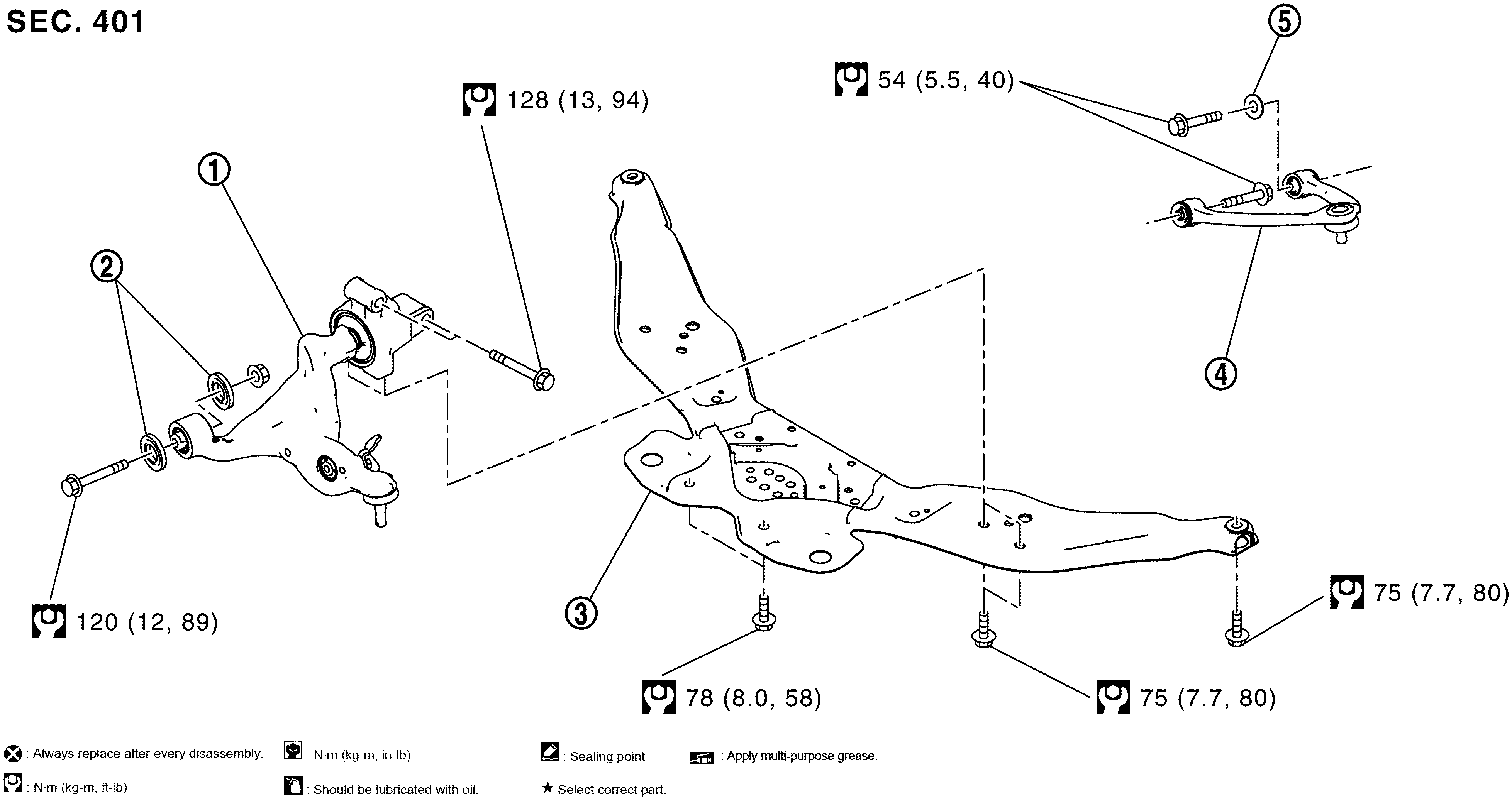

Fig 1: Transverse Link With Torque Specifications
GNSJSEIA0705GB-705Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Transverse Link WHITE-2 Stopper Bushing WHITE-3 Front Cross Bar
WHITE-4 Upper Link WHITE-5 Stopper Arm Bushing
BOLT : N•m (kg-m, ft-lb)
DISAS : Always replace after every disassembly.
