Without Digital Motion Control

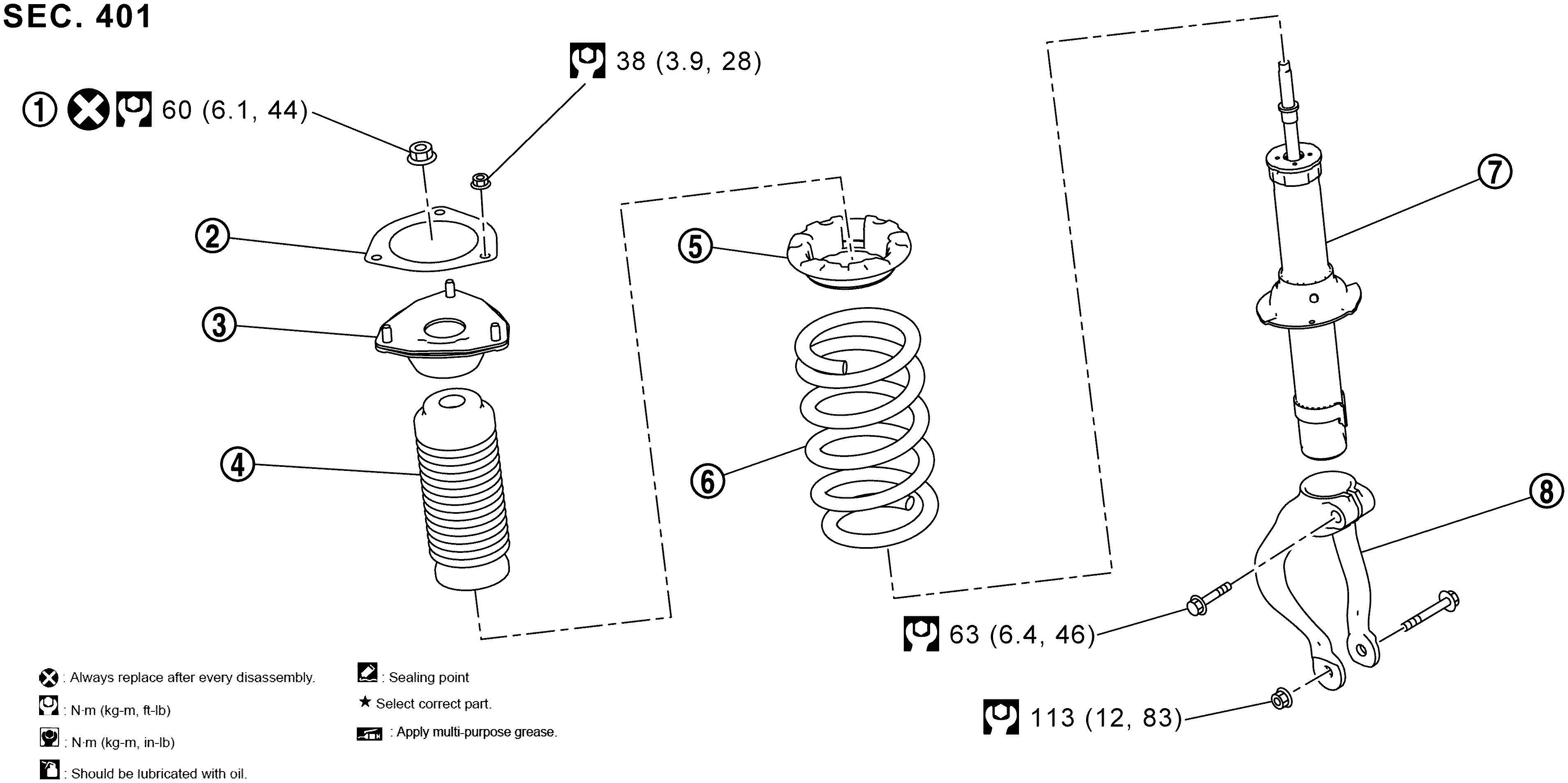

Fig 1: Front Coil Spring And Shock Absorber W/O Digital Motion Control With Torque Specifications
GNSJSEIA1763GB-763Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Piston Rod Lock Nut WHITE-2 Mounting Seal WHITE-3 Shock Absorber Mounting Bracket
WHITE-4 Bound Bumper WHITE-5 Rubber Seat WHITE-6 Coil Spring
WHITE-7 Shock Absorber WHITE-8 Shock Absorber Arm
BOLT : N•m (kg-m, ft-lb)
DISAS : Always replace after every disassembly.
