With Digital Motion Control

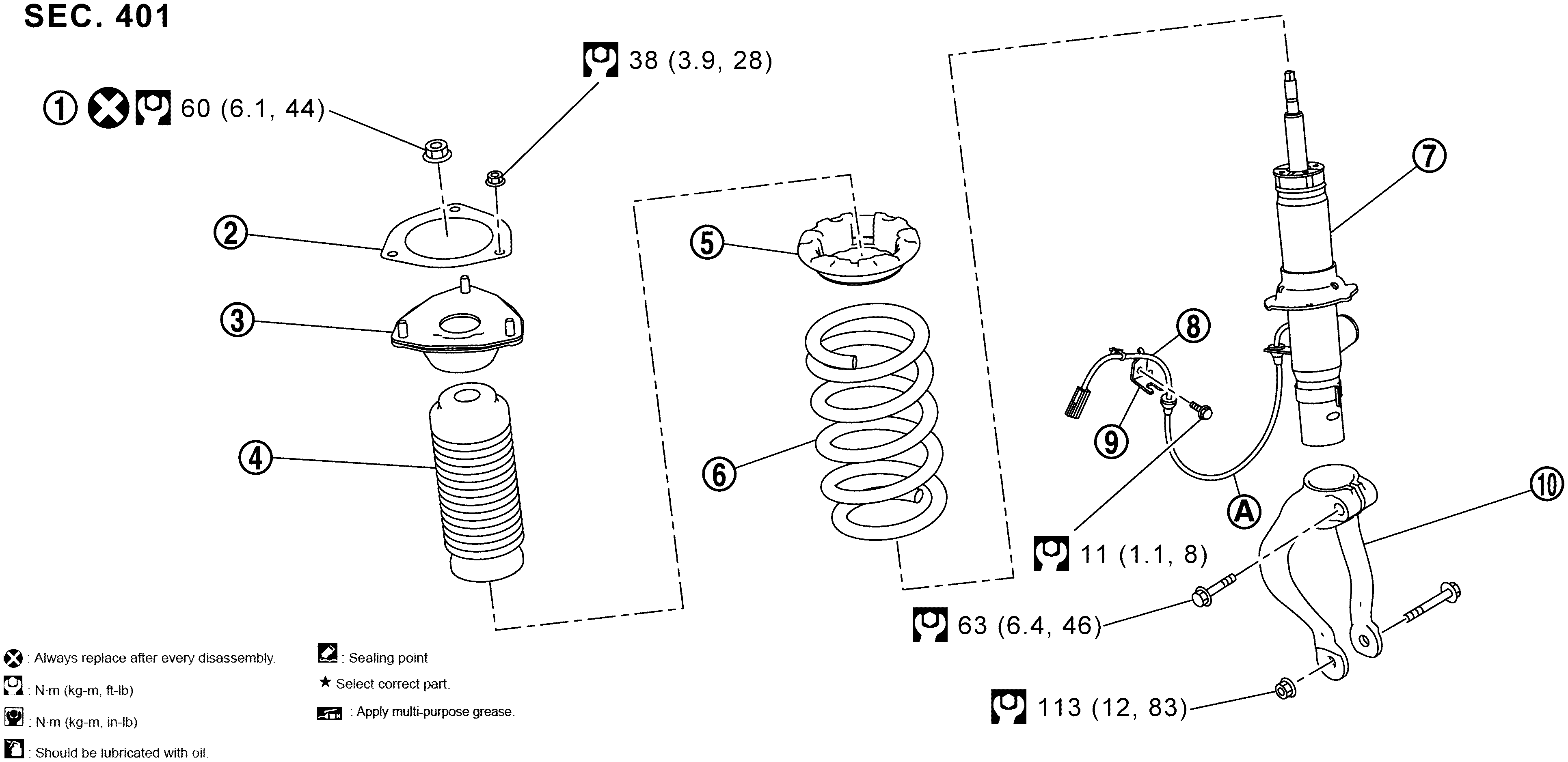

Fig 1: Front Coil Spring And Shock Absorber W/Digital Motion Control With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Piston Rod Lock Nut	Mounting Seal	Dynamic Digital Suspension Mounting Bracket
Bound Bumper	Rubber Seat	Coil Spring
Dynamic Digital Suspension	Dynamic Digital Suspension Harness	Dynamic Digital Suspension Bracket
Shock Absorber Arm
Identification Line
: N•m (kg-m, ft-lb)
: Always replace after every disassembly.
