Exploded View

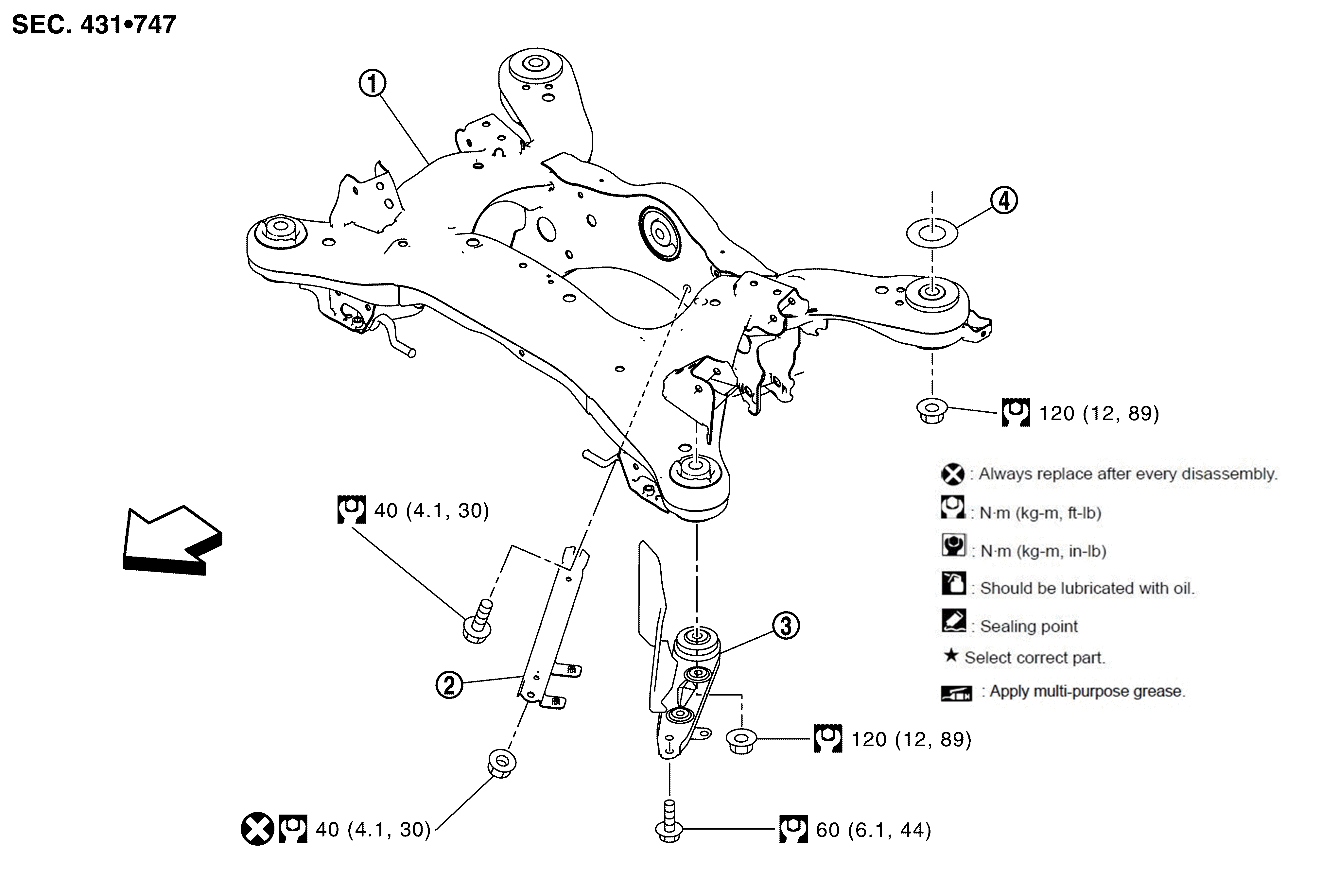

Fig 1: Rear Suspension Assembly With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Rear Suspension Member	Member Stay	Rear Suspension Member Stay
	Mount Stopper
: Vehicle front
	: N•m (kg-m, ft-lb)
	: Always replace after every disassembly.
