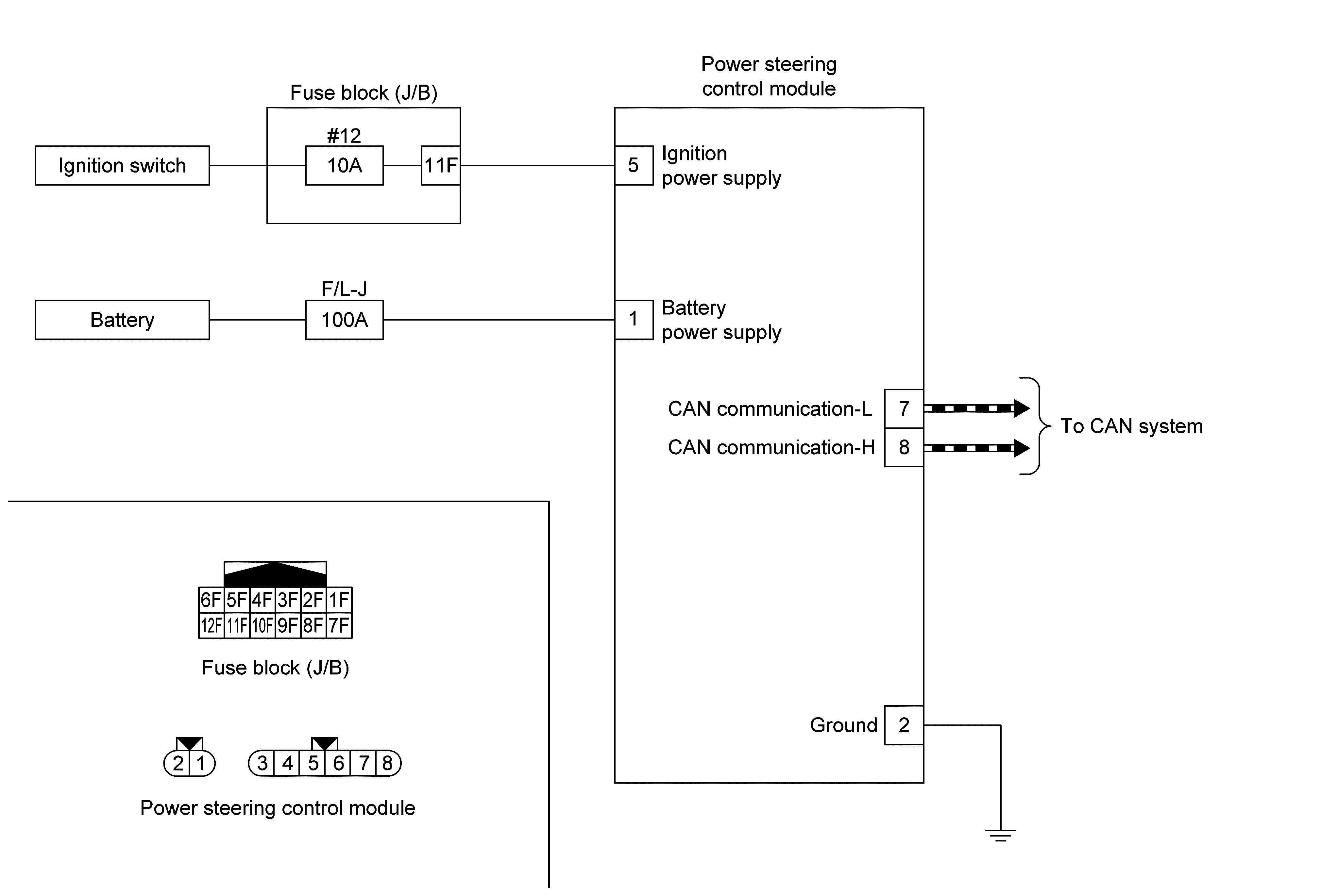

Home >> Infiniti >> 2017 >> Q60 Base, AWD >> Repair and Diagnosis >> Steering >> Steering Control Systems >> Steering Control System (Hydraulic Pump Electric P/S) >> System Description >> System >> Hydraulic Pump Electric Power Steering System >> Circuit Diagram
