Direct Adaptive Steering: Wiring Diagram

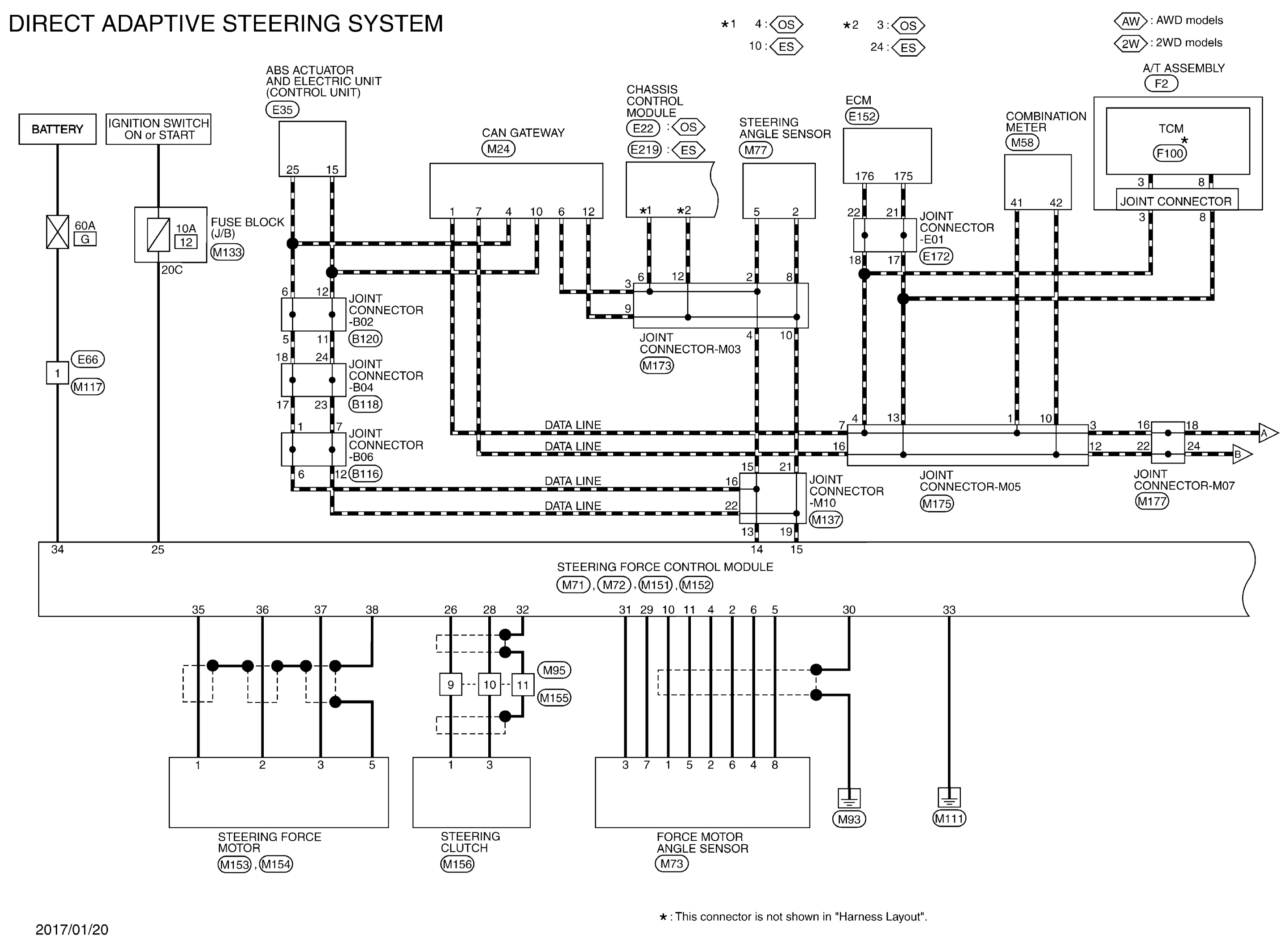

GNSJRGWC4448GB-448

Courtesy of NISSAN NORTH AMERICA, INC.

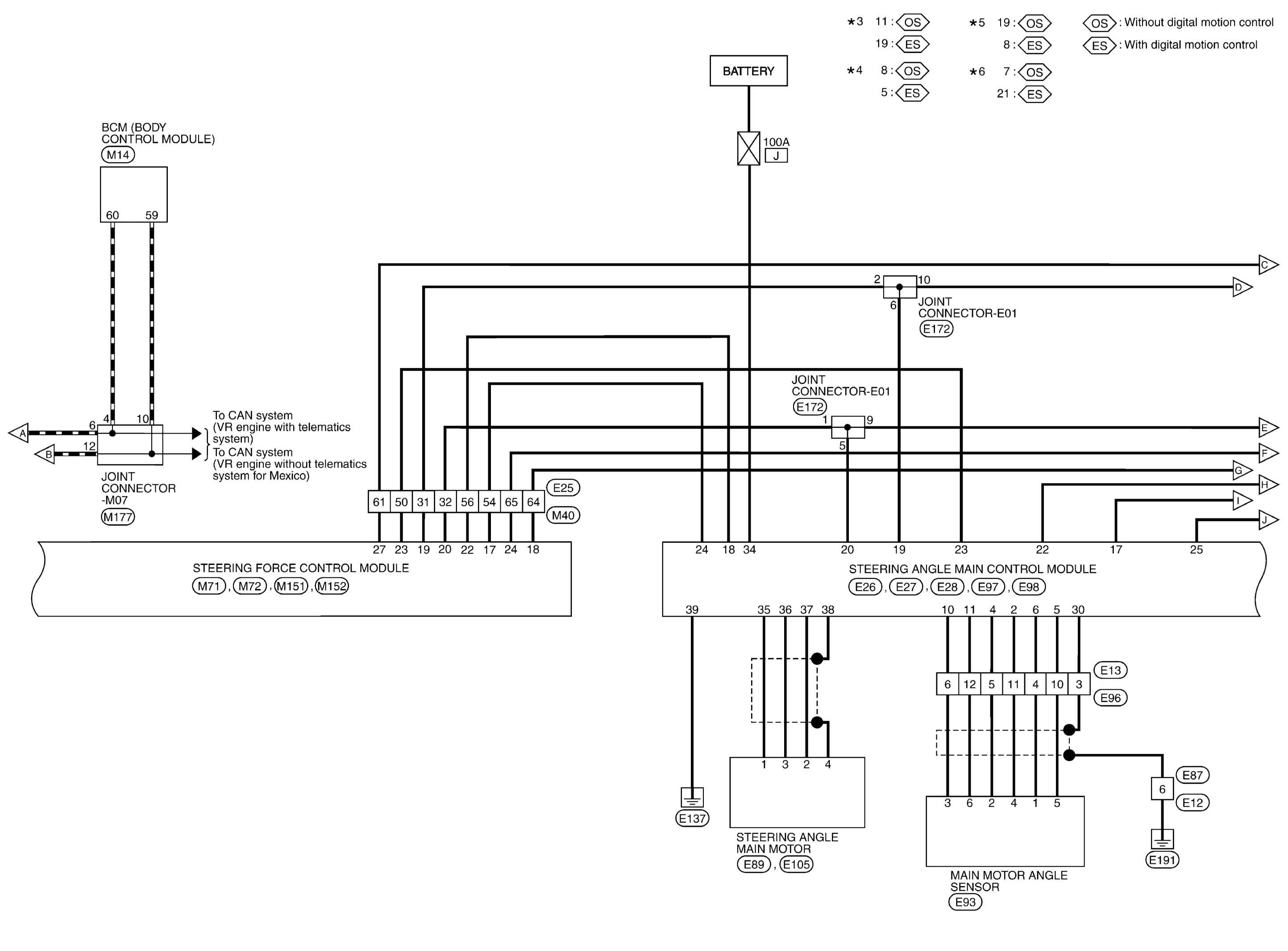

GNSJRGWC4449GB-449

Courtesy of NISSAN NORTH AMERICA, INC.

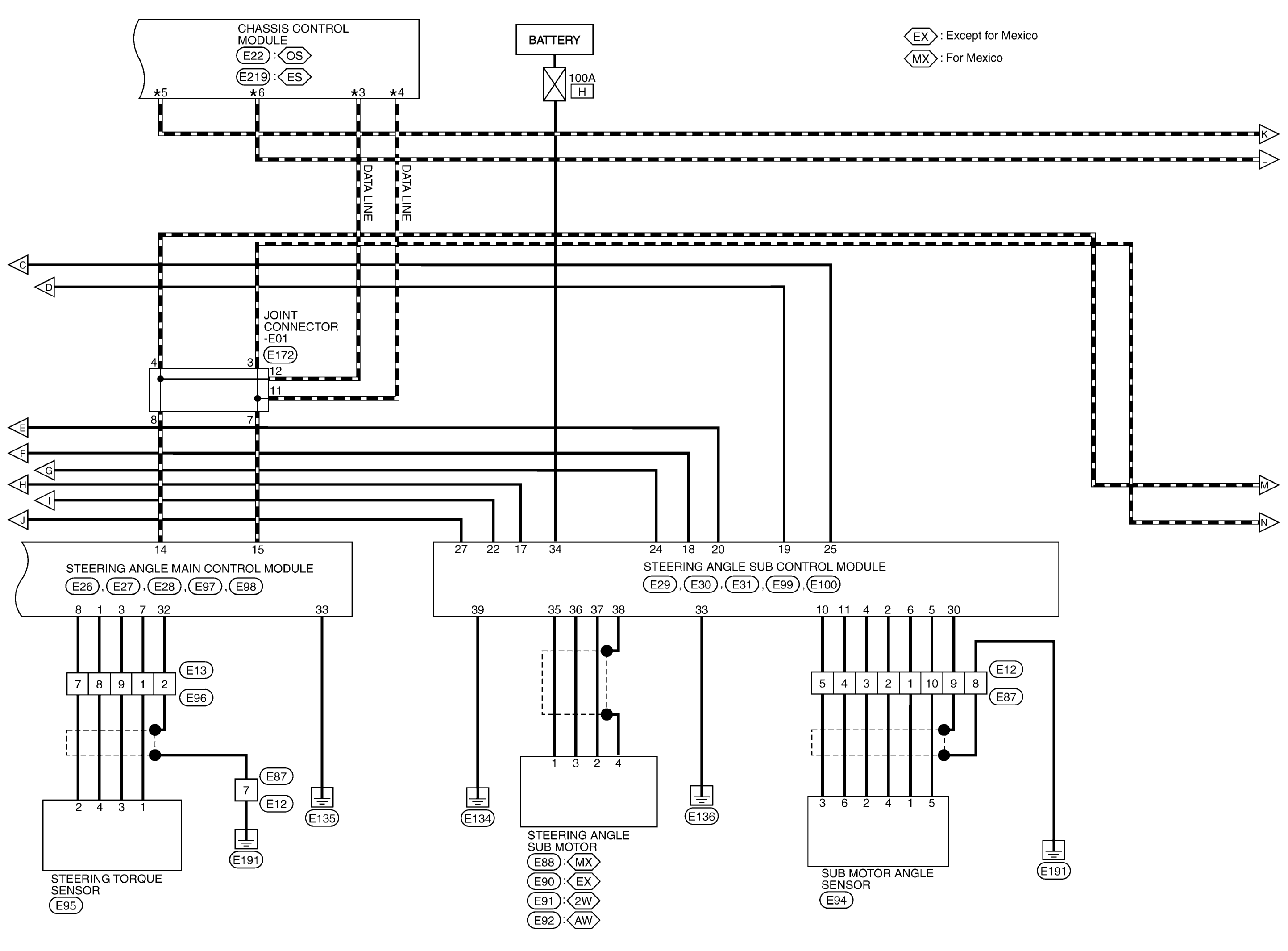

GNSJRGWC4450GB-450

Courtesy of NISSAN NORTH AMERICA, INC.

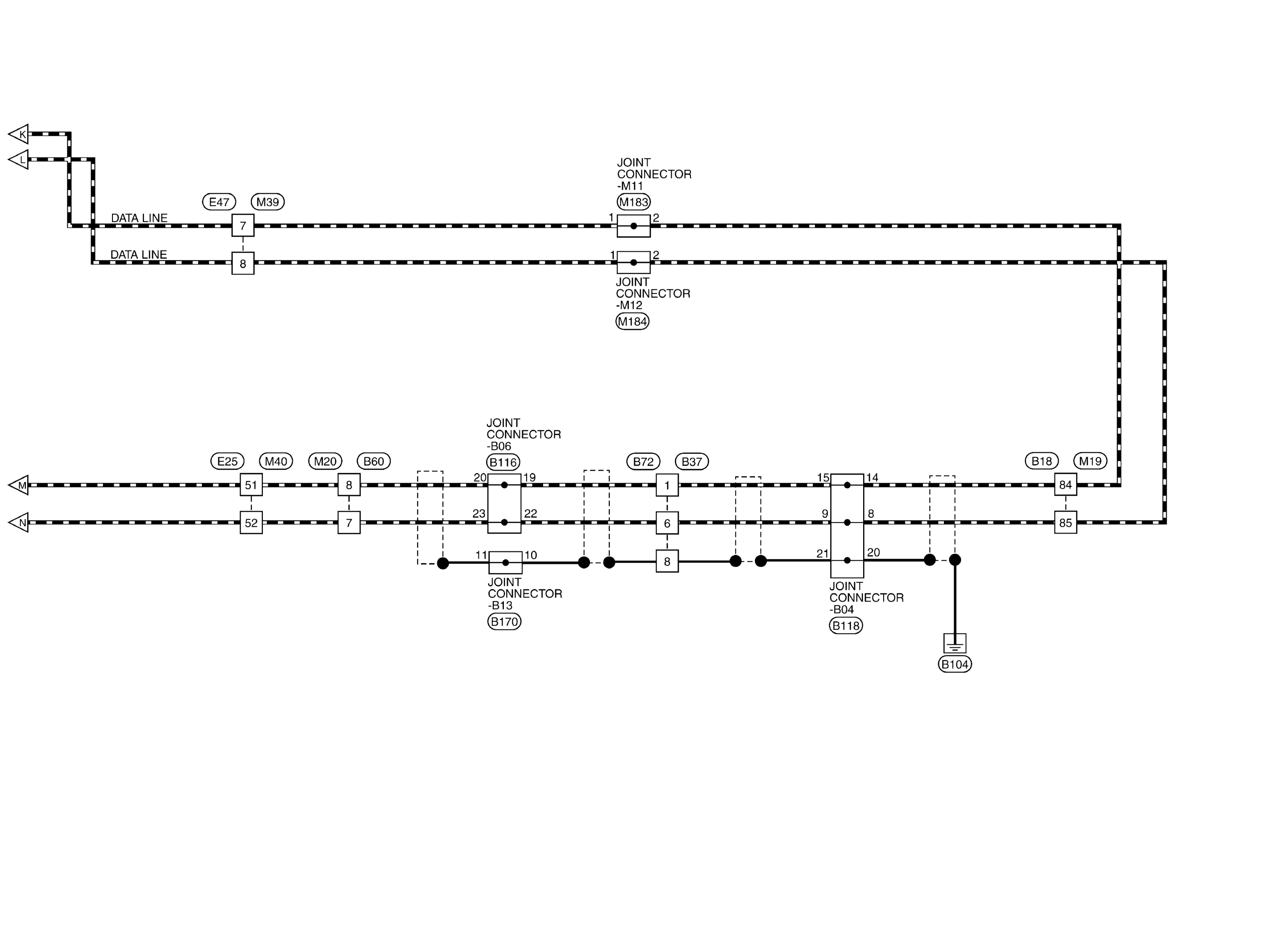

GNSJRGWC4451GB-451

Courtesy of NISSAN NORTH AMERICA, INC.

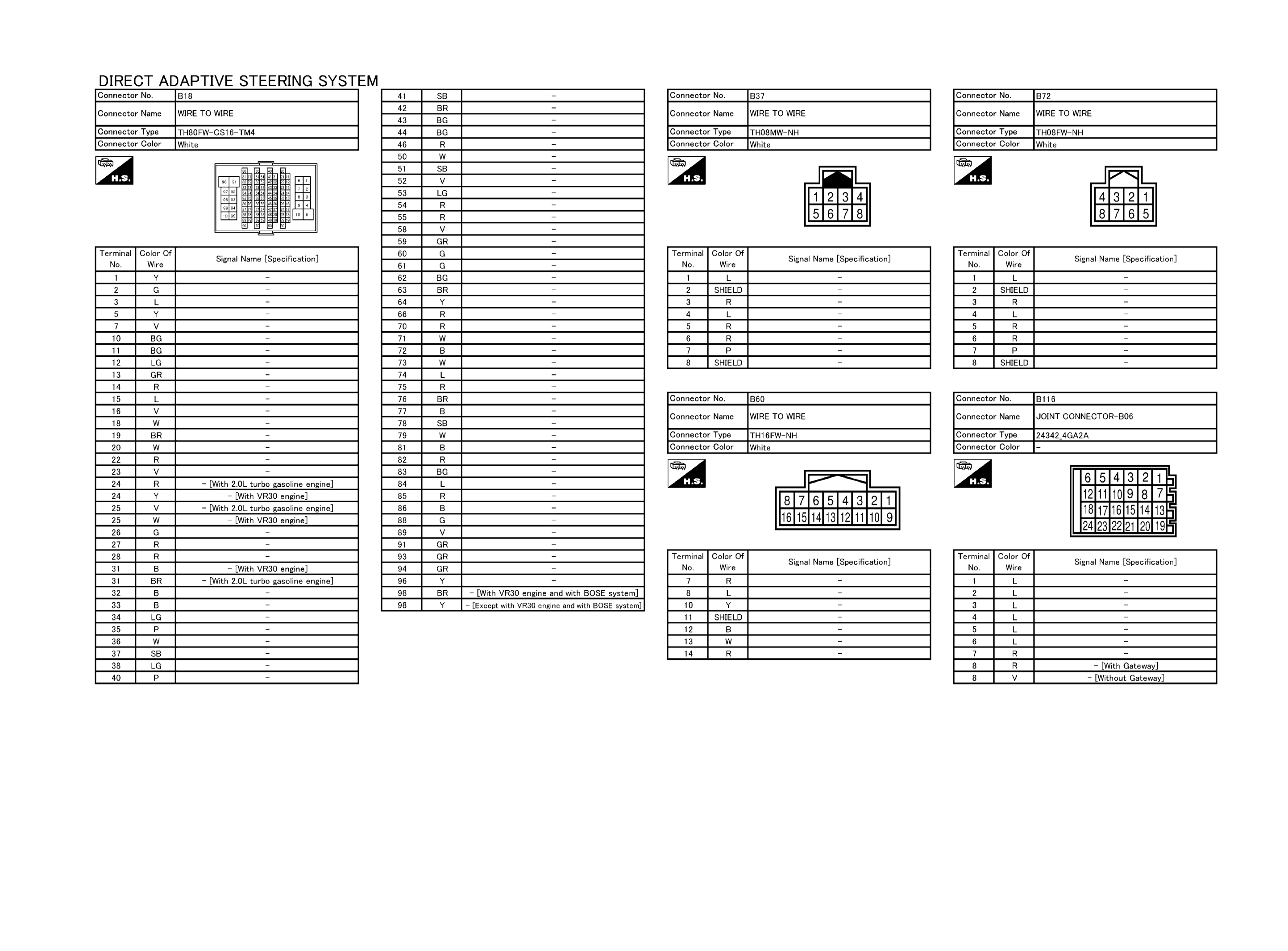

GNSJRGWC4452GB-452

Courtesy of NISSAN NORTH AMERICA, INC.

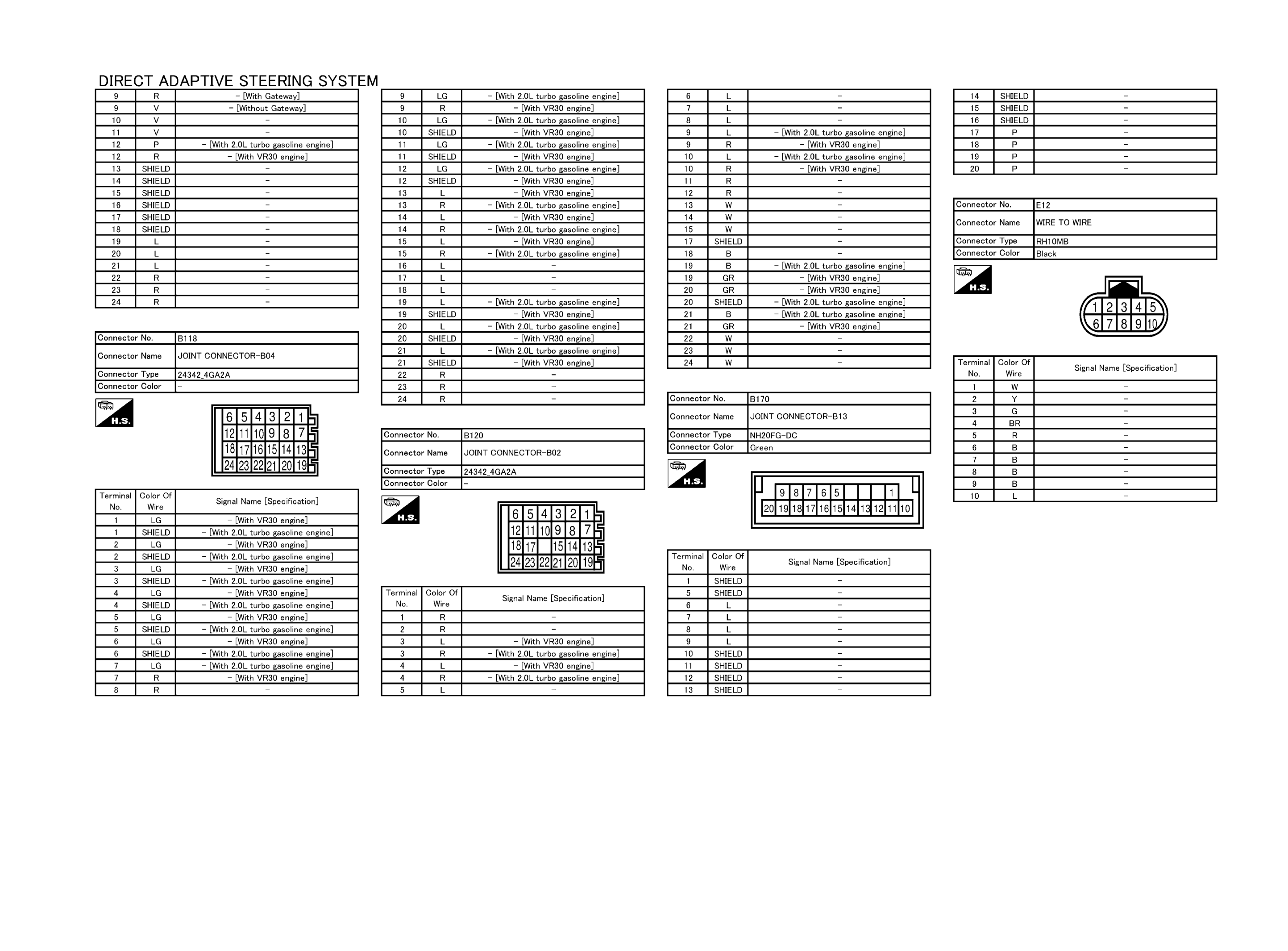

GNSJRGWC4453GB-453

Courtesy of NISSAN NORTH AMERICA, INC.

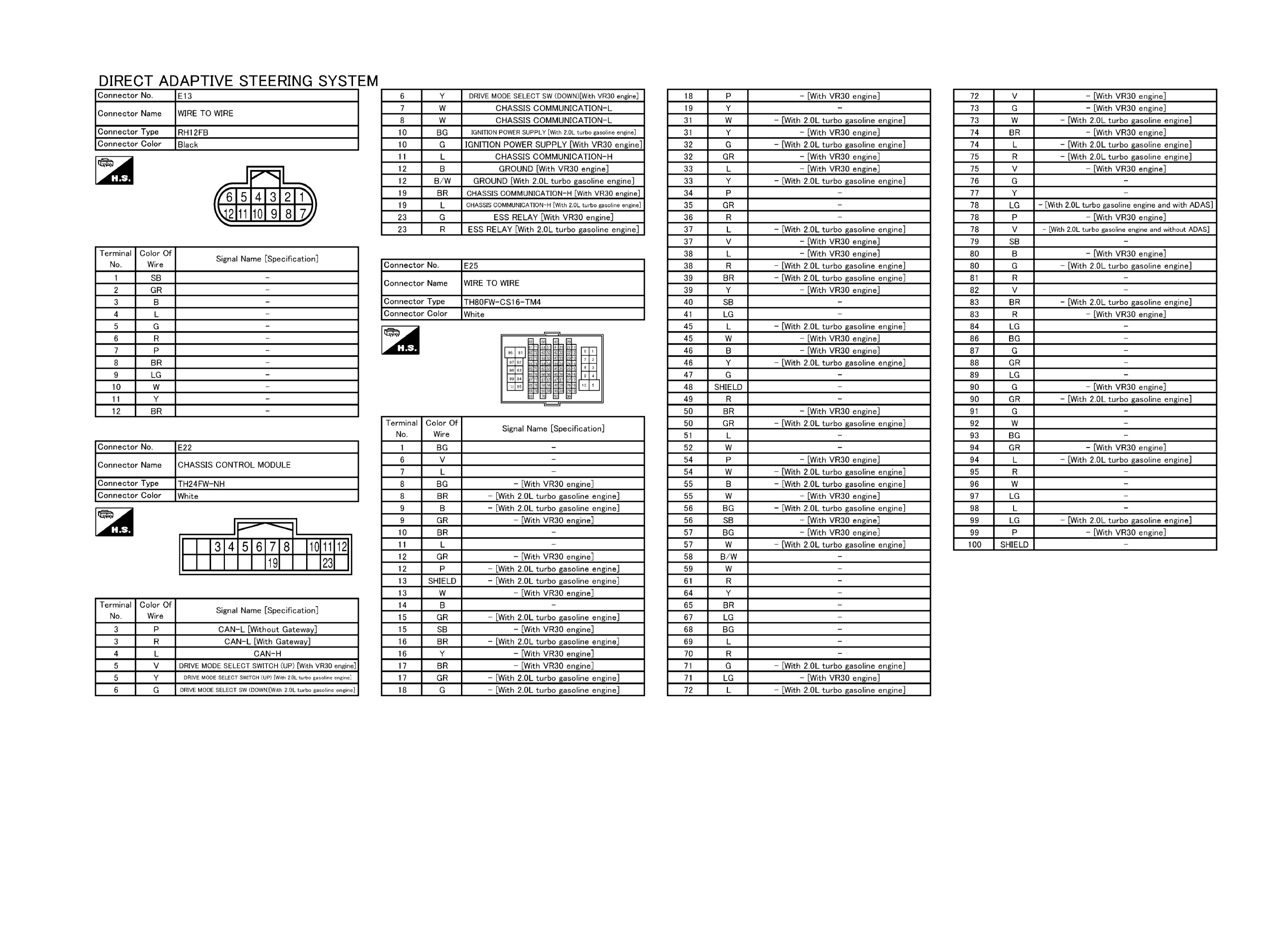

GNSJRGWC4454GB-454

Courtesy of NISSAN NORTH AMERICA, INC.

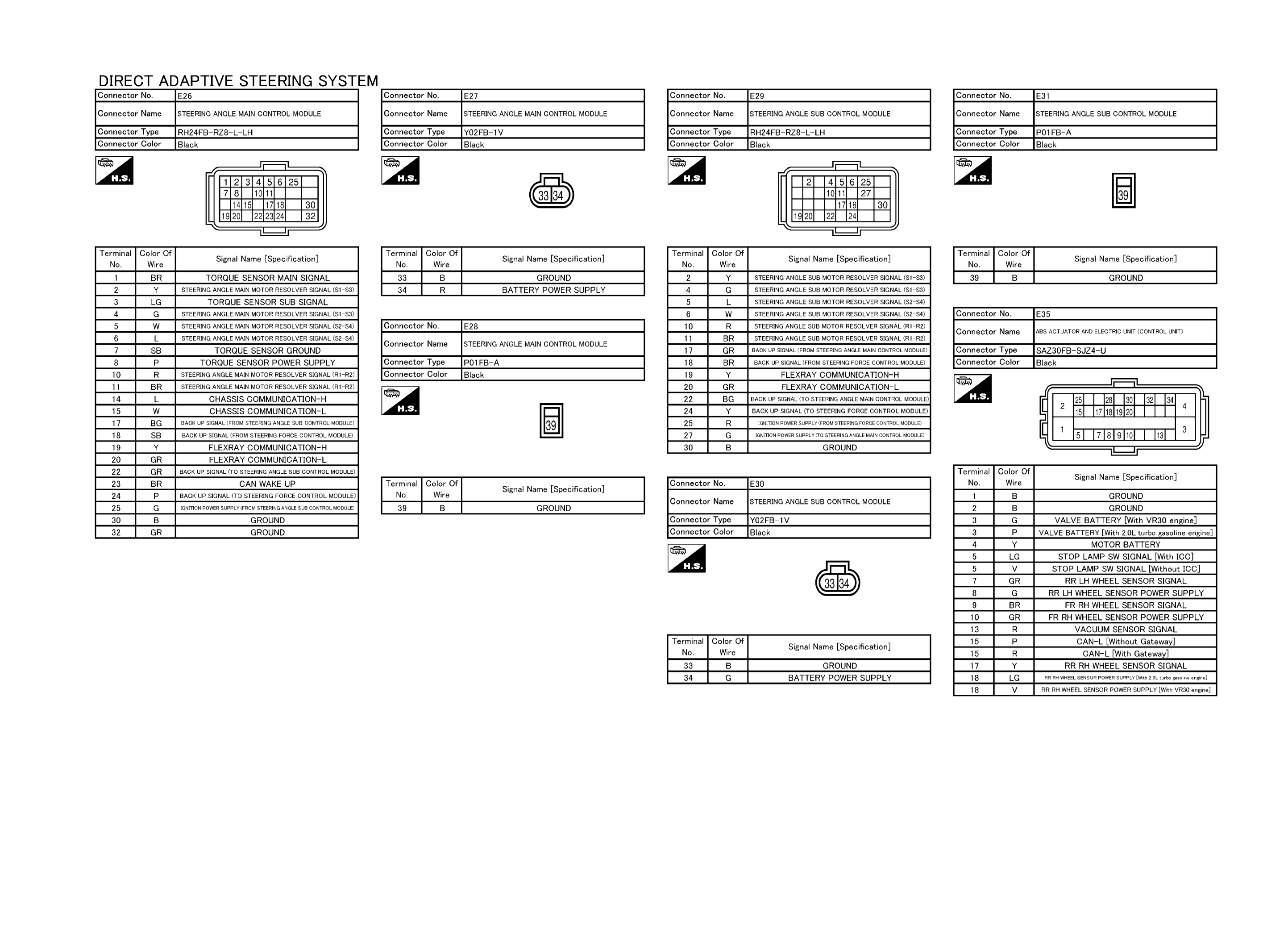

GNSJRGWC4455GB-455

Courtesy of NISSAN NORTH AMERICA, INC.

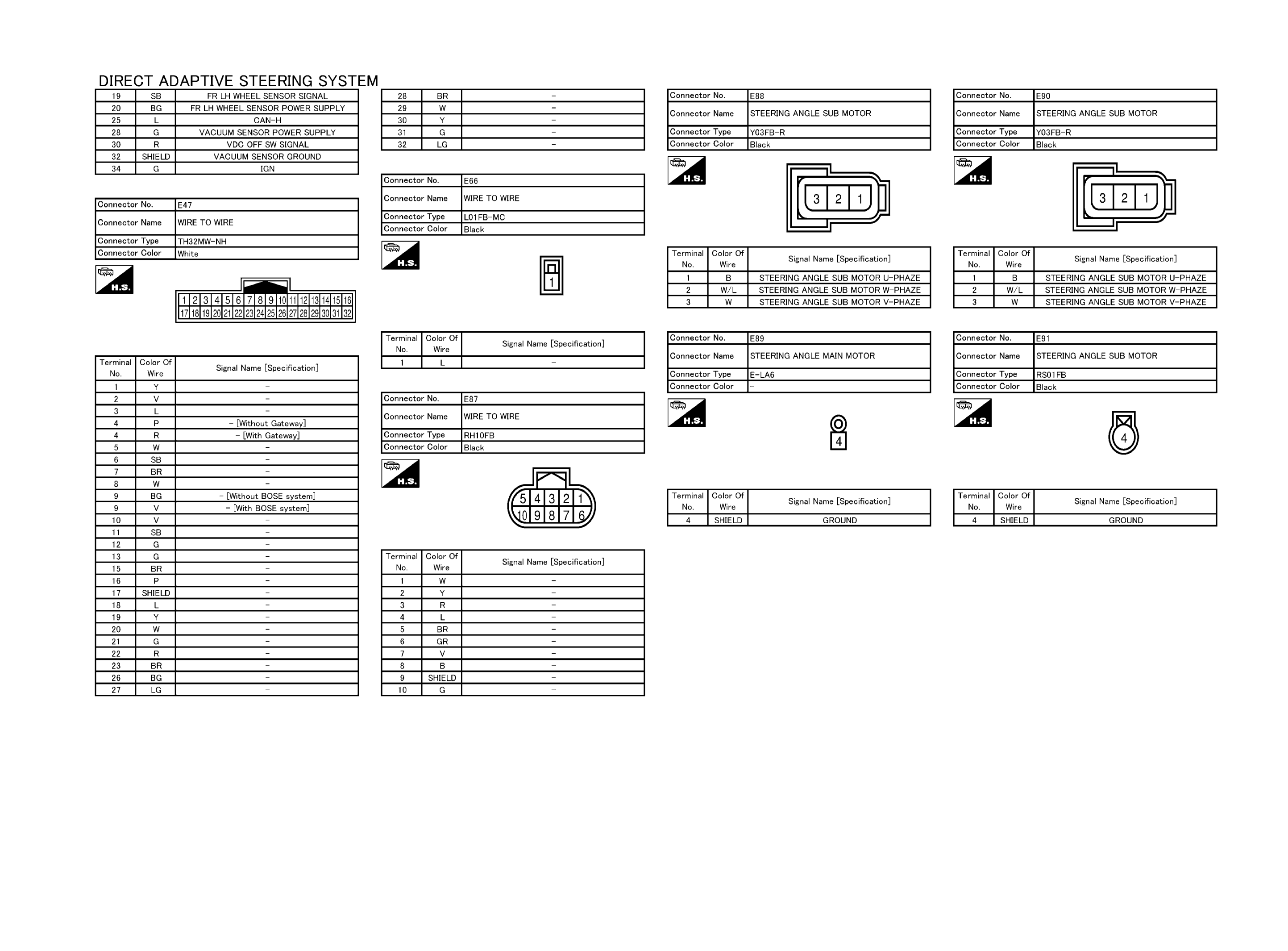

GNSJRGWC4456GB-456

Courtesy of NISSAN NORTH AMERICA, INC.

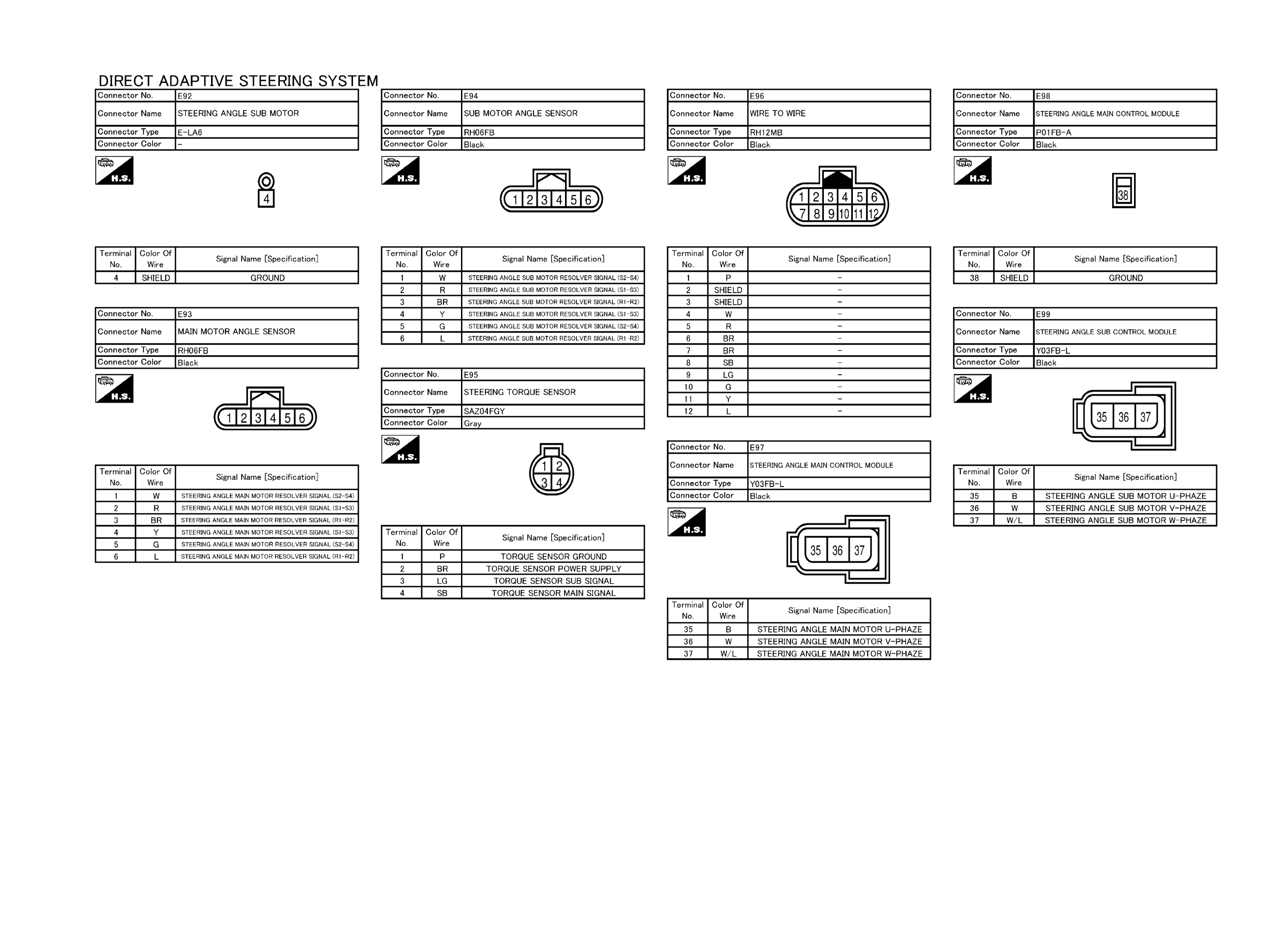

GNSJRGWC4457GB-457

Courtesy of NISSAN NORTH AMERICA, INC.

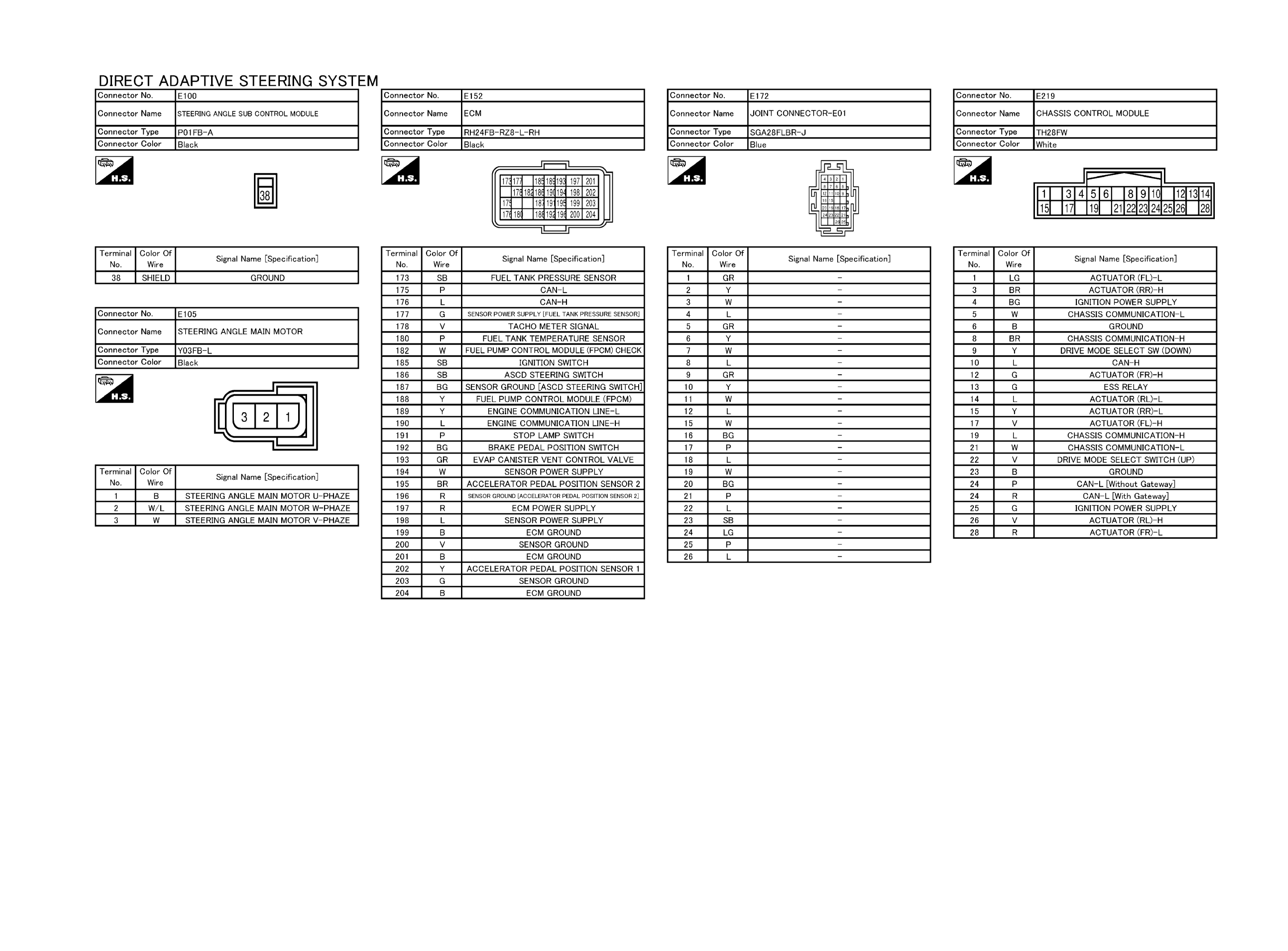

GNSJRGWC4458GB-458

Courtesy of NISSAN NORTH AMERICA, INC.

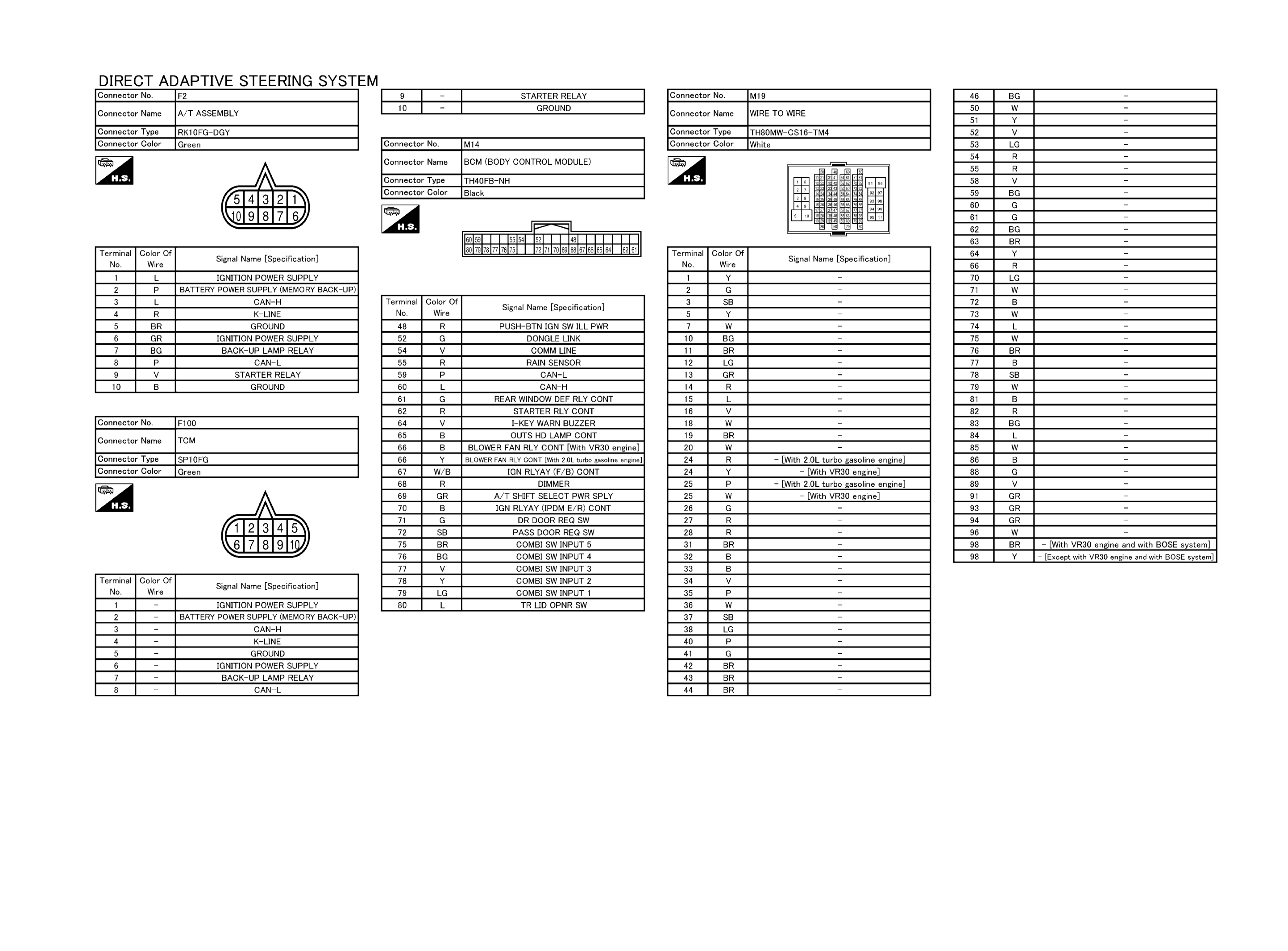

GNSJRGWC4459GB-459

Courtesy of NISSAN NORTH AMERICA, INC.

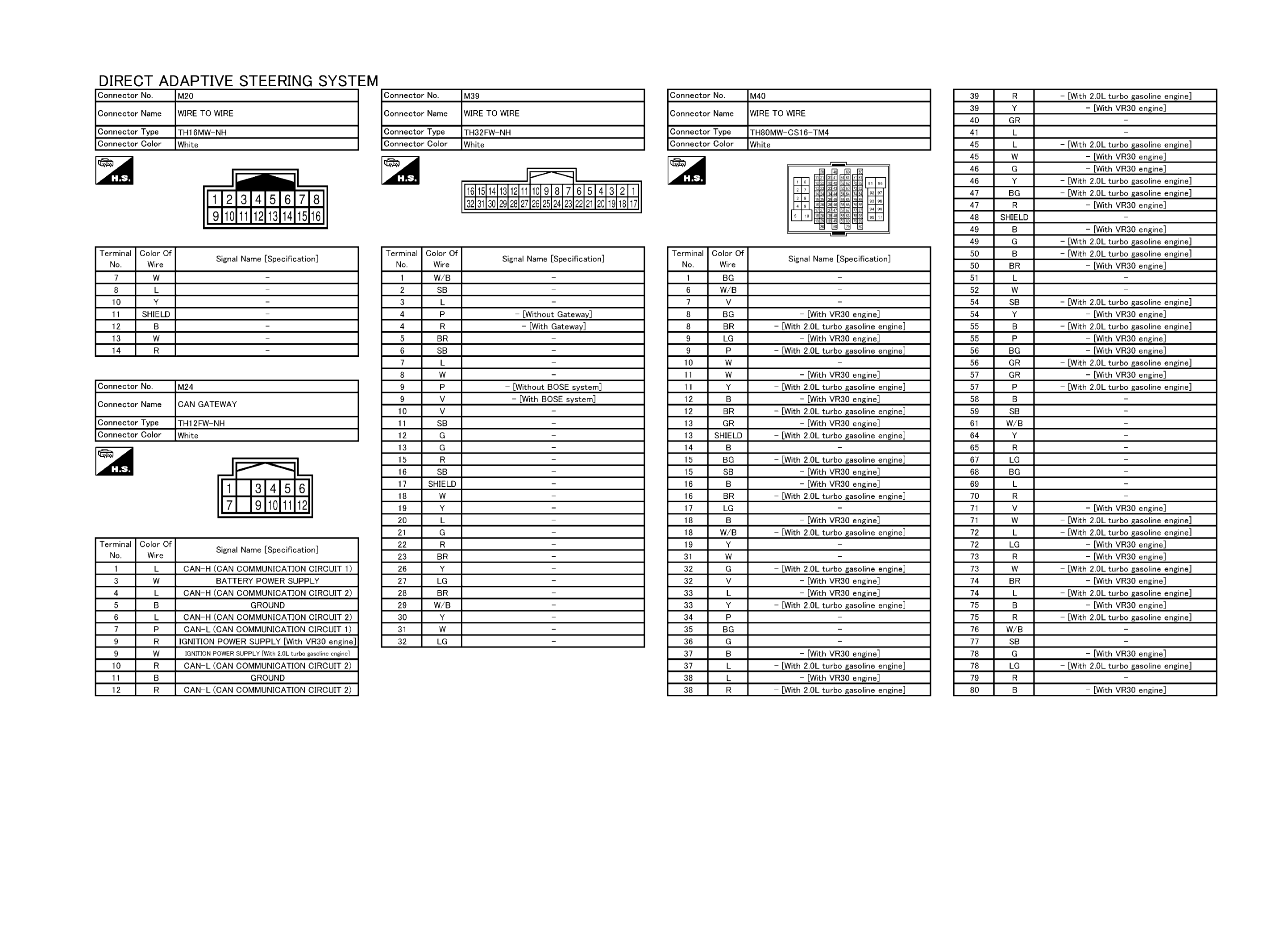

GNSJRGWC4460GB-460

Courtesy of NISSAN NORTH AMERICA, INC.

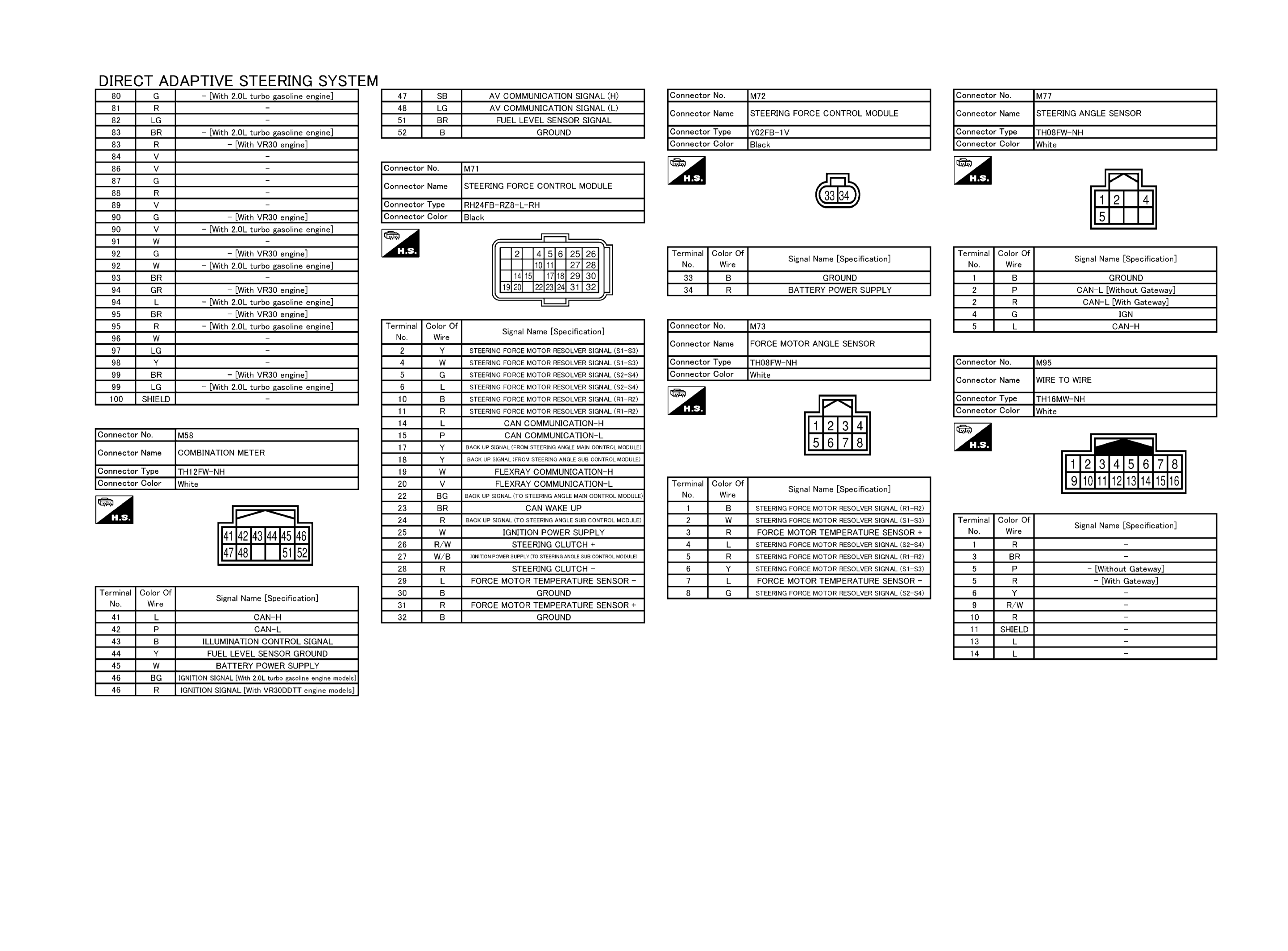

GNSJRGWC4461GB-461

Courtesy of NISSAN NORTH AMERICA, INC.

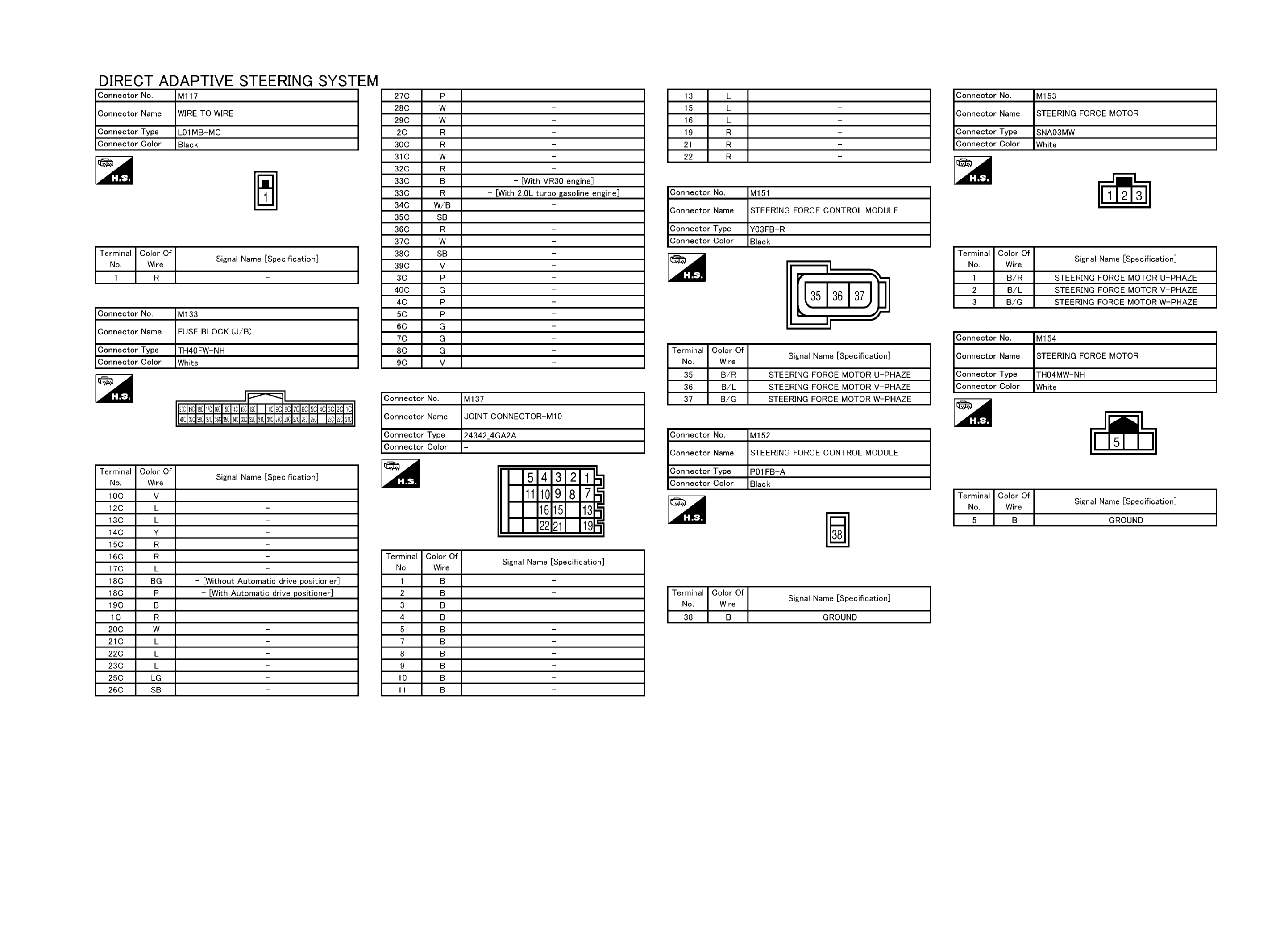

GNSJRGWC4462GB-462

Courtesy of NISSAN NORTH AMERICA, INC.

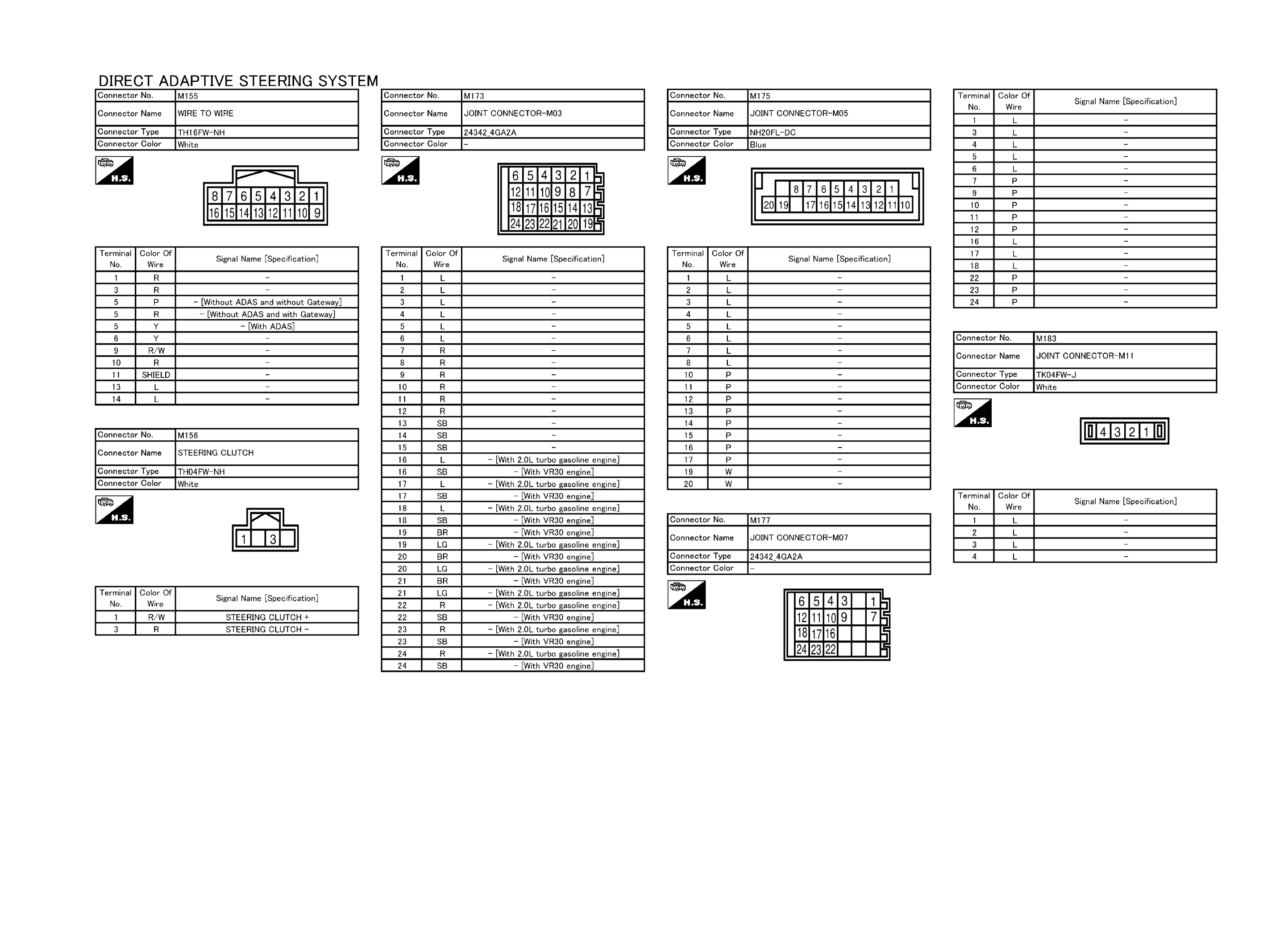

GNSJRGWC4463GB-463

Courtesy of NISSAN NORTH AMERICA, INC.

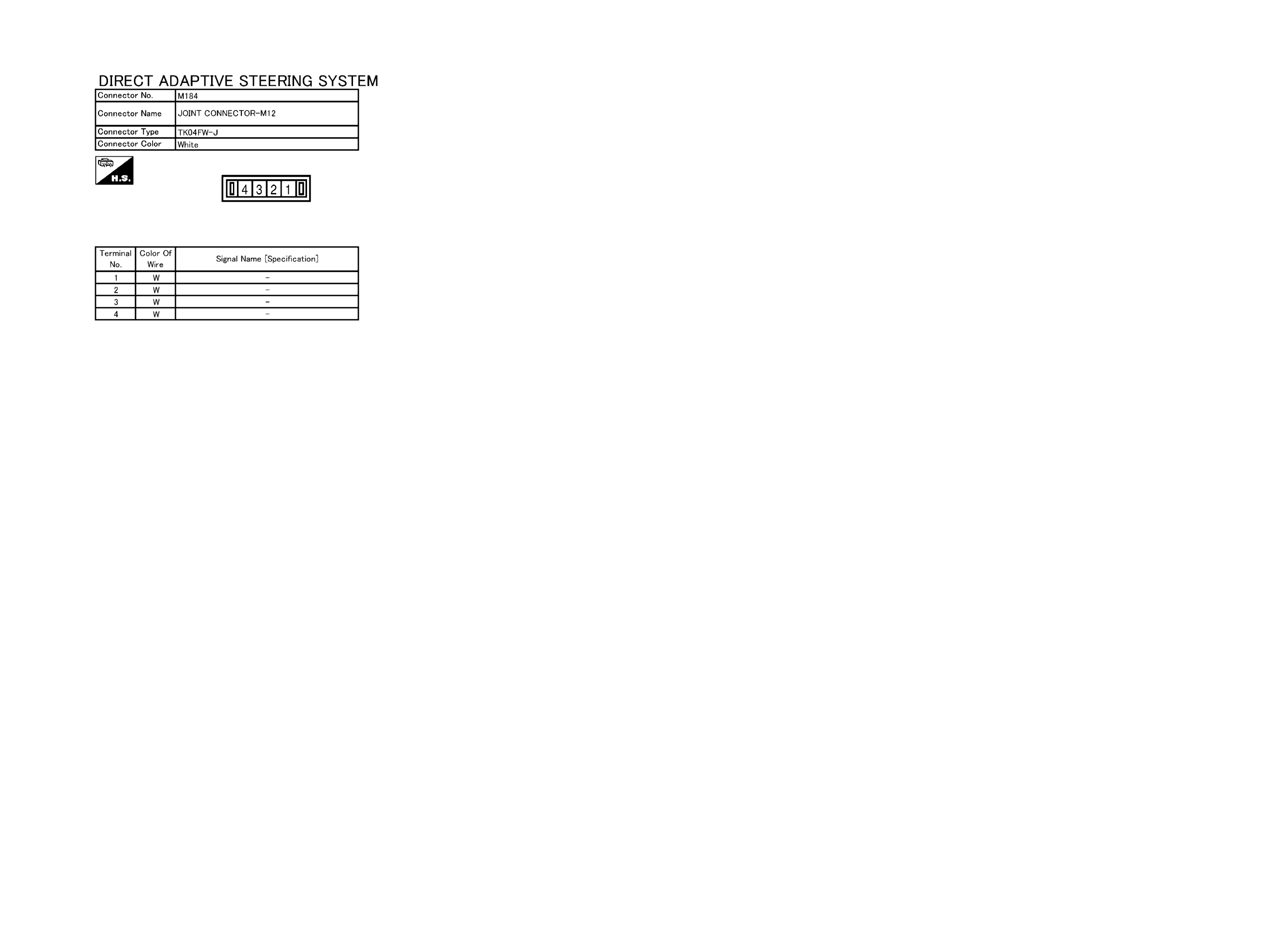

GNSJRGWC4464GB-464

Courtesy of NISSAN NORTH AMERICA, INC.
