Heated Steering Wheel

With the power supply from the heated steering wheel relay, the heated steering wheel controls temperature through the heating element and thermostat built into the steering wheel.

Courtesy of NISSAN NORTH AMERICA, INC.

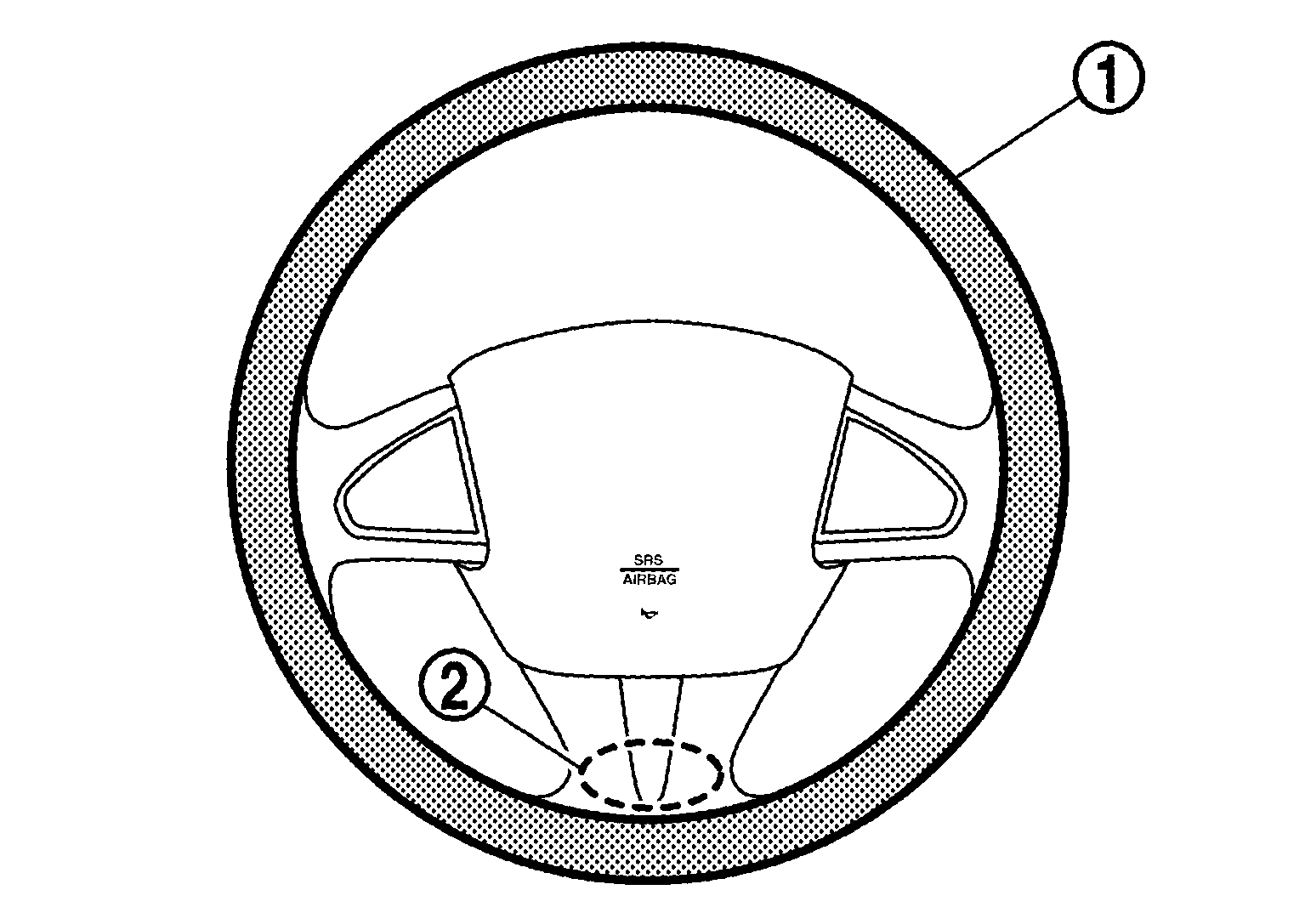

• Heating element: Generates heat by energization.
  NOTE:

  Heating element is located at the back of the steering wheel leather surface.

• Thermostat: Turns ON/OFF power supply according to the specified temperature.
