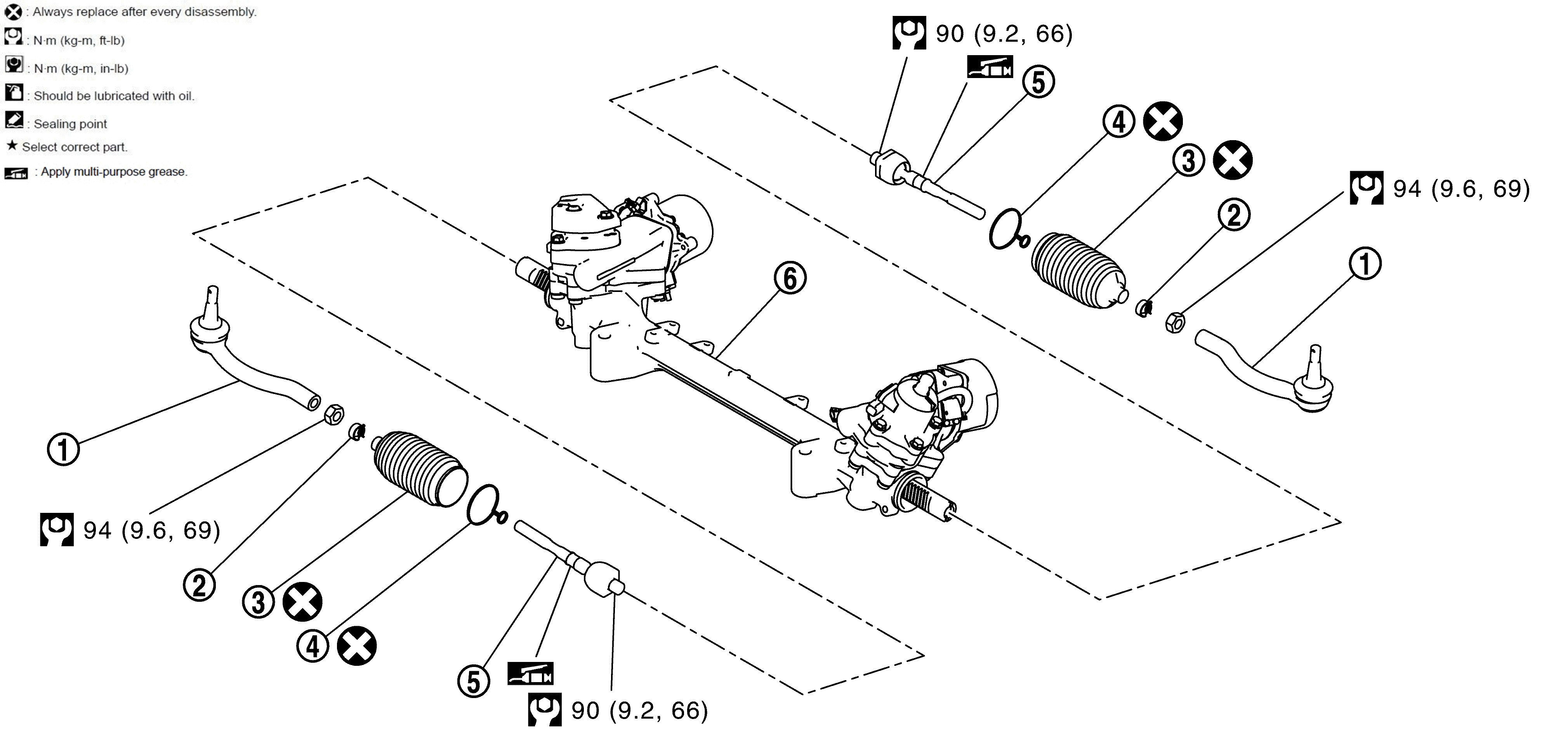

Exploded View: Disassembly

Courtesy of NISSAN NORTH AMERICA, INC.

	Outer socket	Boot clamp	Boot
	Inner socket	Boot clamp (stainless wire)	Gear housing assembly
: Always replace after every disassembly.
: N•m (kg - m, ft - lb)
: Apply multi-purpose grease.
