Exploded View

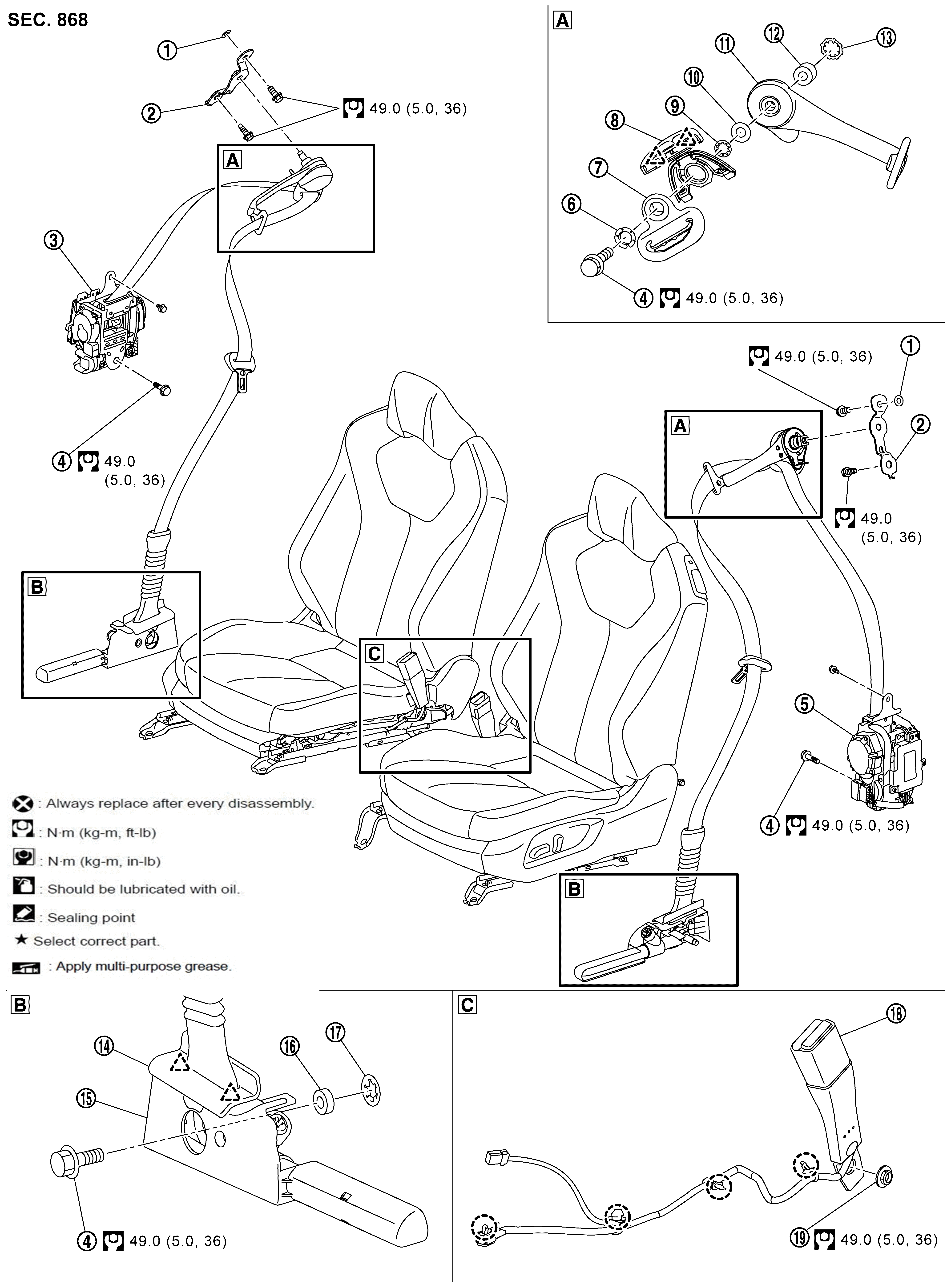

Fig 1: Front Seat Belt With Torque Specifications

GNSJMHIA3527GB-527

Courtesy of NISSAN NORTH AMERICA, INC.

	Washer		Shoulder anchor bracket		Seat belt retractor RH
	Anchor bolt		Seat belt retractor LH		Collar
	Shoulder anchor		Shoulder anchor cover		Locking washer
	Washer		Seat belt extension		Spacer
	Locking washer		Lap pre - tensioner garnish		Lap pre - tensioner
	Spacer		Locking washer		Seat belt buckle
	Anchor nut
	: Clip
	: Pawl
	: N•m (kg-m, ft-lb)
