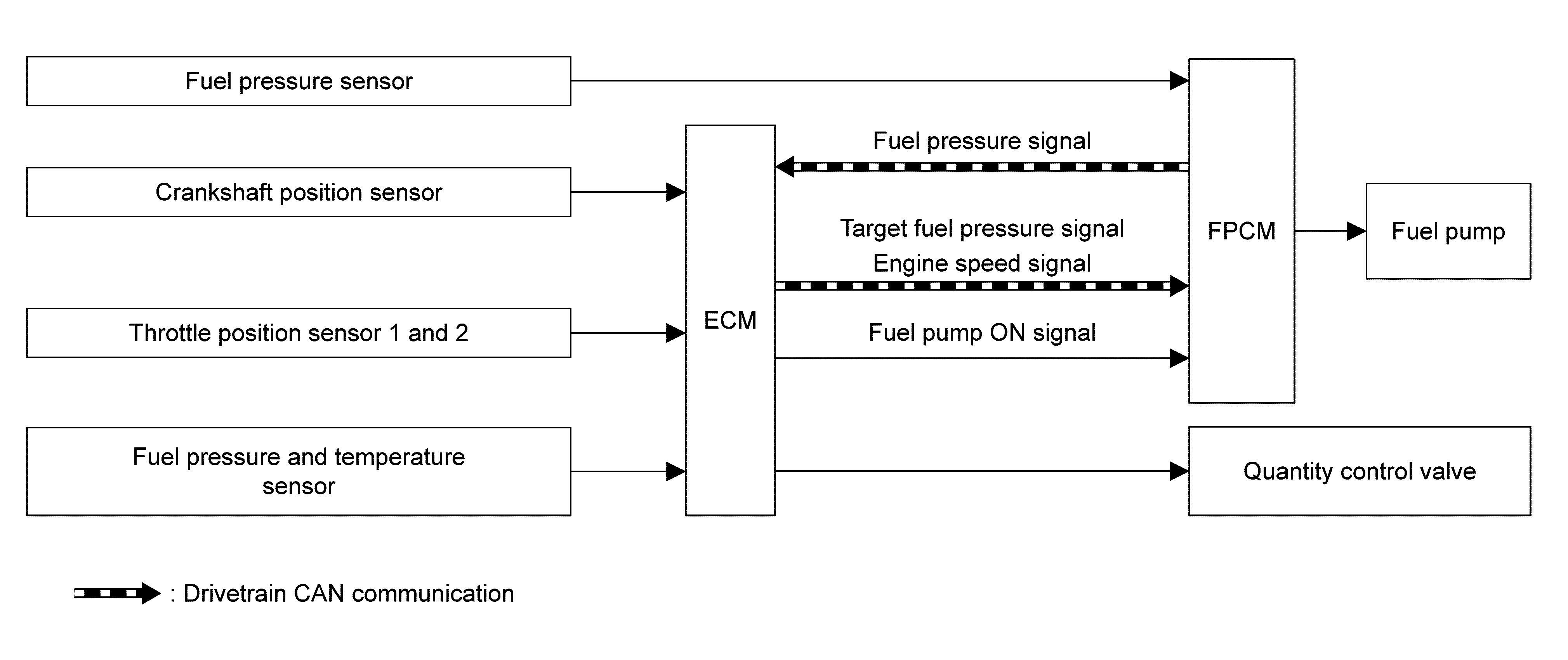

Home >> Infiniti >> 2017 >> Q60 Base, AWD >> Repair and Diagnosis >> Engine Performance >> Testing & Diagnosis >> Engine Control System (Introduction) (2.0L Turbo) >> System Description >> System >> Fuel Supply Control >> System Description >> System Diagram
