Quick Connector

CAUTION:
  • After connecting fuel tube quick connectors, check quick connectors are secure.
    • Type A
      G05369362Courtesy of NISSAN NORTH AMERICA, INC.
      WHITE-1 : Quick Connector
      WHITE-2 : Retainer
      MARU-A-W : Hard Tube (Or The Equivalent)
      MARU-B-W : Connection (Cross-Section)
      MARU-C-W : Resin Tube
      MARU-D-W : To Under Floor Fuel Line
      MARU-E-W : To Fuel Tank
      MARU-F-W : Tab
      MARU-G-W : Disconnection

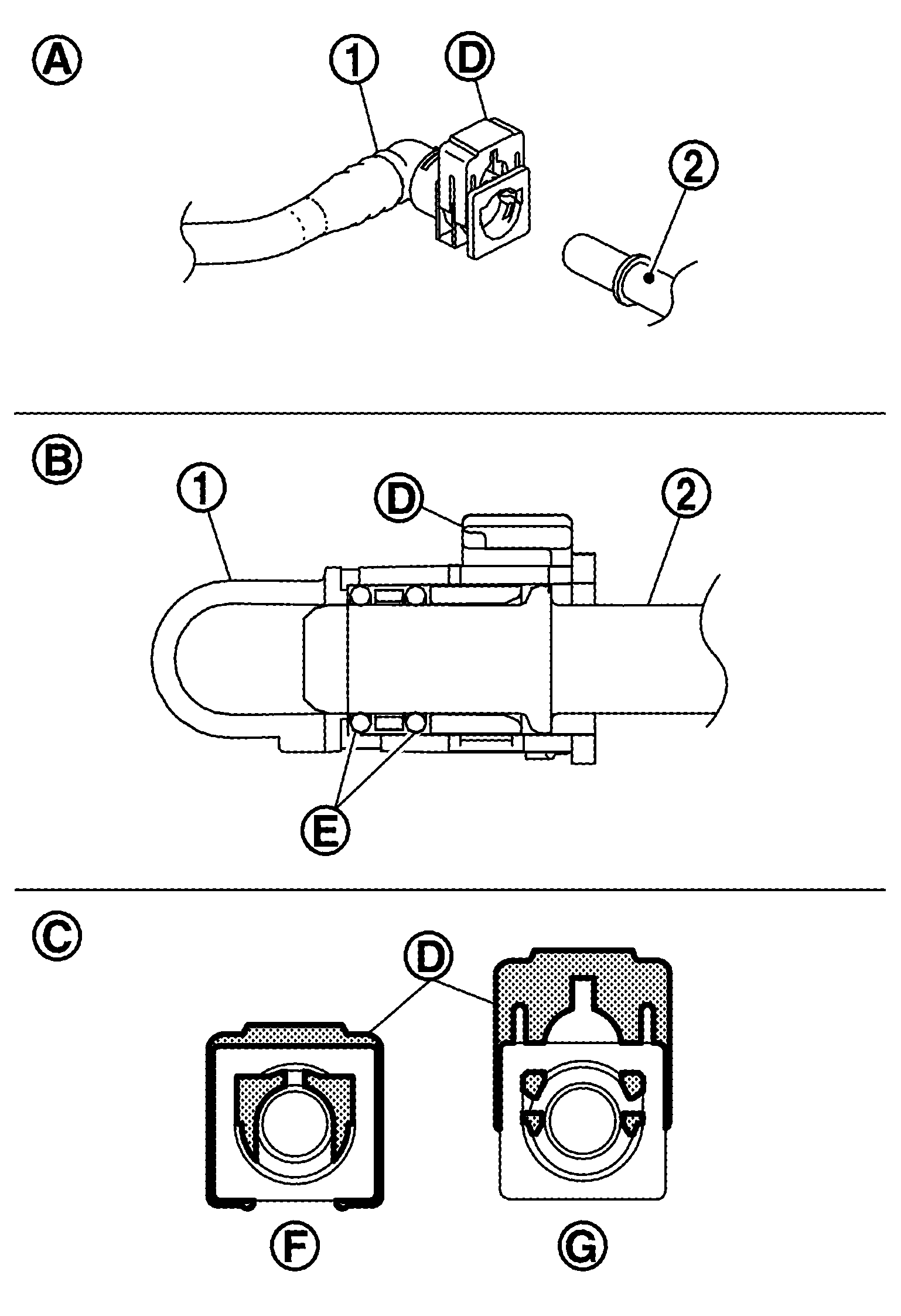

    • Type B
      GNSJSBIA5125ZZ-125Courtesy of NISSAN NORTH AMERICA, INC.
      WHITE-1 : Quick Connector
      WHITE-2 : Hard Tube (Or The Equivalent)
      MARU-A-W : Disconnection
      MARU-B-W : Connection (Cross-Section)
      MARU-C-W : Condition
      MARU-D-W : Retainer
      MARU-E-W : O-Ring
      MARU-F-W : Lock
      MARU-G-W : Unlock
  • Ensure that connector and resin tube never contact any adjacent parts.
