Disassembly And Assembly Of Center Console Assembly: Disassembly

  1. Remove console lid fixing screws MARU-A-W .

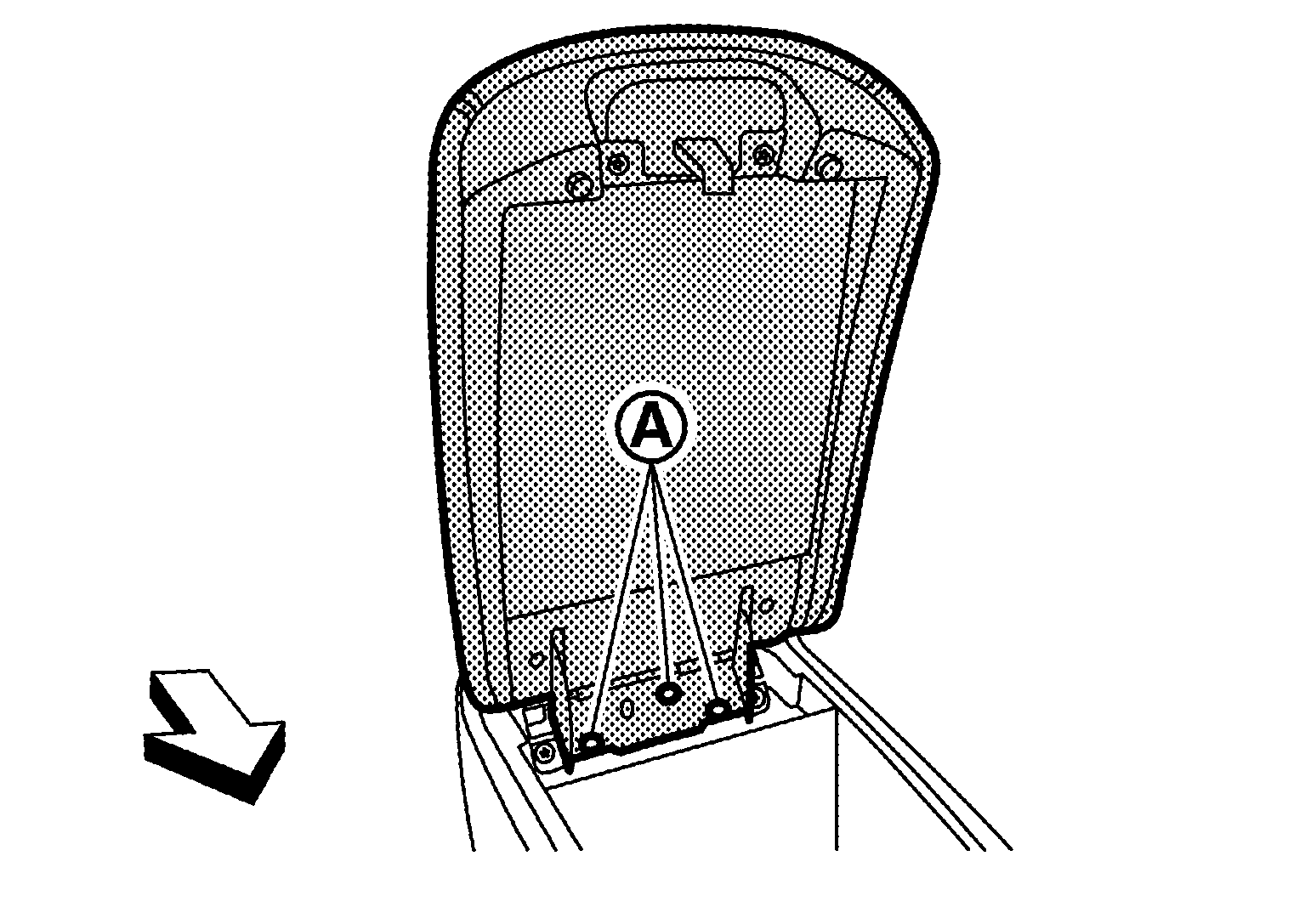

    GNSJMJIA8761ZZ-761Courtesy of NISSAN NORTH AMERICA, INC.
    ARROW : Vehicle front
  2. Remove console reinforcement WHITE-1 fixing screws MARU-A-W .

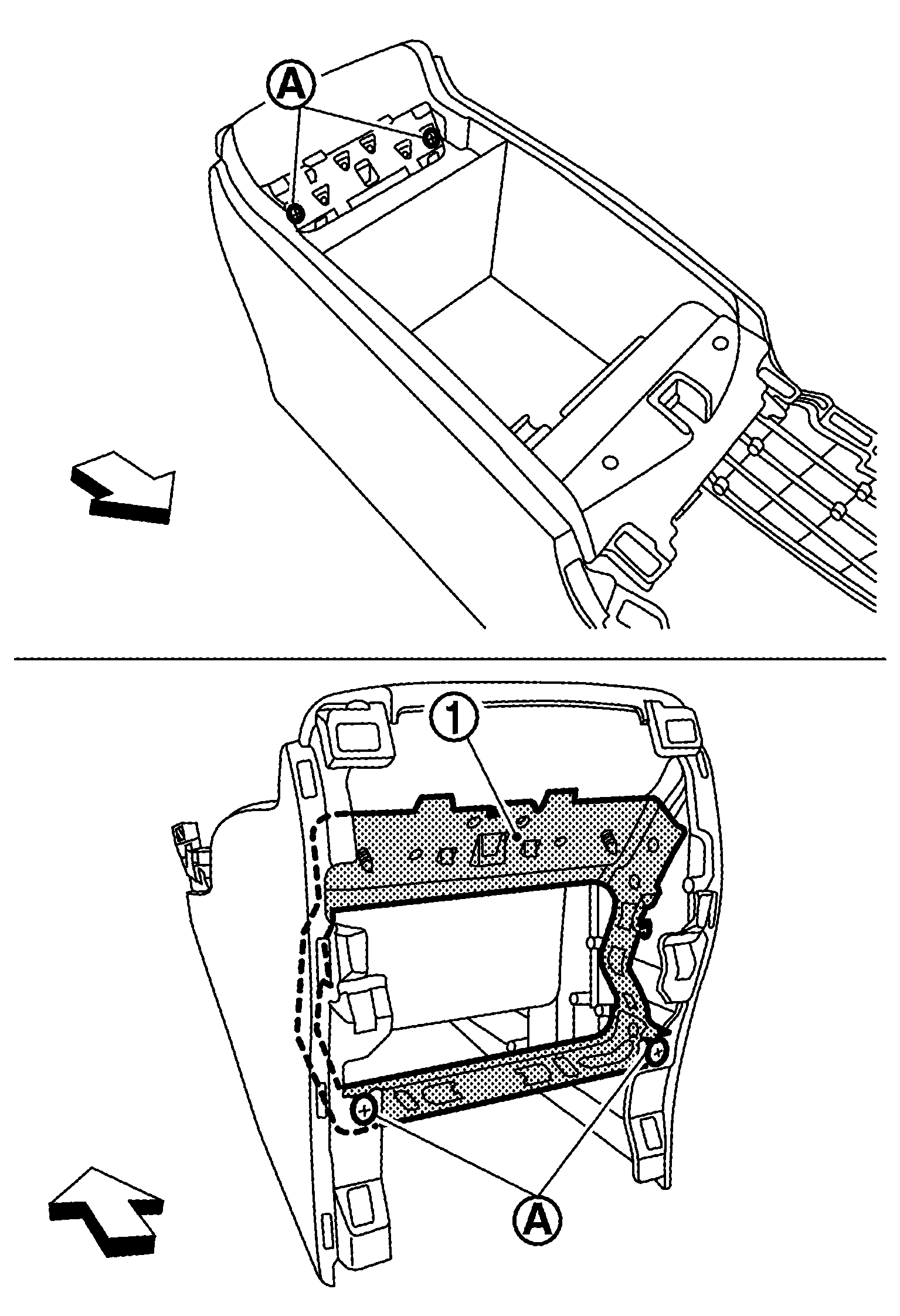

    GNSJMJIA8762ZZ-762Courtesy of NISSAN NORTH AMERICA, INC.
    ARROW : Vehicle front
  3. Disconnect harness connector fixing clip and remove console bracket fixing screws, and then remove console bracket from console box assembly.
