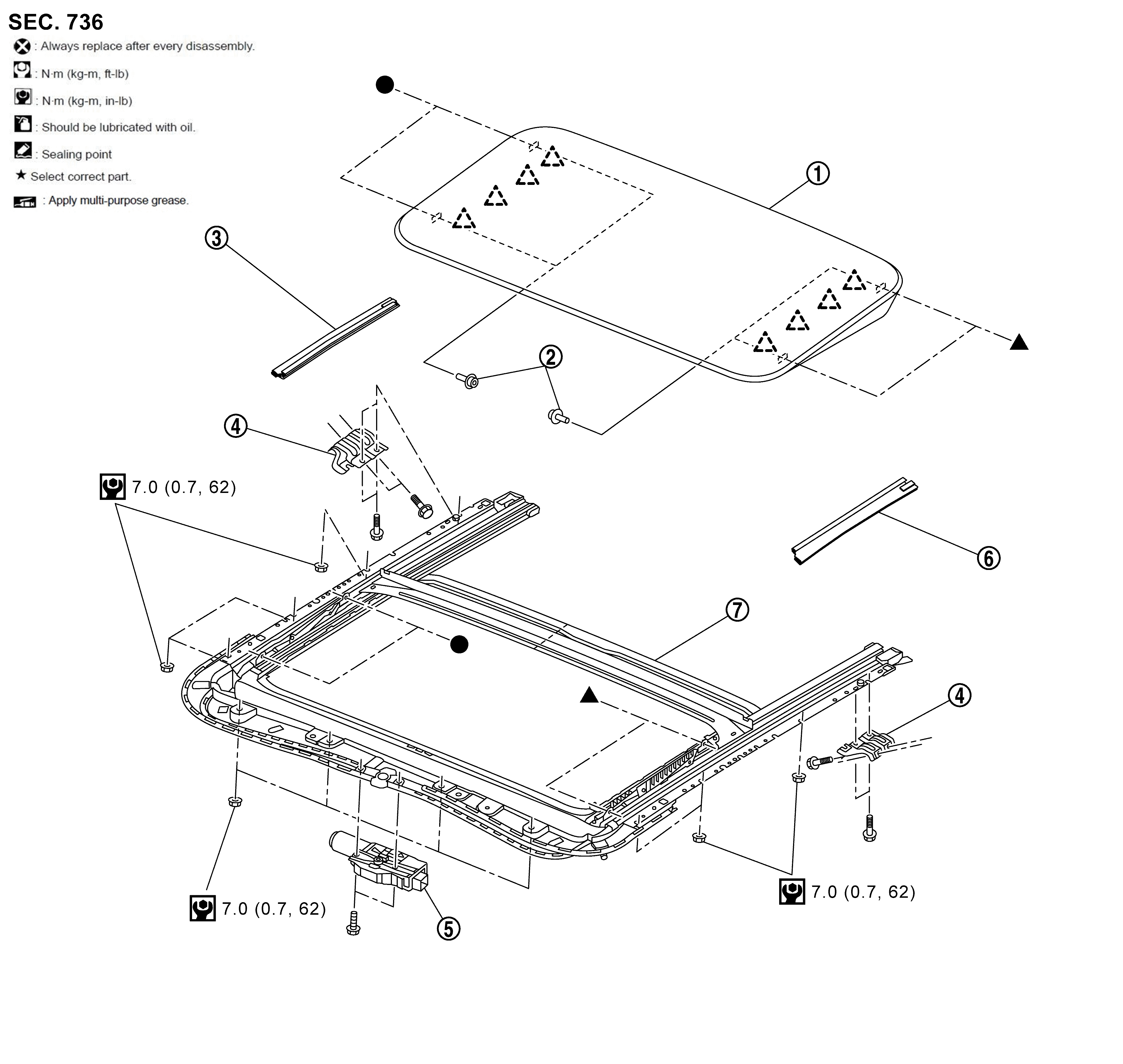

Exploded View With Torque Specifications: Removal

Courtesy of NISSAN NORTH AMERICA, INC.

	Glass Lid		TORX Bolt		Side Trim RH
	Sunroof Bracket		Sunroof Motor Assembly		Side Trim LH
	Sunroof Unit Assembly
	: Pawl
	: N•m (kg - m, in - lb)
, : Indicates that the part is connected at points with same symbol in actual vehicle.
