Exploded View With Torque Specifications: Disassembly

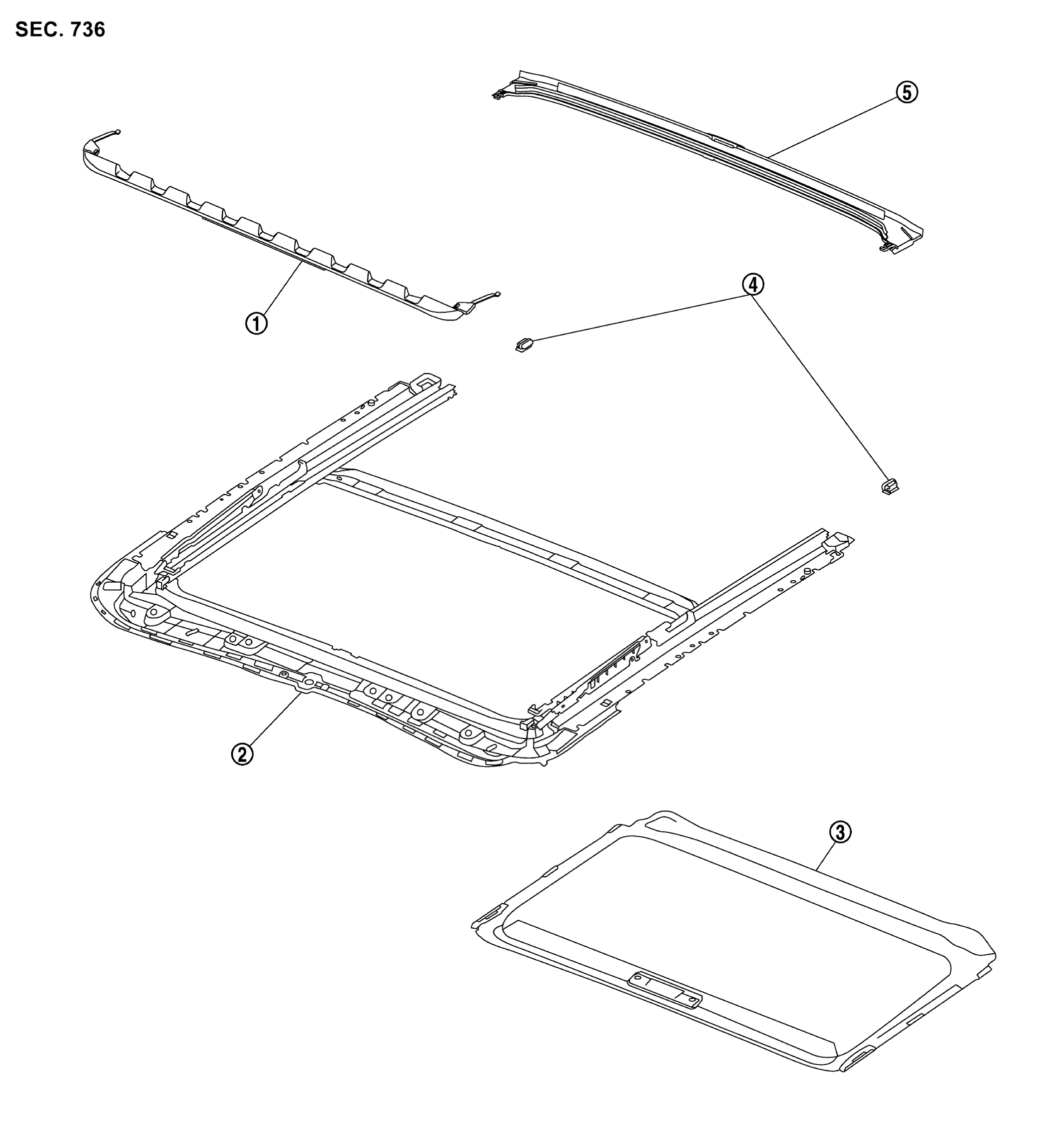

GNSJMKIB6932ZZ-932Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Wind Deflector WHITE-2 Sunroof Frame Assembly WHITE-3 Sunshade
WHITE-4 Sunshade Stopper WHITE-5 Rear Drain Assembly
