How To Erase On Board Self-Diagnosis

  1. Turn the Ignition Switch OFF.
  2. Start the engine, and then start the on board self-diagnosis.

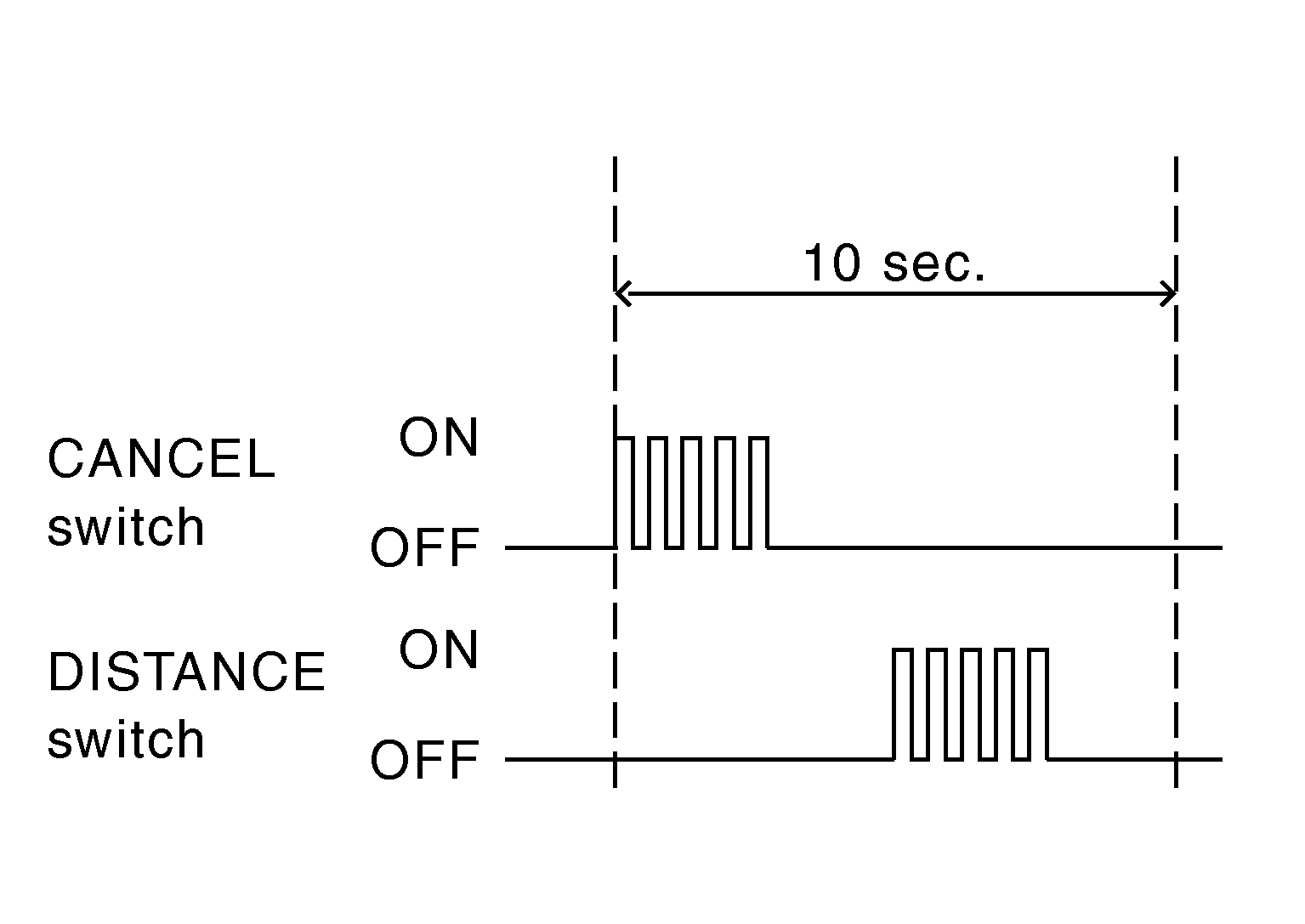

  3. Press the CANCEL Switch 5 times, and then press the DISTANCE Switch 5 times under the condition that the on board self-diagnosis starts.
    G04131896Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE:
    • Complete the operation within 10 seconds after pressing the CANCEL Switch first.
    • If the operation is not completed within 10 seconds, repeat the procedure from step 1.
  4. DTC 55 is displayed after erasing.
    NOTE:

    DTCs for existing malfunction can not be erased.

  5. Turn Ignition Switch OFF, and finish the diagnosis.
