Component Inspection (Without ICC)

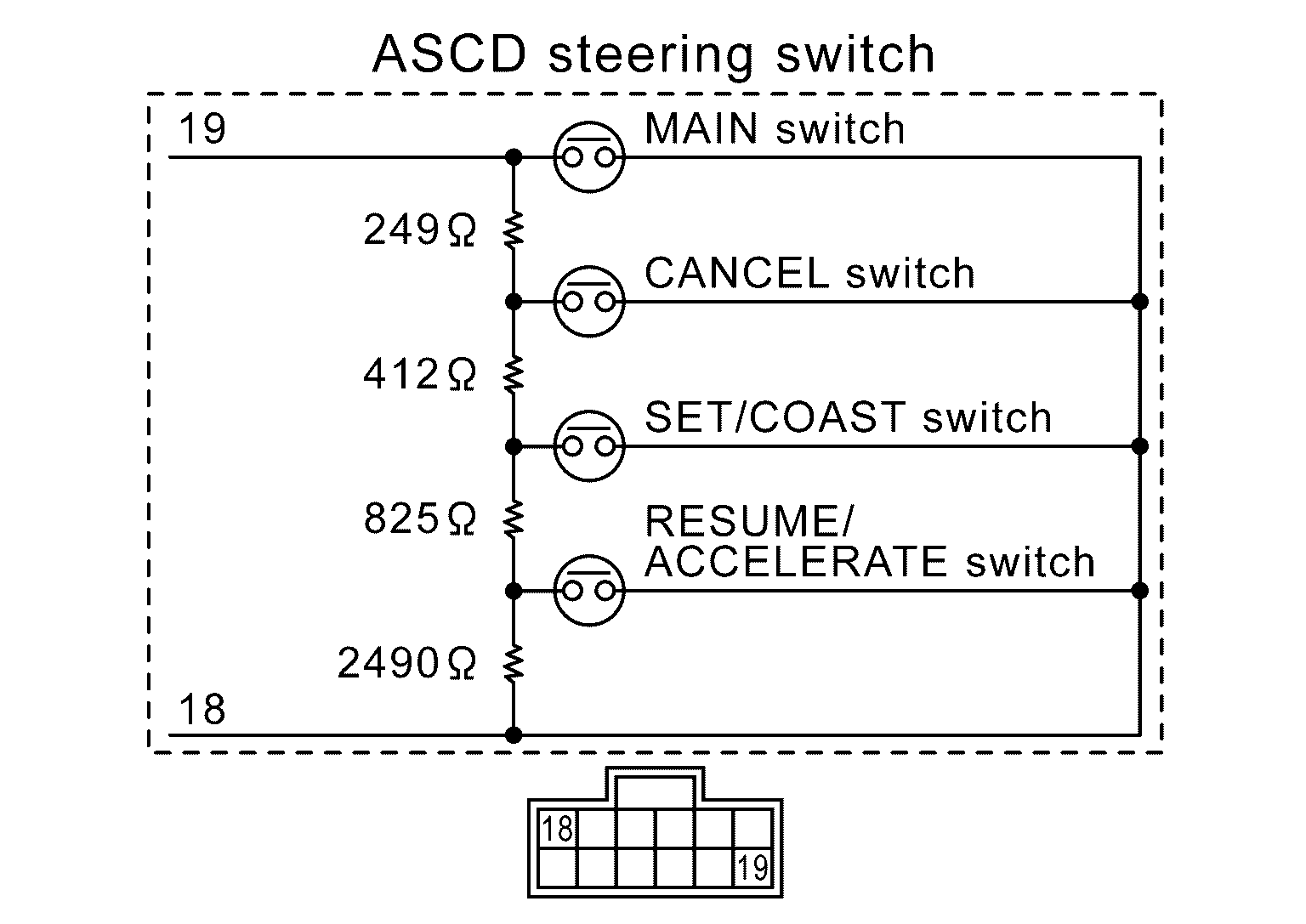

CHECK ASCD STEERING SWITCH

Check resistance between ASCD steering Switch terminals.

Courtesy of NISSAN NORTH AMERICA, INC.

Terminal		Switch operation	Resistance [Ω]
19	18	When pressing MAIN Switch	Approx. 0
		When pressing CANCEL Switch	Approx. 249
		When pressing SET/COAST Switch	Approx. 661
		When pressing RESUME/ACCELERATE Switch	Approx. 1486
		When all Switches are not pressed	Approx. 3976

Is the inspection result normal?

YES

INSPECTION END

Replace the ASCD steering Switch.
