Component Inspection (With ICC)

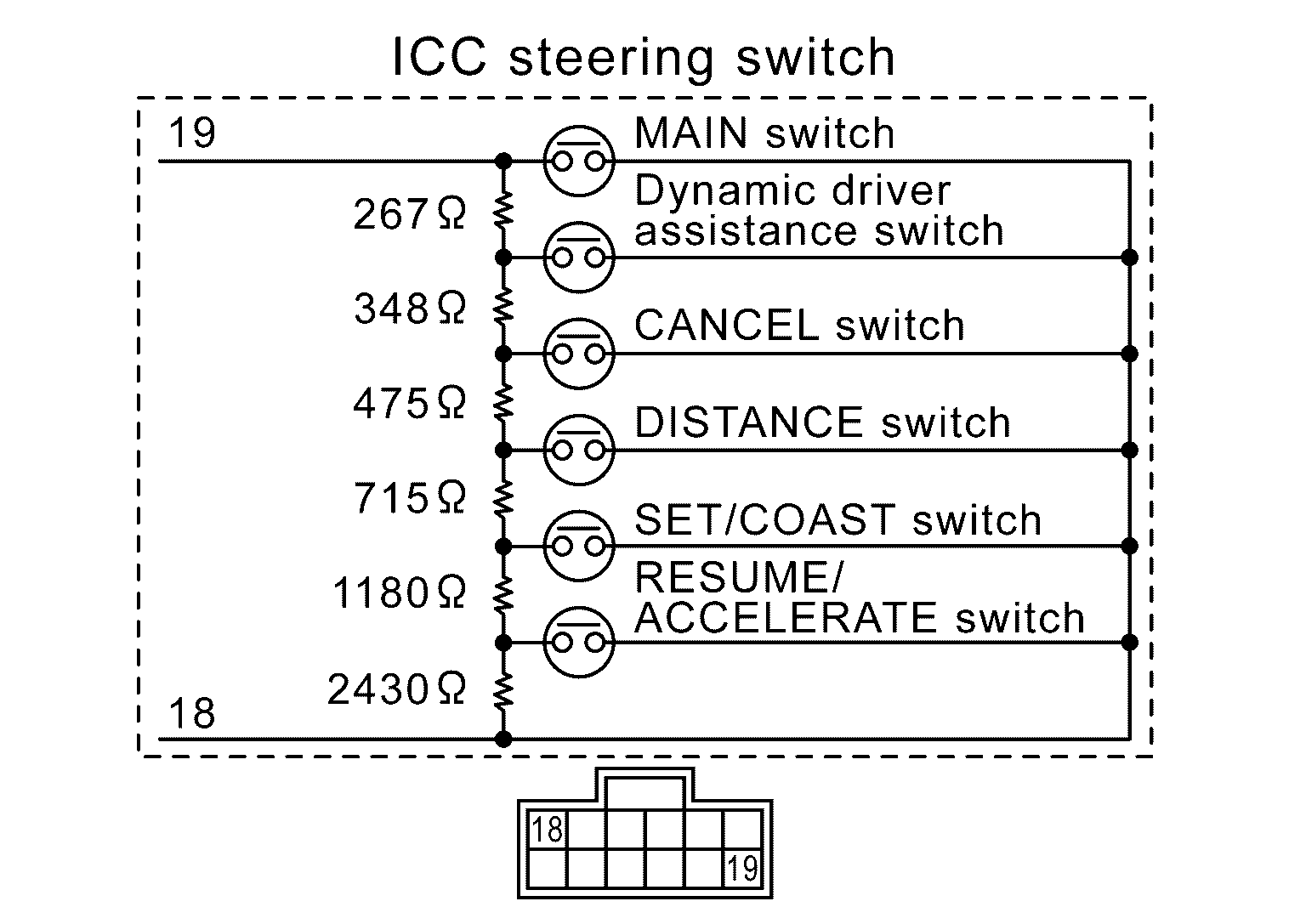

CHECK ICC STEERING SWITCH

Check resistance between ICC steering Switch terminals.

Courtesy of NISSAN NORTH AMERICA, INC.

Terminal		Switch operation	Resistance [Ω]
19	18	When pressing MAIN Switch	Approx. 0
		When pressing dynamic driver assistance Switch	Approx. 267
		When pressing CANCEL Switch	Approx. 615
		When pressing DISTANCE Switch	Approx. 1090
		When pressing SET/COAST Switch	Approx. 1805
		When pressing RESUME/ACCELERATE Switch	Approx. 2985
		When all Switches are not pressed	Approx. 5415

Is the inspection result normal?

YES

INSPECTION END

Replace the ICC steering Switch.
