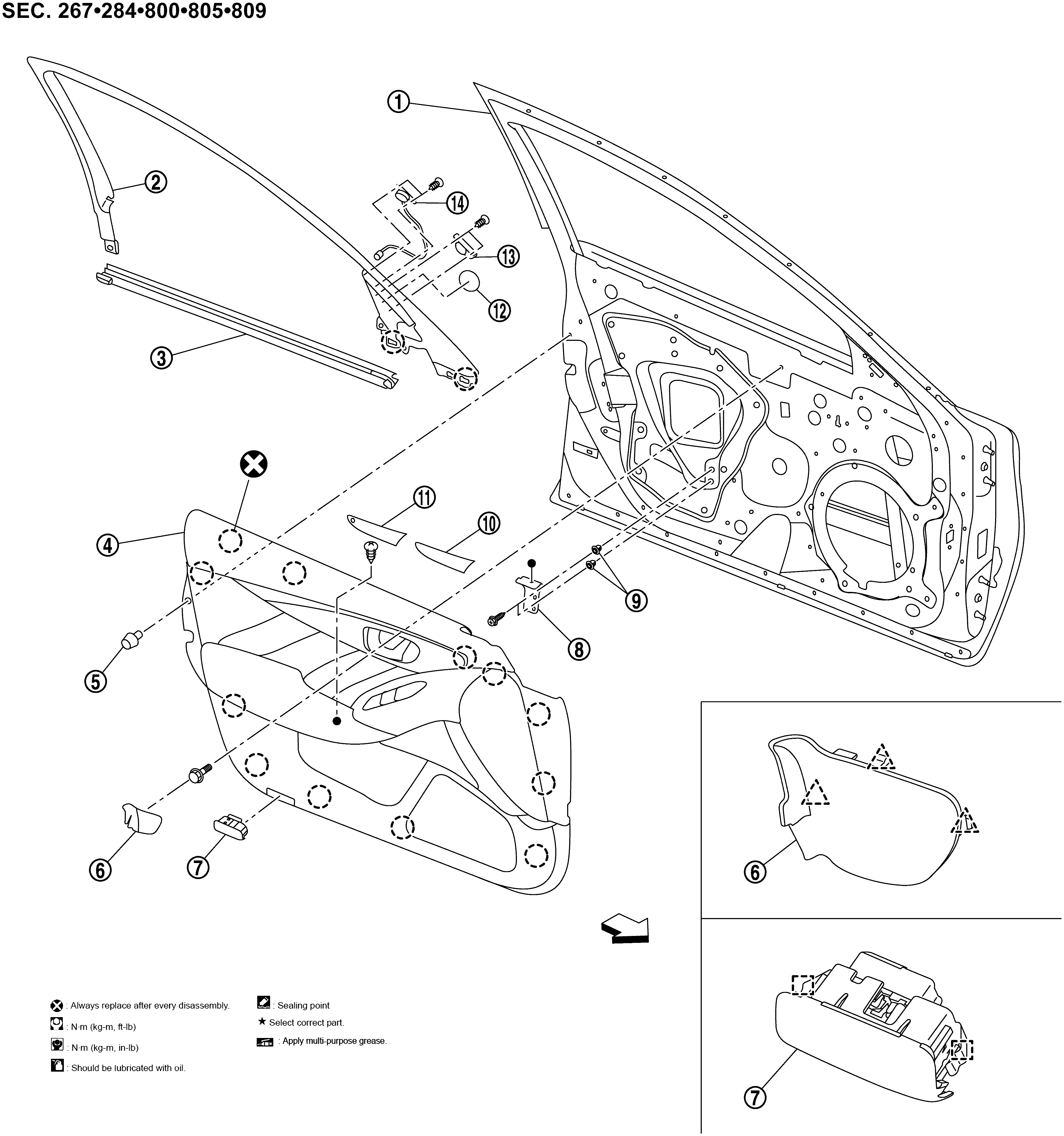

Exploded View
WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Front door panel |
|
Front door sash inner cover |
|
Front door inside seal |
|
|
Front door finisher |
|
Bumper rubber |
|
Inside handle escutcheon |
|
|
Step lamp |
|
Pull handle bracket |
|
Grommet |
|
|
Pull handle cap *1 |
|
Pull handle cap *2 |
|
Hole cover (if equipped) |
|
|
Tweeter |
|
Blind Spot Warning/Blind Spot Intervention indicator *3 |
||
|
|
: Clip |
||||
|
|
: Pawl |
||||
|
|
: Metal clip |
||||
|
|
: Vehicle front |
||||
|
|
: Always replace after every disassembly |
||||
|
|
|||||
*1 : Without pull handle illumination.
*2 : With pull handle illumination.
*3 : This part may not be equipped on some vehicles depending on vehicle specifications.
