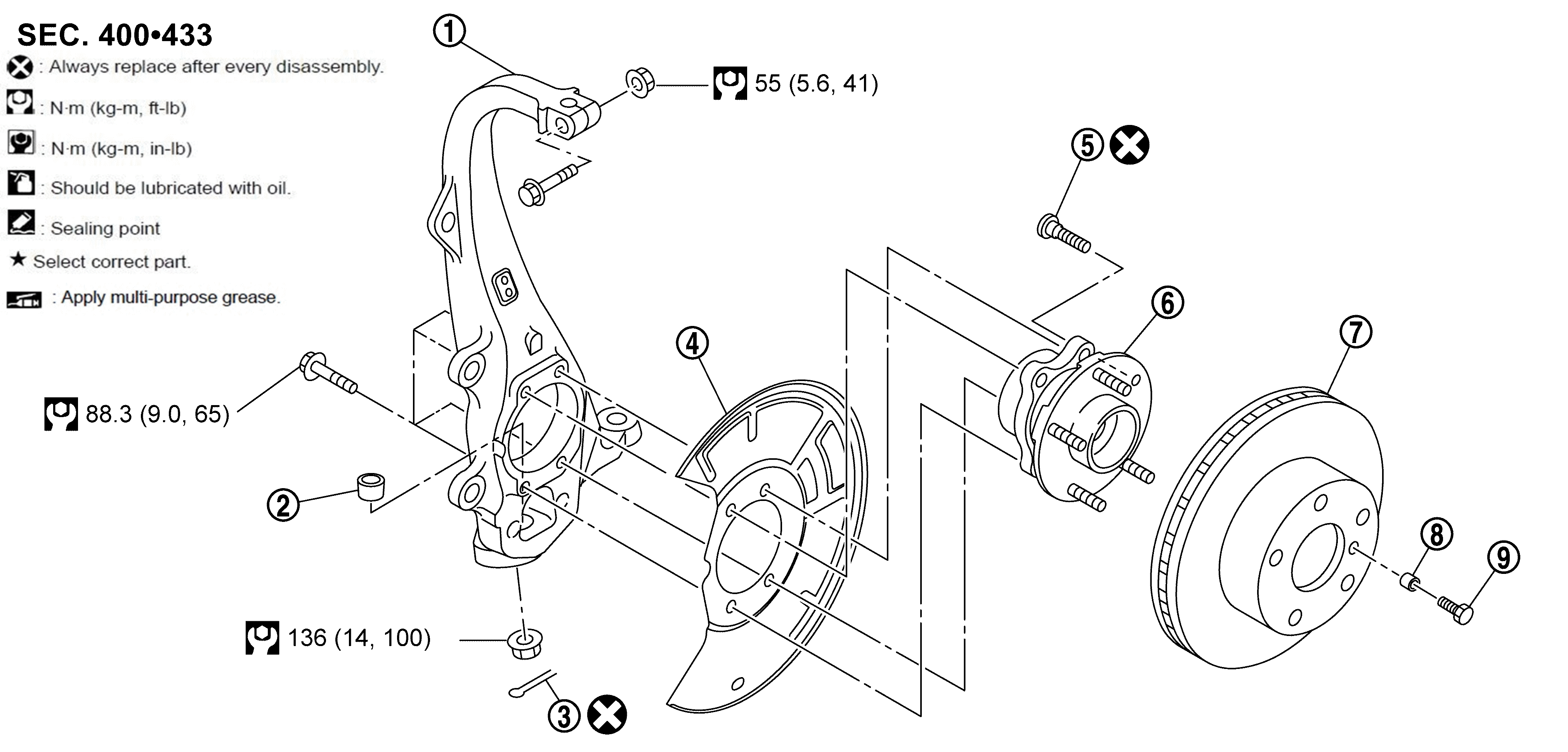

Exploded View
WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
|
Steering knuckle
|
|
Ball seat
|
|
Cotter pin
|
|
|
Splash guard
|
|
Hub bolt
|
|
Wheel hub and bearing assembly
|
|
|
Disc rotor
|
|
Spacer*
|
|
Special pin*
|
|
: N.m (kg-m, ft-lb)
|
|
: Always replace after every disassembly.
|
*: Front and rear wheel size different models
