Exploded View

WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

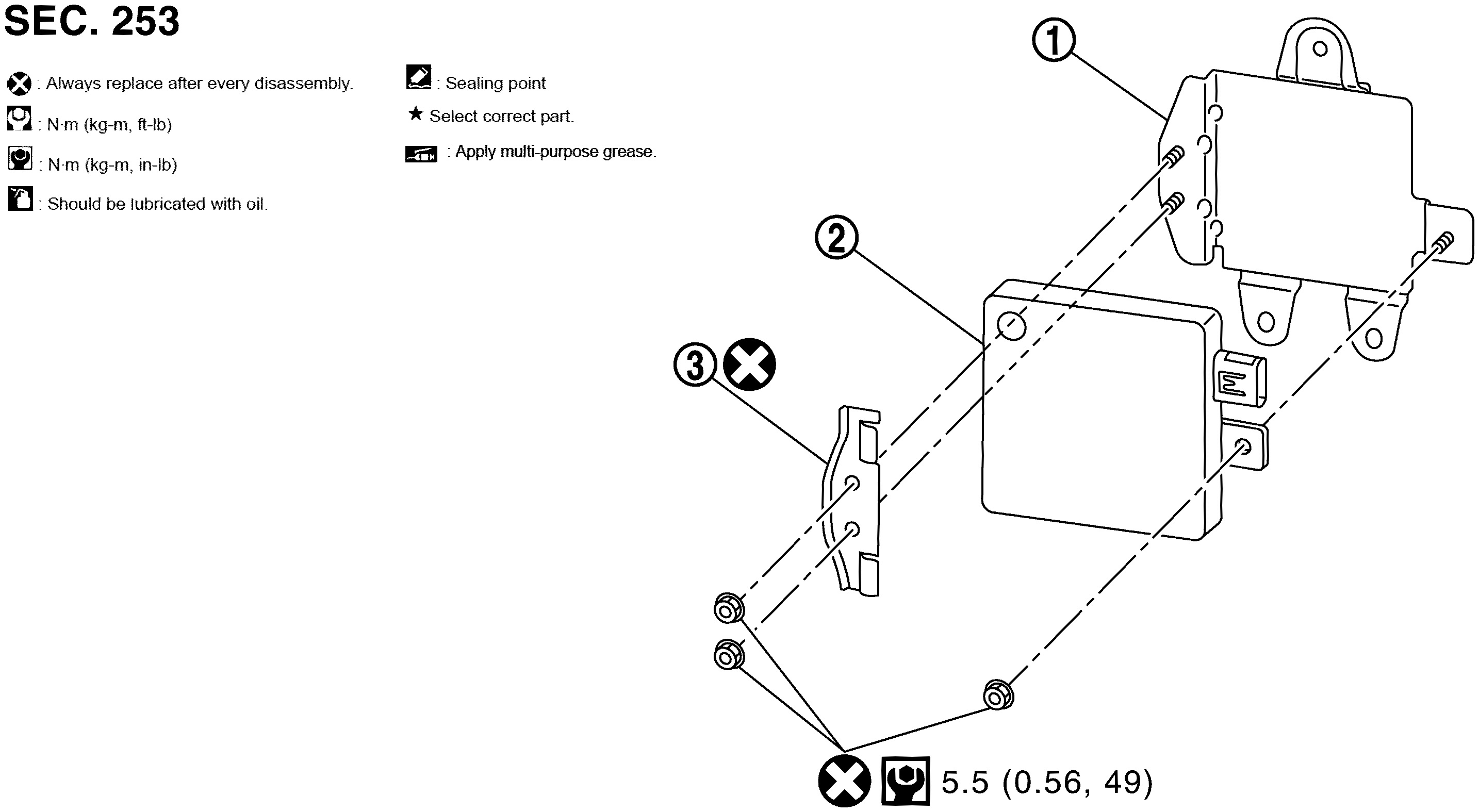

Fig 1: Exploded View Of Side Radar With Torque Specification

Courtesy of NISSAN NORTH AMERICA, INC.

Bracket	Side radar	Bracket
: N.m (kg-m, in-lb)
: Always replace after every disassembly.
