Precaution For Side Radar
WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
- Never use the side radar removed from vehicle. Never disassemble or remodel.
- Never install a part that the radar irradiation range
is interfered with.

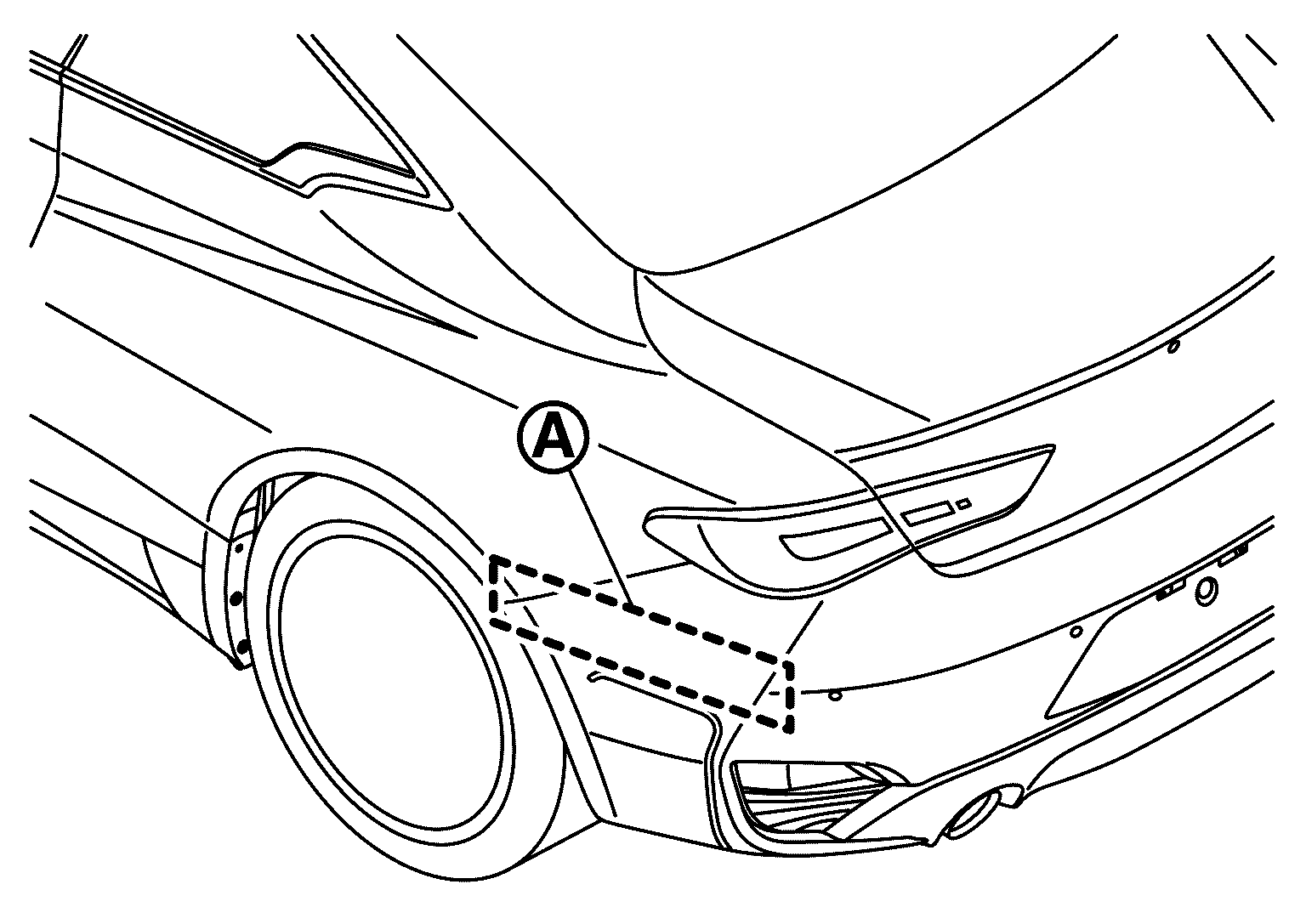

NOTE: This is radar irradiation range of side radar LH. It of side radar RH is symmetrically opposite of LH. - If a part interferes with the radar irradiation range, then the following conditions are caused:
- The condition of side radar becomes equal to an unclean condition, and this makes it difficult to measure the distance from a vehicle in the adjacent lane.
- When it is impossible to measure the distance from a vehicle in the adjacent lane, the following functions stop and DTC is detected.
- Blind Spot Warning (BSW)
- Blind Spot Intervention
- Back-up Collision Intervention (BCI)
