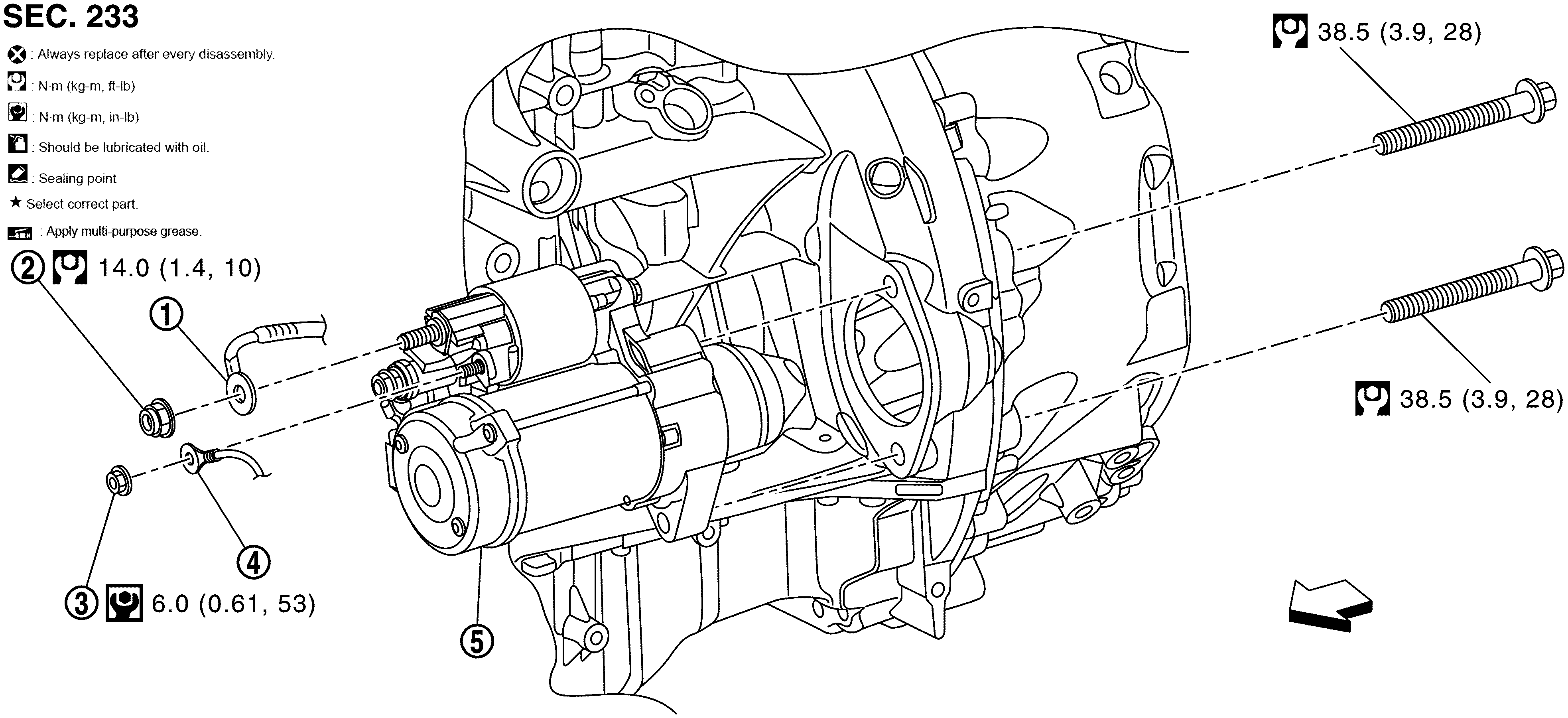

Exploded View: Removal
WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
|
"B" terminal harness
|
|
"B" terminal nut
|
|
"S" terminal nut
|
|
|
"S" terminal harness
|
|
Starter motor
|
|
|
Vehicle front
|
|
|
: N.m (kg-m, in-lb)
|
|
|
: N.m (kg-m, ft-lb)
|
