Exploded View

WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

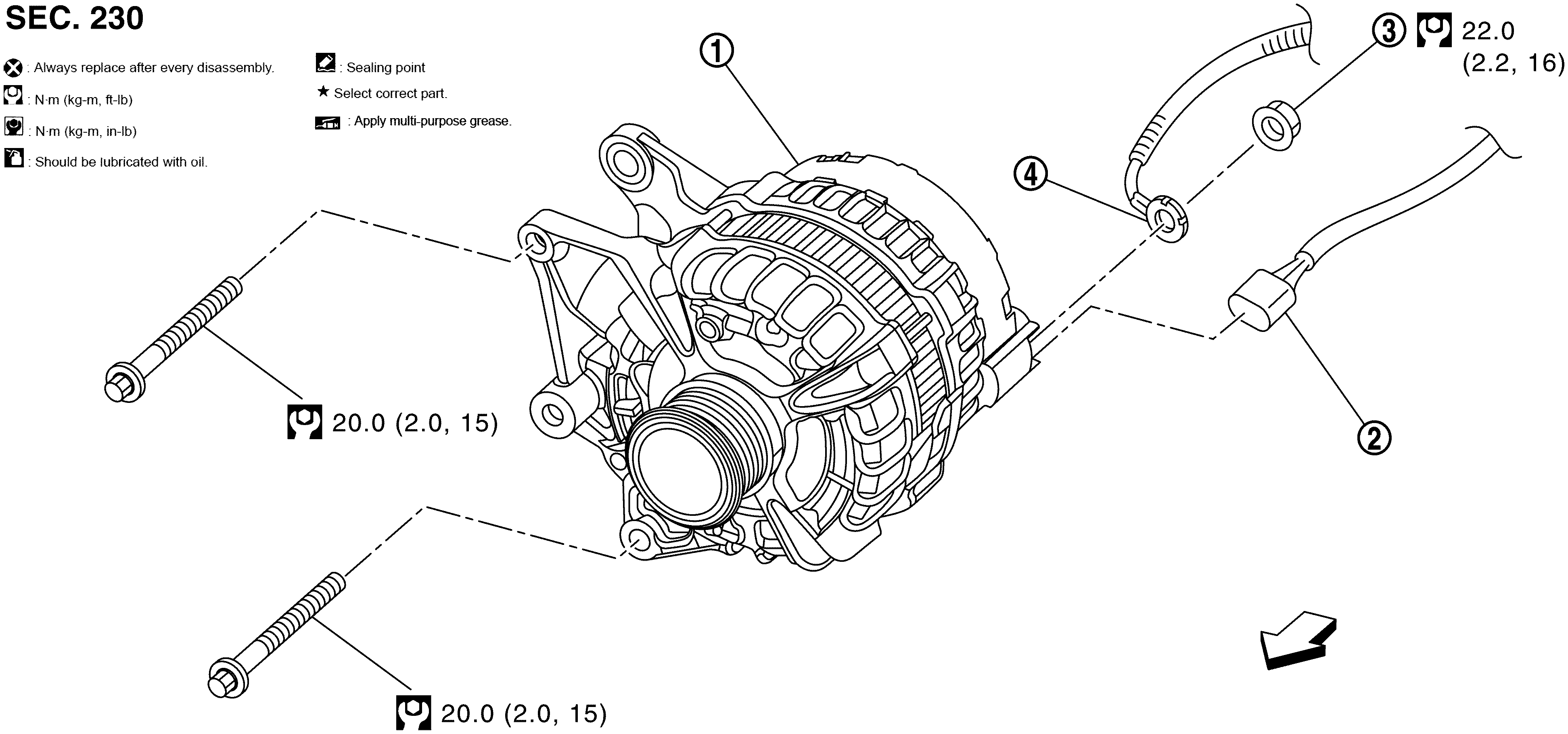

Fig 1: Alternator Components With Torque Specification
GNSJMMIA1818GB-818SYMBOLSYMBOLSYMBOLSYMBOLSYMBOLSYMBOLCourtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Alternator

SYMBOL

Alternator connector

SYMBOL

"B" terminal nut

SYMBOL

"B" terminal harness

SYMBOL

: Vehicle front

SYMBOL

: N.m (kg-m, ft-lb)
