Exploded View

WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

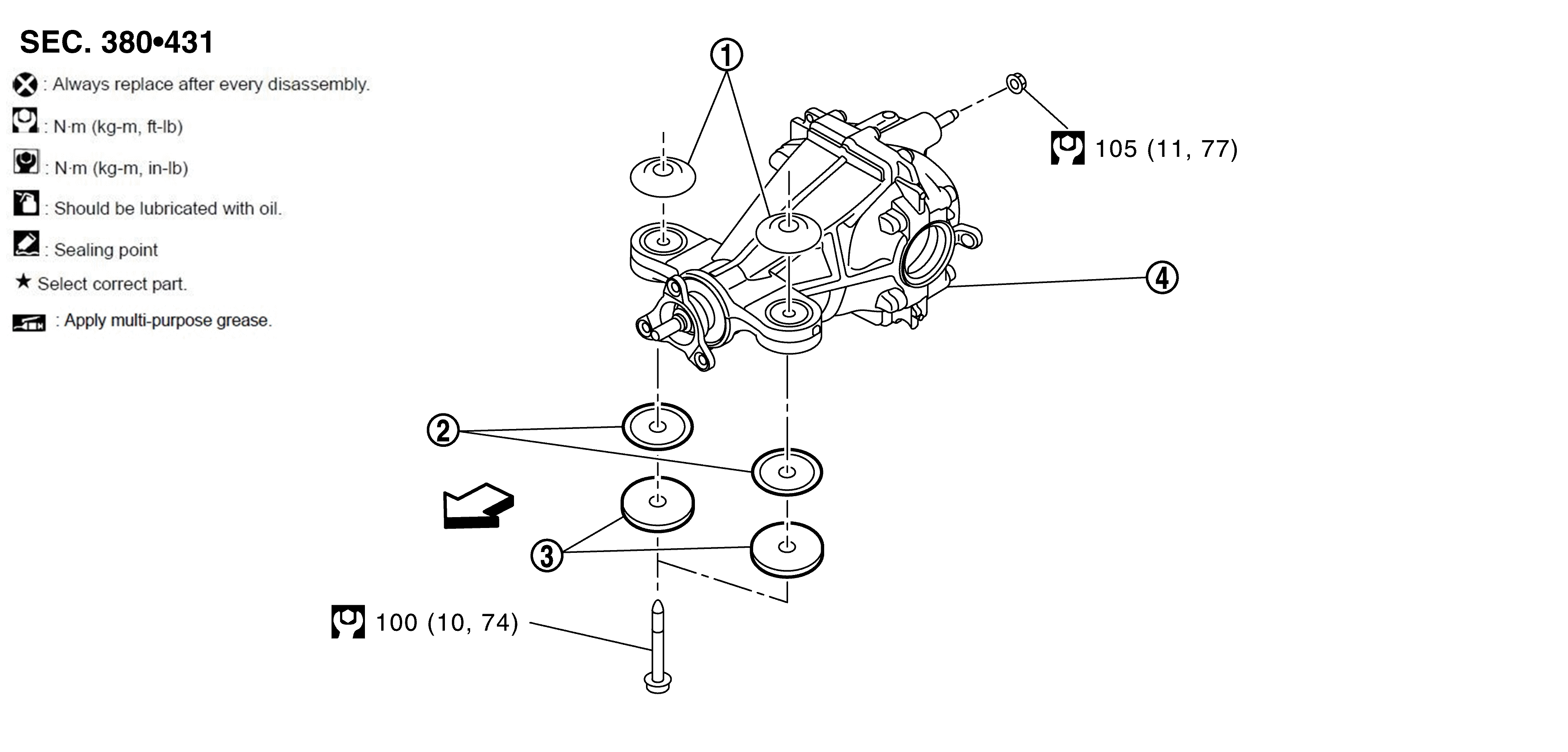

Fig 1: Rear Final Drive Assembly Components With Torque Specification
GNSJSDIA4756GB-756Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Upper stopper

SYMBOL

Lower stopper

SYMBOL

Washer

SYMBOL

Rear final drive assembly

SYMBOL

: Vehicle front

SYMBOL

: N.m (kg-m, ft-lb)
