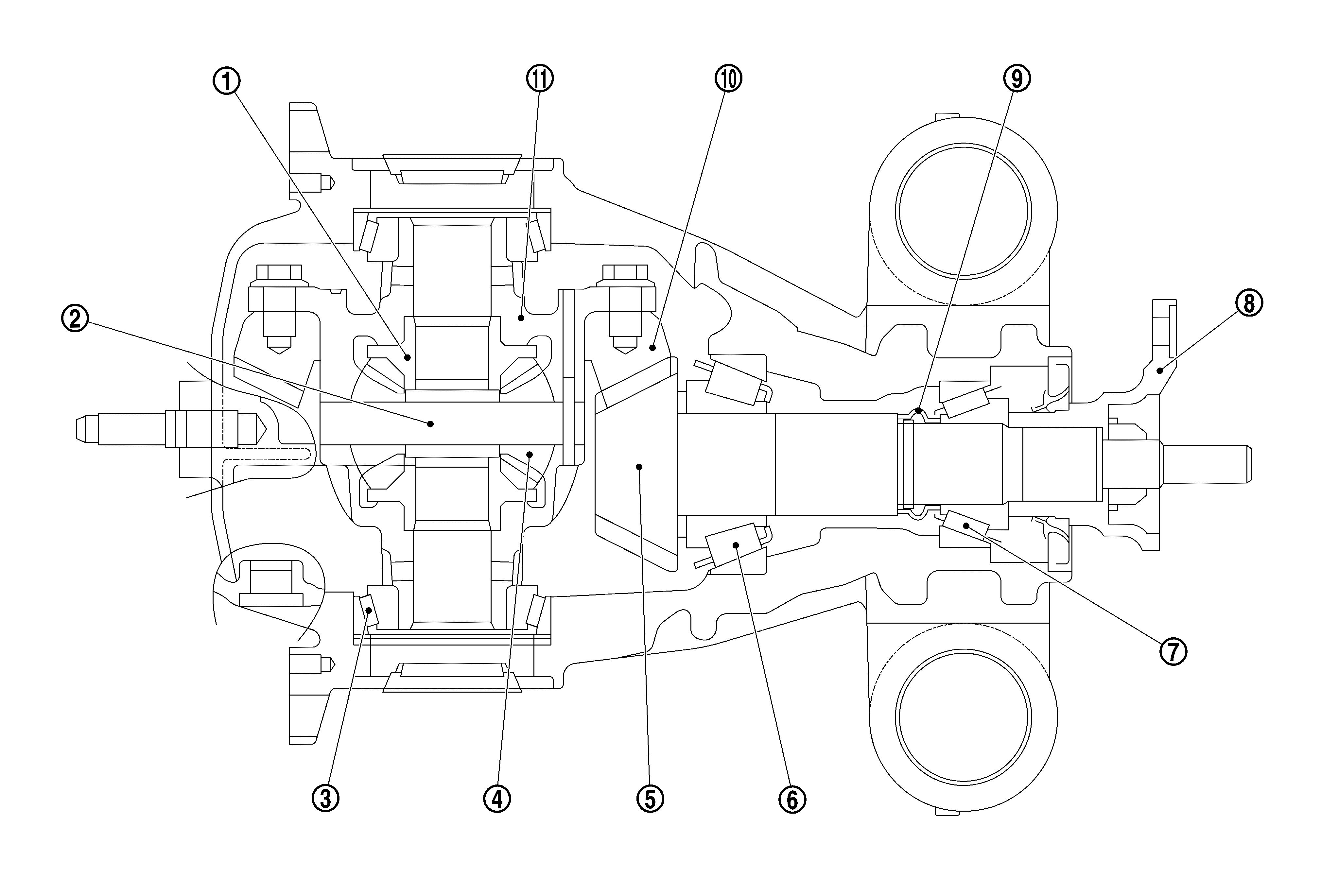

Sectional View
WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
|
Side gear
|
|
Pinion mate shaft
|
|
Side bearing
|
|
|
Pinion mate gear
|
|
Drive pinion
|
|
Pinion rear bearing
|
|
|
Pinion front bearing
|
|
Companion flange
|
|
Collapsible spacer
|
|
|
Drive gear
|
|
Differential case
|
