Exploded View: Disassembly
WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
|

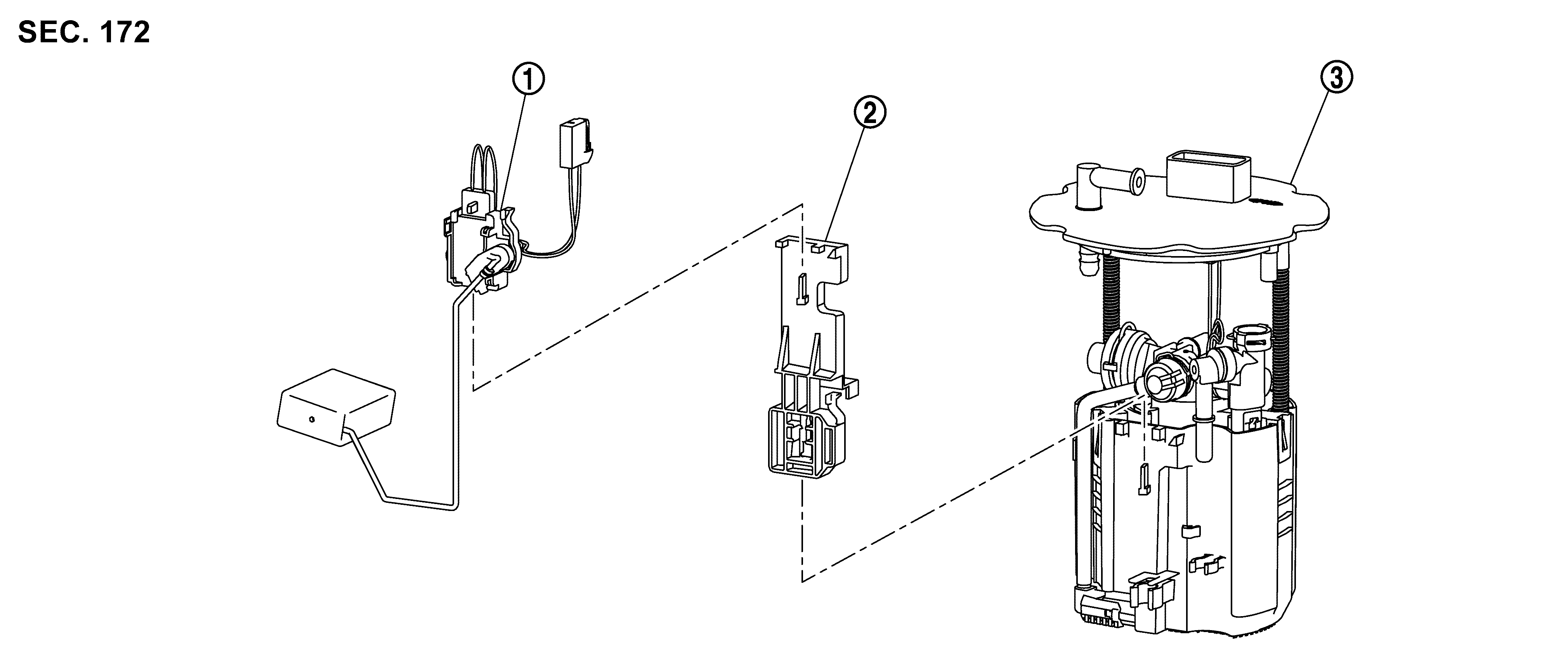

Main fuel level sensor unit
|
|
Adapter
|
|
Fuel filter and fuel pump assembly
|
NOTE:
Sub fuel level sensor unit cannot be disassembled and should be replaced as a unit.
