Disassembly and Assembly: Disassembly

WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Sub fuel level sensor unit cannot be disassembled and should be replaced as a unit.

Remove main fuel level sensor unit as follows:

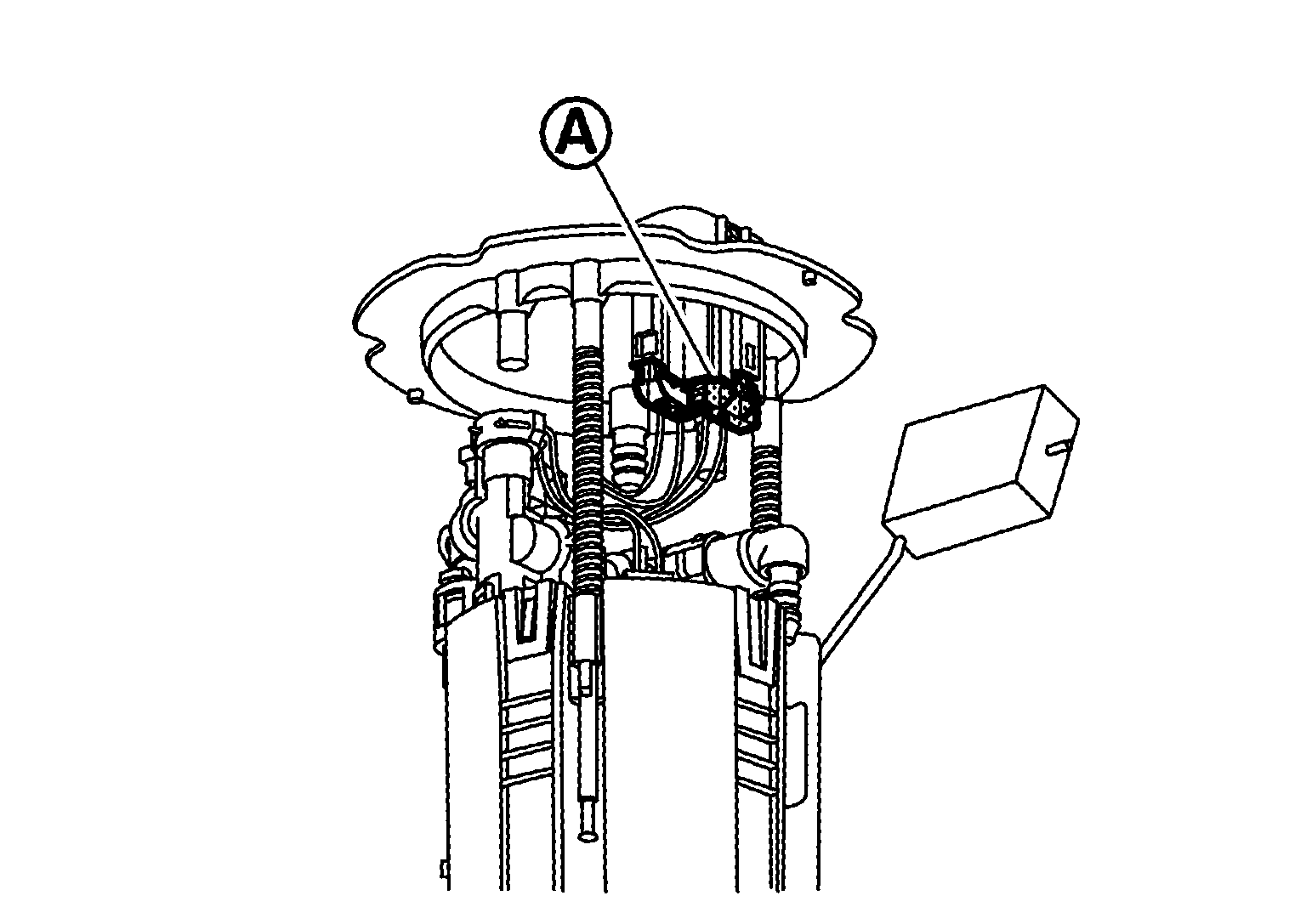

Disconnect harness connector .

Courtesy of NISSAN NORTH AMERICA, INC.
1. Hold connector by fingers and push stopper release tab.
2. Pull it out connector.

Remove main fuel level sensor unit

from adapter

as follows:

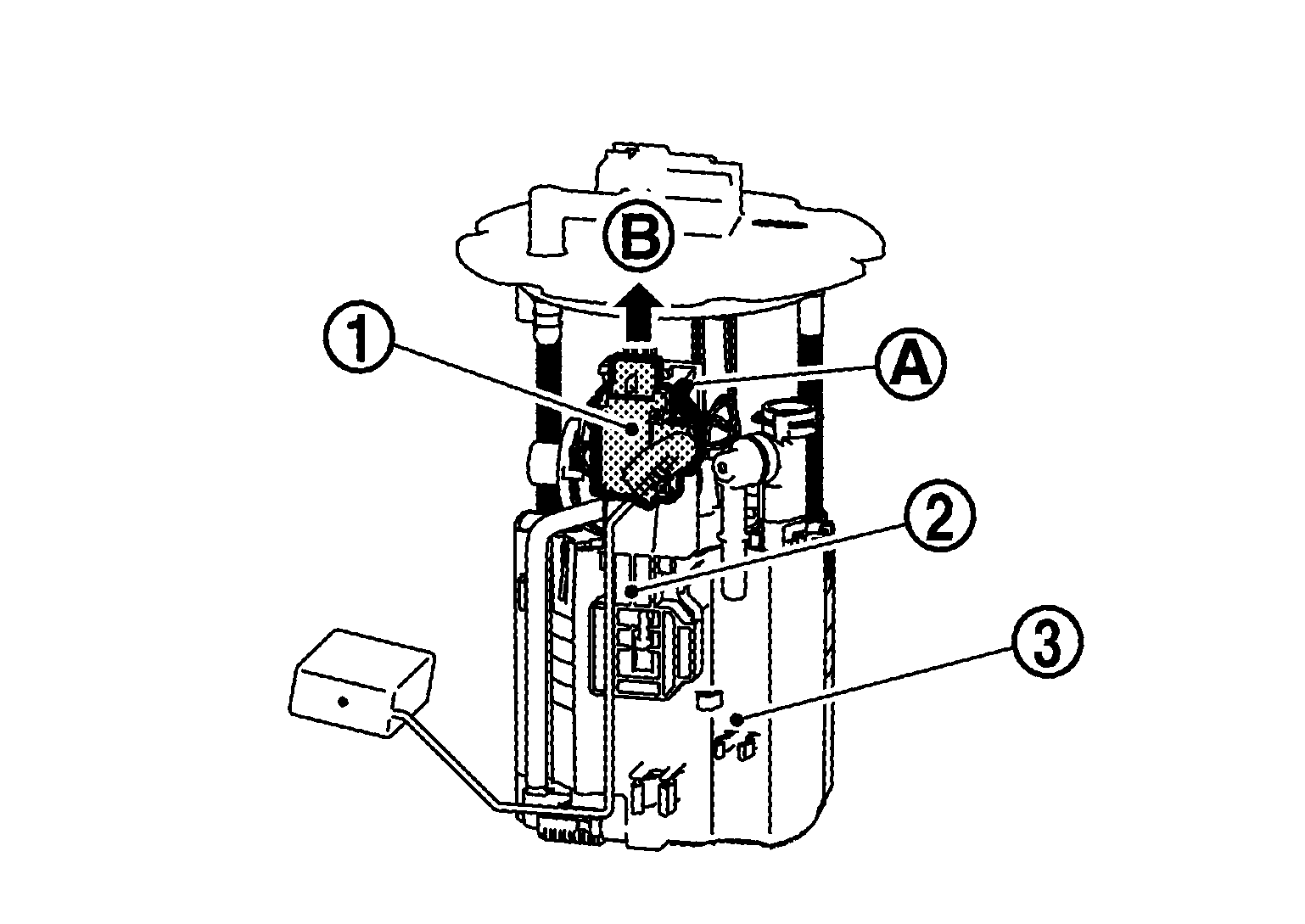

GNSJSBIA5118Z-118

Courtesy of NISSAN NORTH AMERICA, INC.

: Fuel filter and fuel pump assembly

Push in tab to release the lock.
After fixing tabs are disengaged, slide main fuel level sensor unit out in direction shown by the arrow .
CAUTION:
- Be careful not to damage the main fuel level sensor unit.
- Never disassemble fuel filter and fuel pump assembly.

Remove adapter from the fuel filter and fuel pump assembly in the same procedure used in removing main fuel level sensor unit if necessary.
