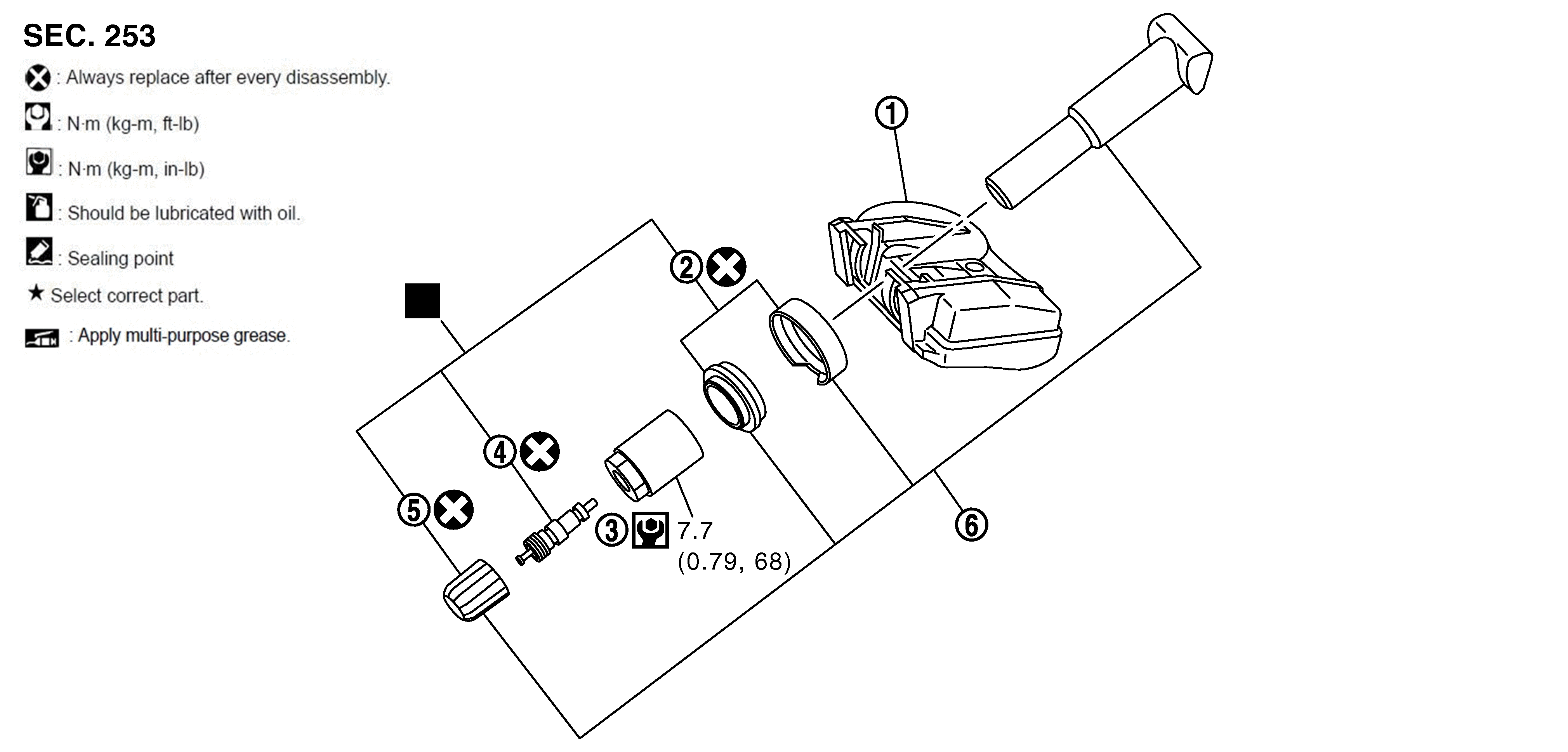

Exploded View
WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
|
Tire pressure sensor
|
|
Washer/Seal
|
|
Valve nut
|
|
|
Valve core
|
|
Valve cap
|
|
Valve stem assembly
|
|
: N.m (kg-m, in-lb)
|
|
: Always replace after every disassembly.
|
|
:
|
Parts that are replaced as a set when the tire is replaced.
|
