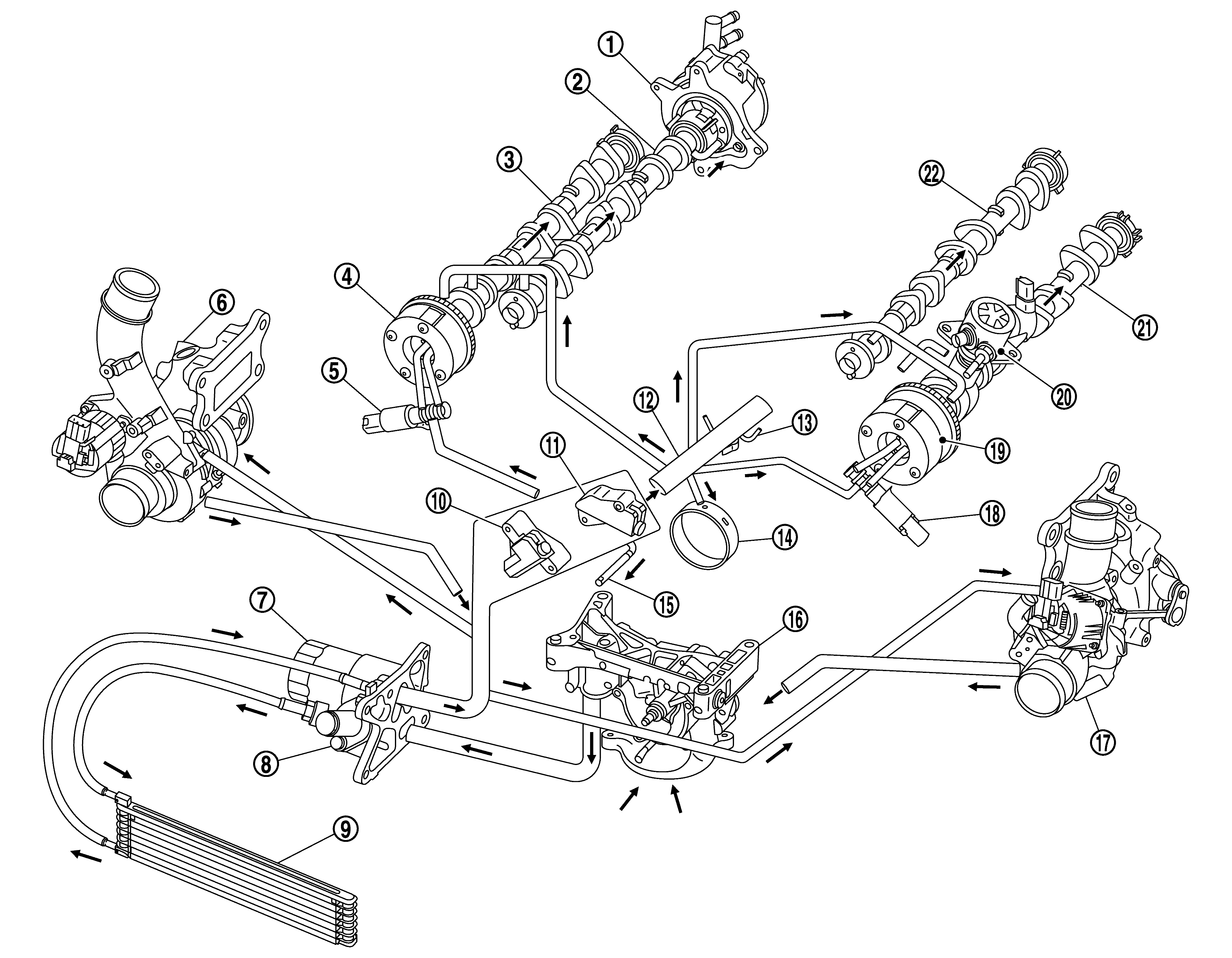

Engine Lubrication System
|
|
Vacuum pump |
|
Intake camshaft (bank 1) |
|
Exhaust camshaft (bank 1) |
|
|
Exhaust camshaft sprocket (bank 1) |
|
Exhaust valve timing control solenoid valve (bank 1) |
|
Turbocharger (bank 1) |
|
|
Oil filter |
|
Relief valve |
|
Oil cooler |
|
|
Timing chain tensioner (bank 1) |
|
Timing chain tensioner (bank 2) |
|
Oil gallery |
|
|
Oil jet |
|
Main bearing |
|
Timing chain oil jet |
|
|
Oil pump |
|
Turbocharger (bank 2) |
|
Exhaust valve timing control solenoid valve (bank 2) |
|
|
Exhaust camshaft sprocket (bank 2) |
|
High pressure fuel pump |
|
Exhaust camshaft (bank 2) |
|
|
Intake camshaft (bank 2) |
|
|

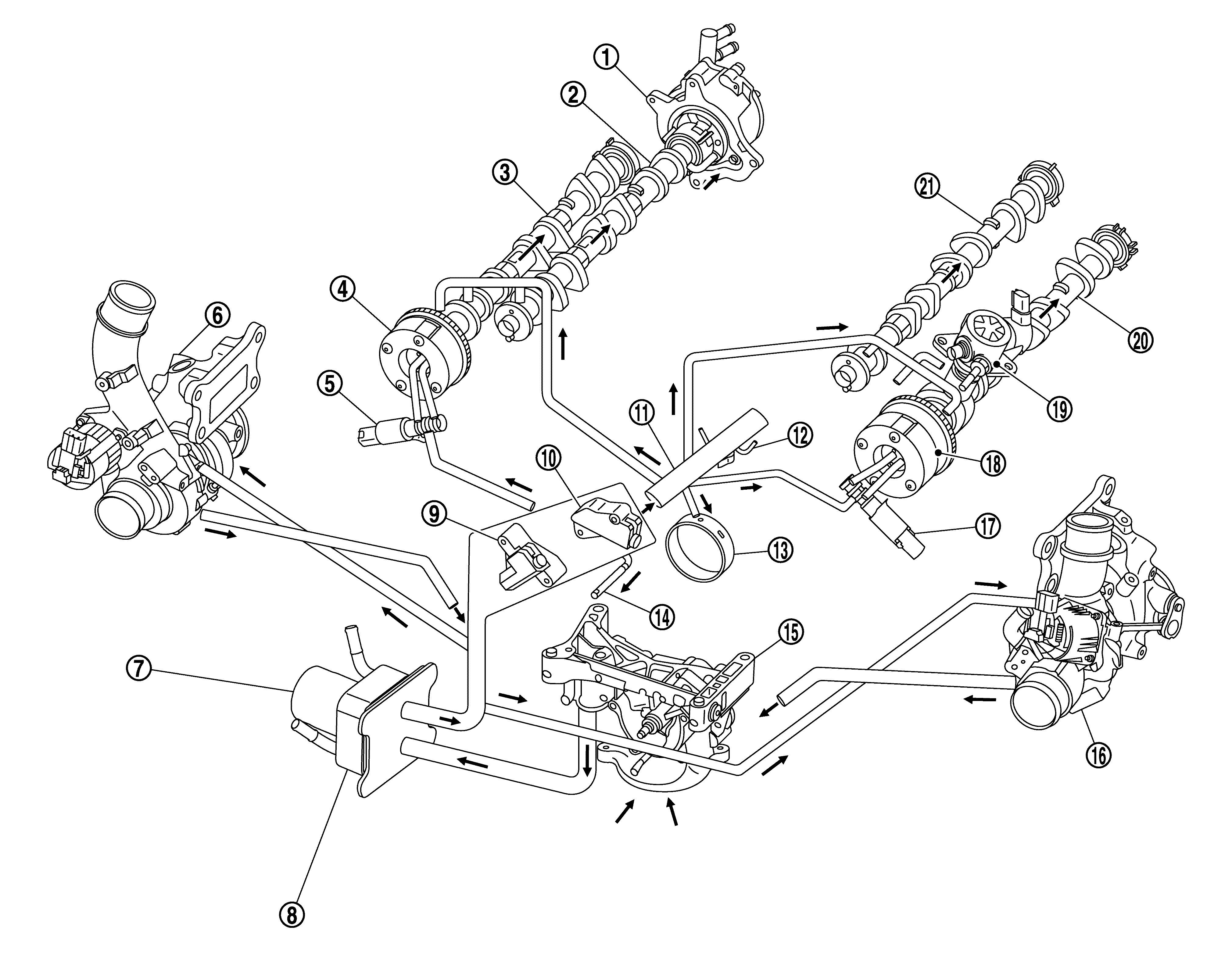

Vacuum pump |
|
Intake camshaft (bank 1) |
|
Exhaust camshaft (bank 1) |
|
|
Exhaust camshaft sprocket (bank 1) |
|
Exhaust valve timing control solenoid valve (bank 1) |
|
Turbocharger (bank 1) |
|
|
Oil filter |
|
Oil cooler |
|
Timing chain tensioner (bank 1) |
|
|
Timing chain tensioner (bank 2) |
|
Oil gallery |
|
Oil jet |
|
|
Main bearing |
|
Timing chain oil jet |
|
Oil pump |
|
|
Turbocharger (bank 2) |
|
Exhaust valve timing control solenoid valve (bank 2) |
|
Exhaust camshaft sprocket (bank 2) |
|
|
High pressure fuel pump |
|
Exhaust camshaft (bank 2) |
|
Intake camshaft (bank 2) |
