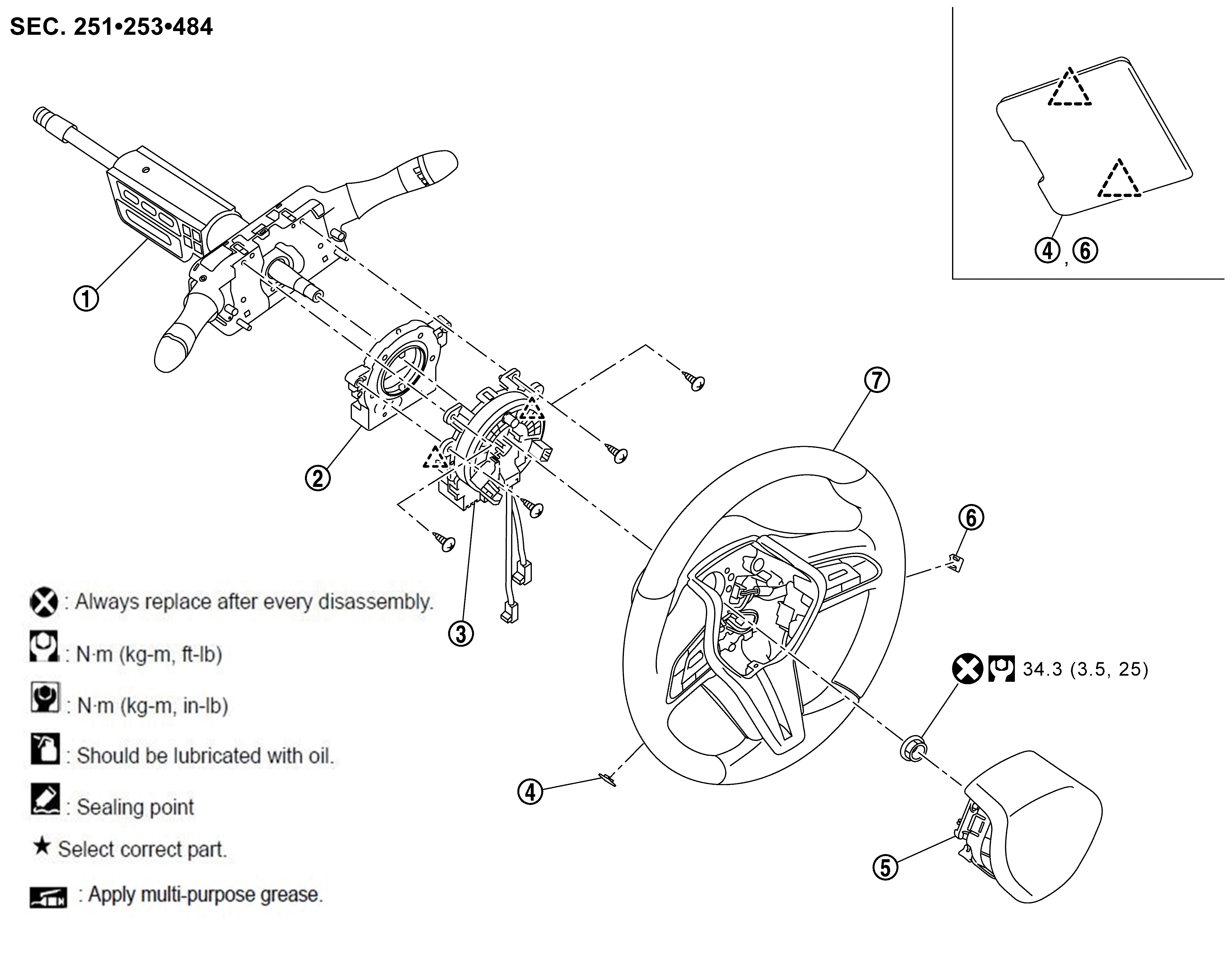

Exploded View
WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
|
Steering column assembly
|
|
Driver angle sensor
|
|
Spiral cable
|
|
|
Side lid LH
|
|
Driver air bag module
|
|
Side lid RH
|
|
|
Steering wheel
|
|
|
: Pawl
|
|
|
: Always replace after every disassembly.
|
|
|
: N.m (kg-m, ft-lb)
|
