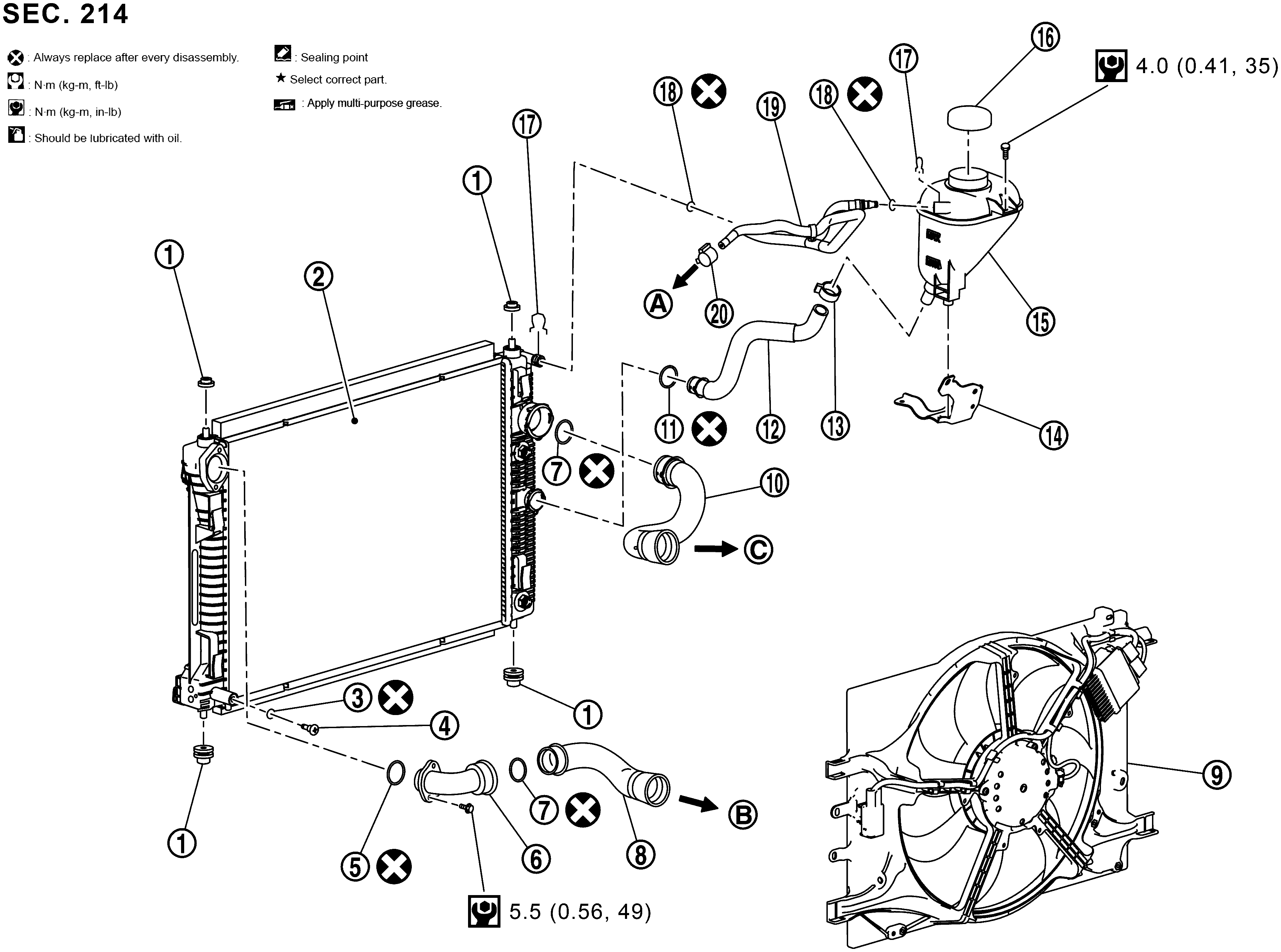

Exploded View
WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Mounting rubber |
|
Radiator |
|
O-ring |
|
|
Drain cock |
|
O-ring |
|
Coolant tube |
|
|
O-ring |
|
Coolant hose (lower) |
|
Cooling fan unit assembly |
|
|
Coolant hose (upper) |
|
O-ring |
|
Reservoir tank hose |
|
|
Clamp |
|
Reservoir tank bracket |
|
Reservoir tank |
|
|
Reservoir tank cap |
|
Stop spring |
|
O-ring |
|
|
Reservoir tank hose (return) |
|
Clamp |
||
|
|
To cylinder head |
|
To coolant thermostat |
|
To coolant pump |
|
|
: Always replace after every disassembly. |
||||
|
|
: N.m (kg-m, in-lb) |
||||
