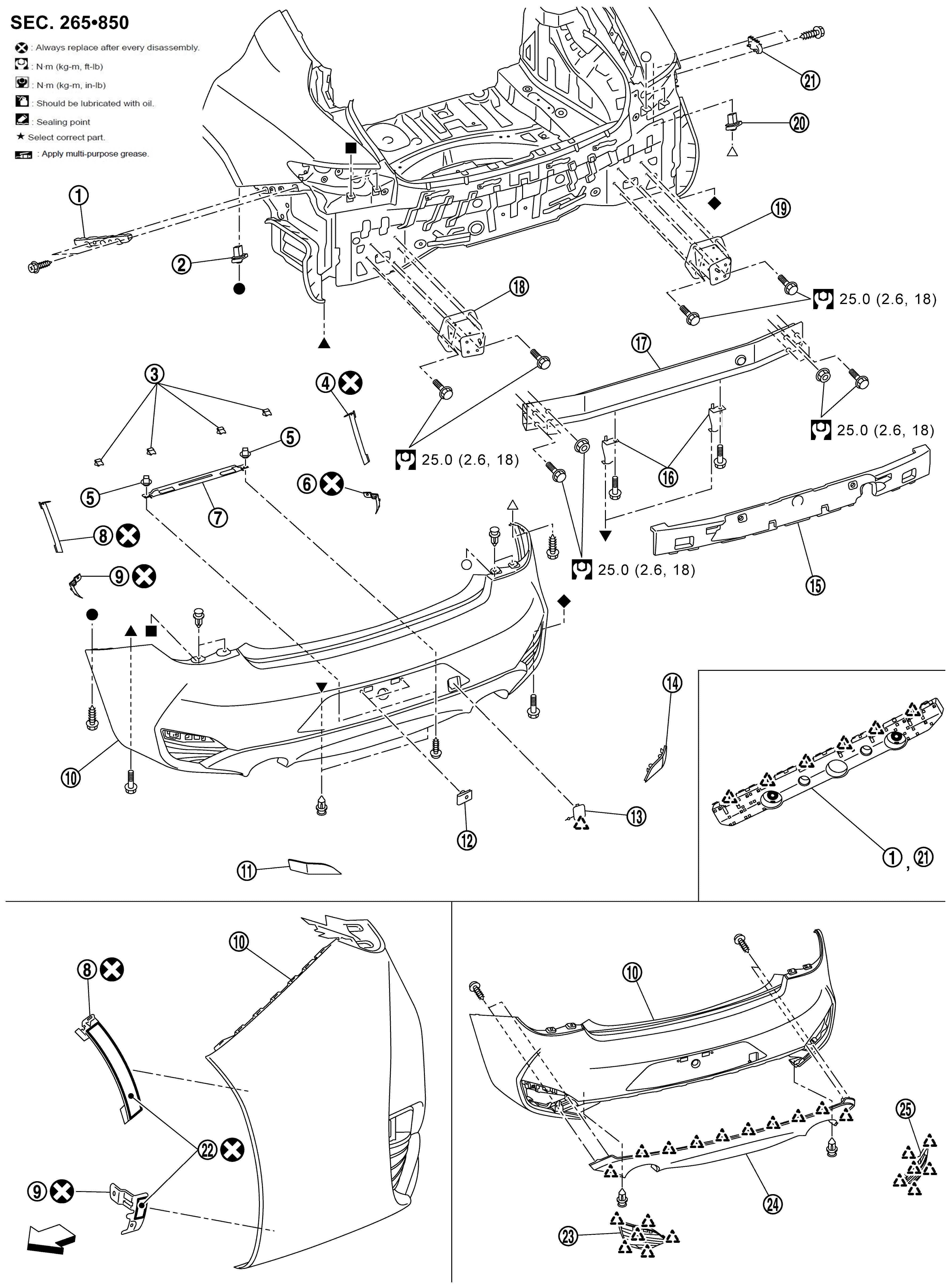

Exploded View
WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Rear bumper side bracket LH |
|
Grommet |
|
Clip |
|
|
Rear bumper bracket A RH |
|
Grommet |
|
Rear bumper bracket B RH |
|
|
License lamp bracket |
|
Rear bumper bracket A LH |
|
Rear bumper bracket B LH |
|
|
Rear bumper fascia |
|
Rear reflex reflector LH |
|
U nut |
|
|
Rear bumper finisher |
|
Rear reflex reflector RH |
|
Rear bumper energy absorber |
|
|
Rear bumper retainer |
|
Rear bumper reinforcement |
|
Rear bumper stay LH |
|
|
Rear bumper stay RH |
|
Grommet |
|
Rear bumper side bracket RH |
|
|
Double-sided tape [t: 1.0 mm (0.039 in)] |
|
Rear bumper finisher lower LH |
|
Rear bumper fascia lower |
|
|
Rear bumper finisher lower RH |
||||
|
|
: Pawl |
||||
|
|
: Vehicle front |
||||
|
|
: Always replace after every disassembly. |
||||
|
|
: N.m (kg-m, ft-lb) |
||||
|
|
|||||
