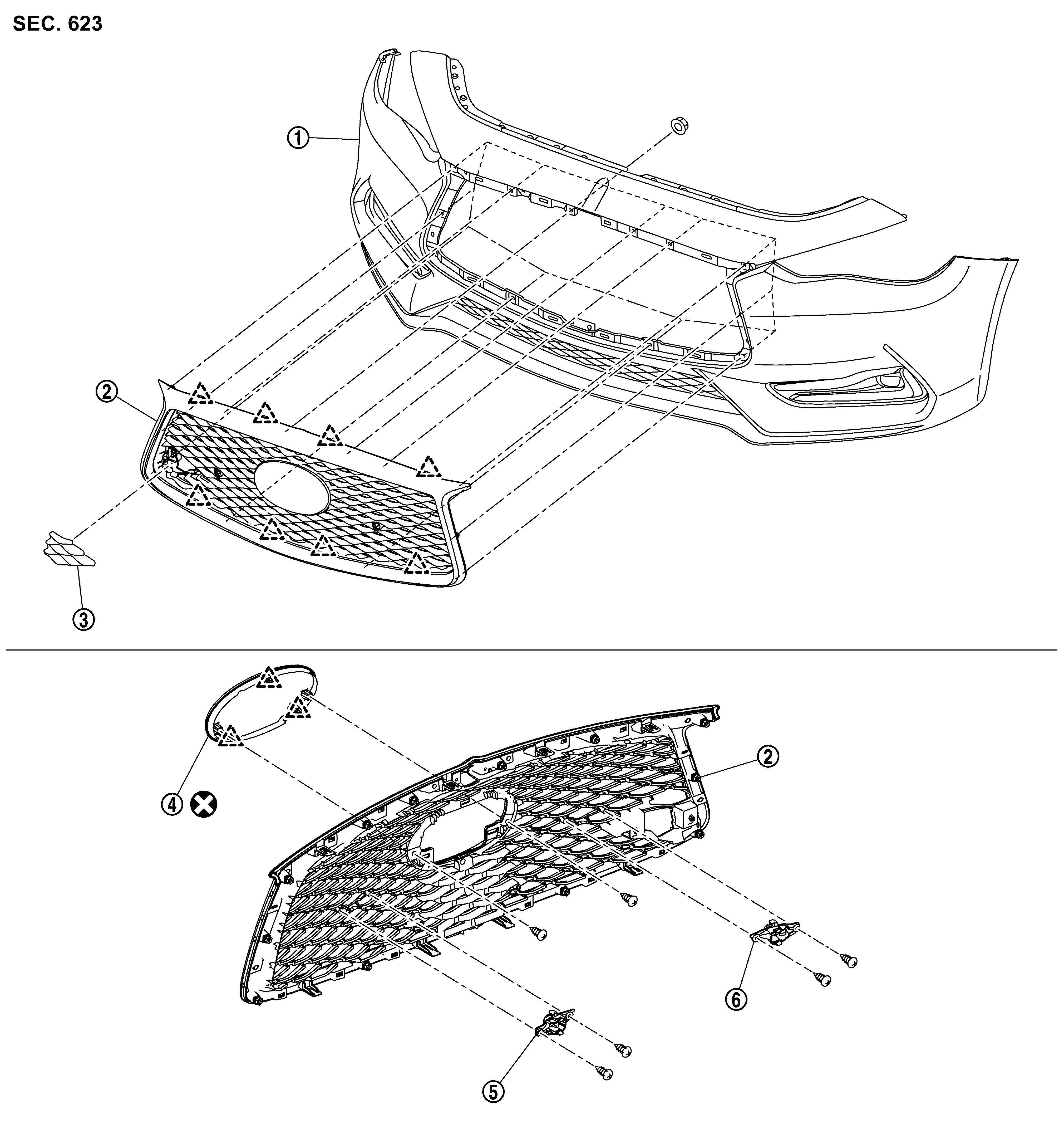

Exploded View
WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
|
Front bumper fascia
|
|
Front grille
|
|
Bumper bracket cover
|
|
|
ICC sensor cover
|
|
Sonar finisher LH
|
|
Sonar finisher RH
|
|
|
: Pawl
|
|
|
: Always replace after every disassembly.
|
