Exploded View

WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

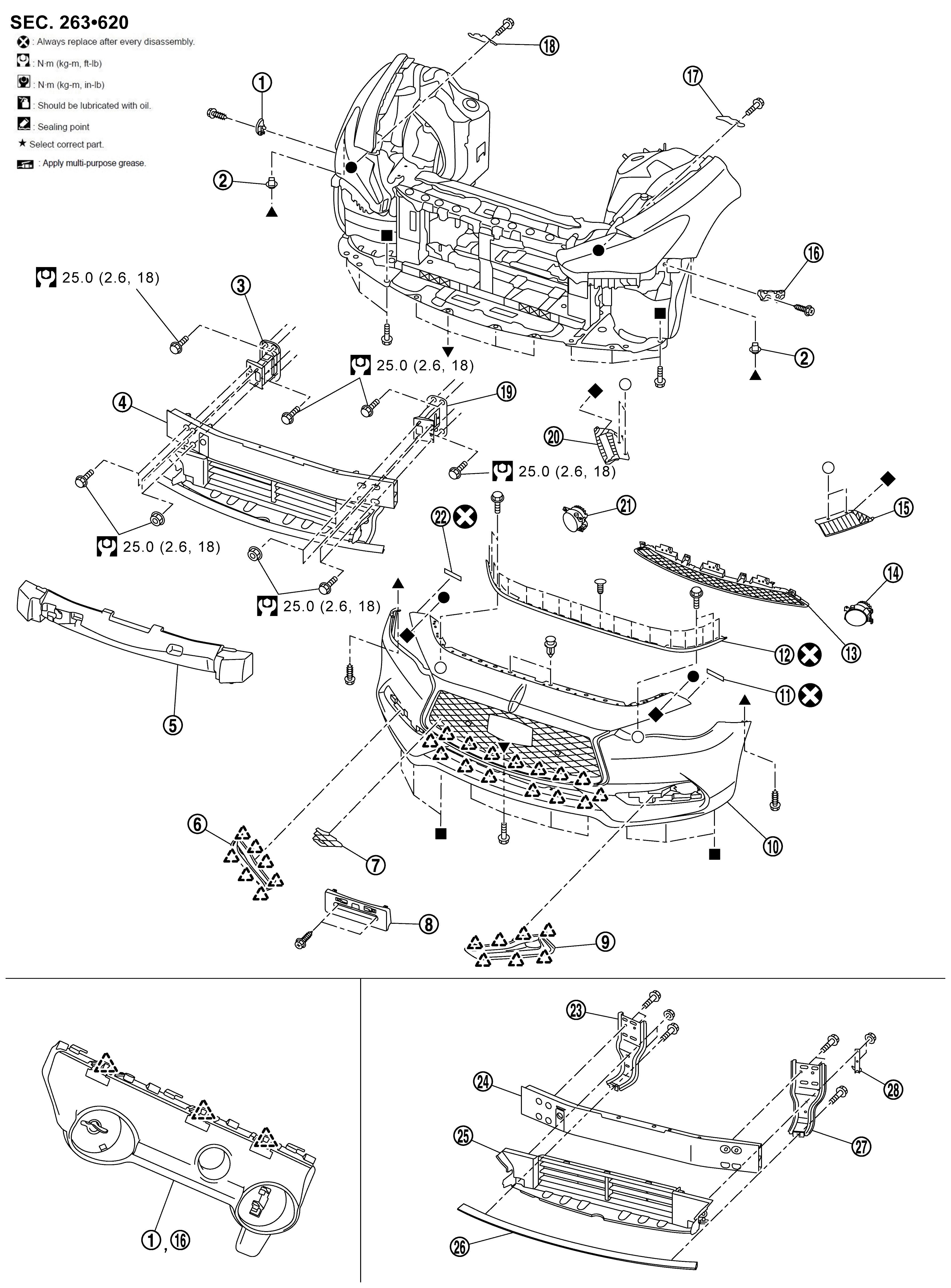

Fig 1: Front Bumper With Torque Specification

Courtesy of NISSAN NORTH AMERICA, INC.

	Front bumper side bracket RH	Grommet	Front bumper stay RH
	Front bumper reinforcement assembly	Front bumper energy absorber	Front bumper finisher RH
	Bumper bracket cover	License plate bracket	Front bumper finisher LH
	Front bumper fascia	Front bumper side spacer LH	Hood front seal
	Front bumper grille	Front fog lamp assembly LH	Front bumper side stiffener LH
	Front bumper side bracket LH	Front bumper fascia bracket LH	Front bumper fascia bracket RH
	Front bumper stay LH	Front bumper side stiffener RH	Front fog lamp assembly RH
	Front bumper side spacer RH	Apron side bracket RH	Front bumper reinforcement
	Active grille shutter	Front apron reinforcement	Apron side bracket LH
	Active grille shutter bracket
	: Pawl
	: Already replace after every disassembly.
	: N.m (kg-m, ft-lb)
, , , , , : Indicates that the part is connected at points with same symbol in actual vehicle.
