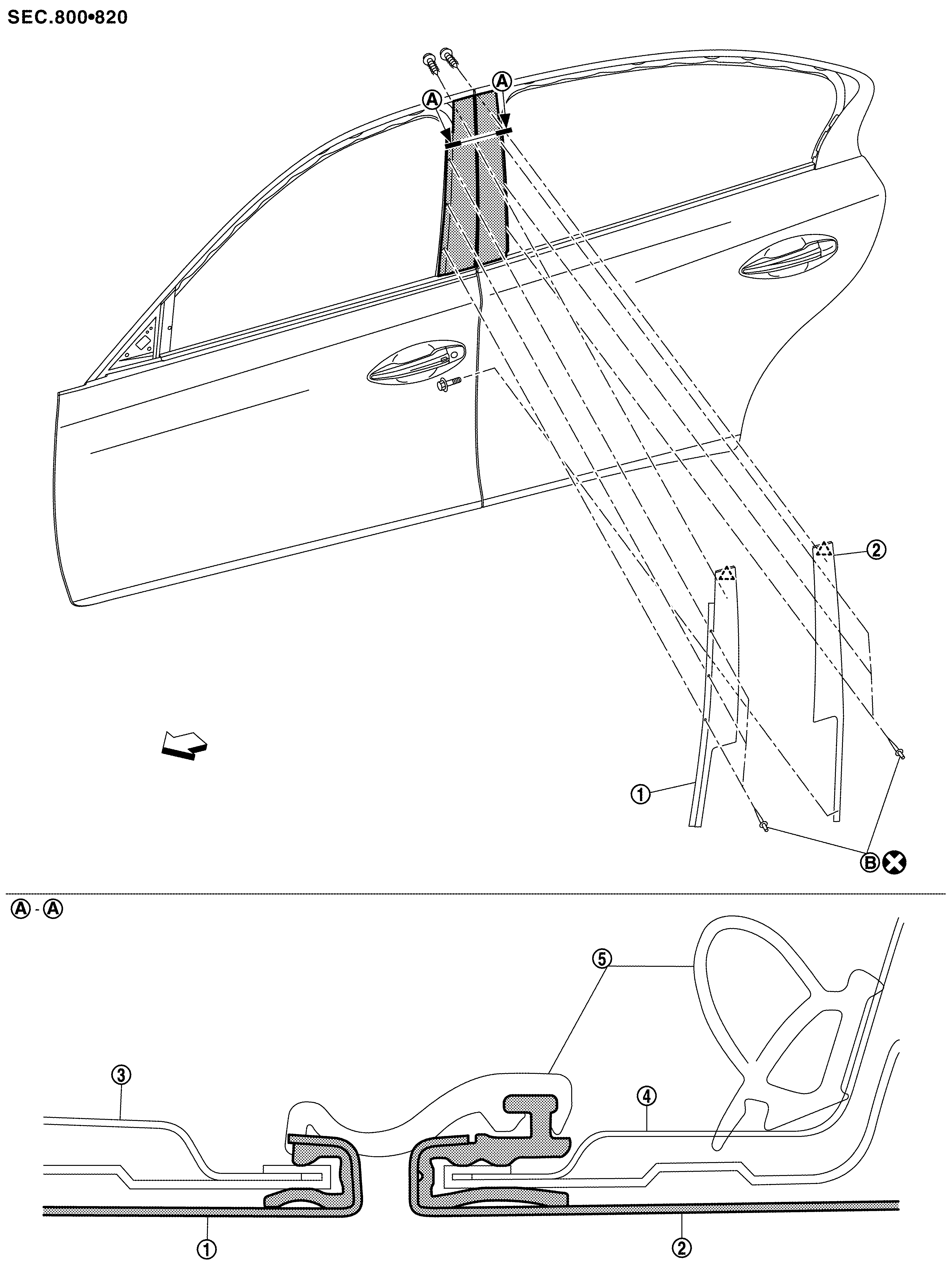

Exploded View
WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Front door sash cover |
|
Rear door sash cover |
|
Front door panel |
|
|
Rear door panel |
|
Rear door weather-strip |
||
|
|
Rivet |
||||
|
|
: Pawl |
||||
|
|
: Vehicle front |
||||
|
|
: Always replace after every disassembly. |
||||
