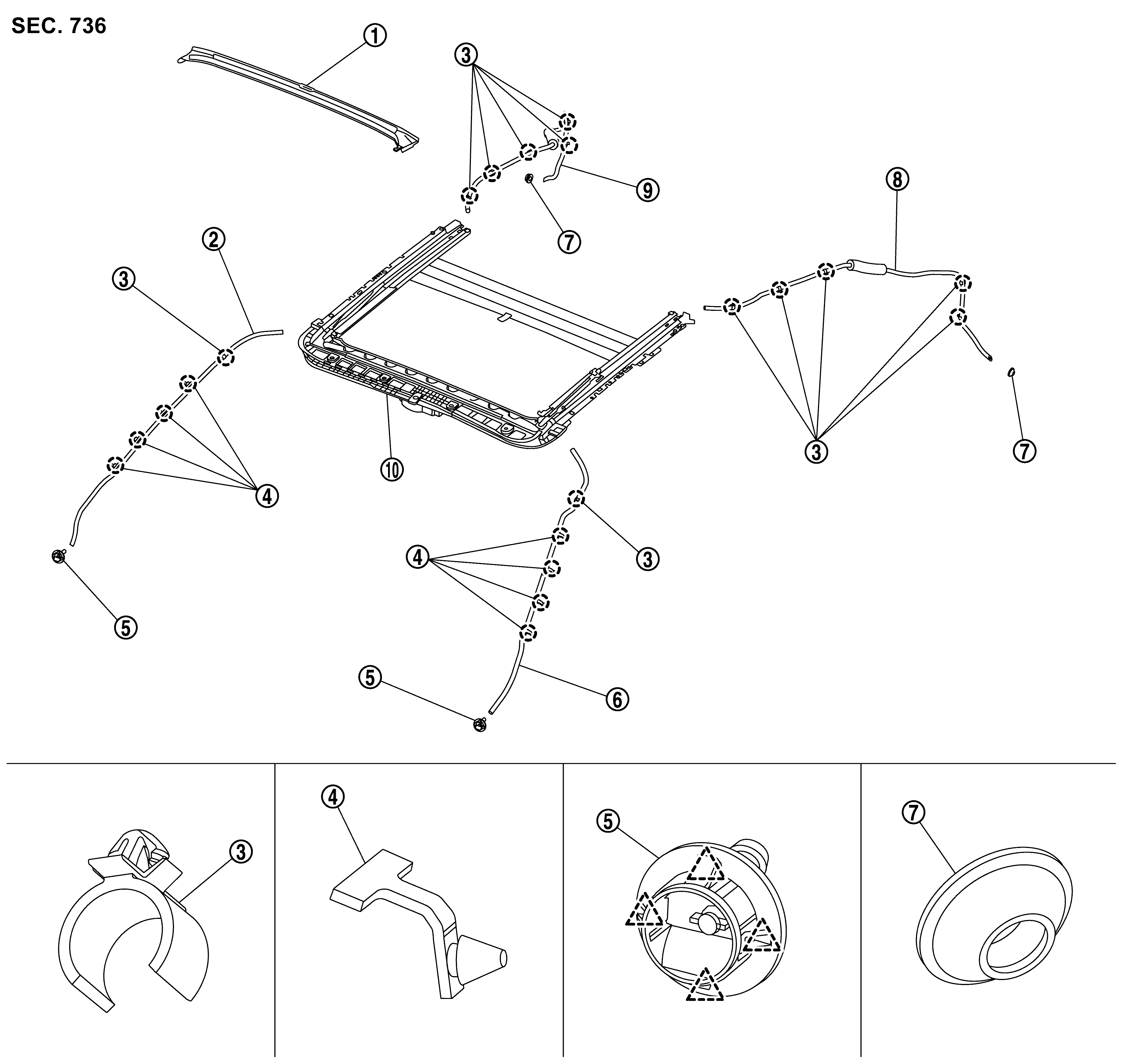

Exploded View
WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
|
Rear drain assembly
|
|
Front drain hose RH
|
|
Drain hose clip A
|
|
|
Drain hose clip B
|
|
Drain connector A
|
|
Front drain hose LH
|
|
|
Drain connector B
|
|
Rear drain hose LH
|
|
Rear drain hose RH
|
|
|
Sunroof unit assembly
|
|
|
: Clip
|
|
|
: Pawl
|
