Exploded View: Disassembly

WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

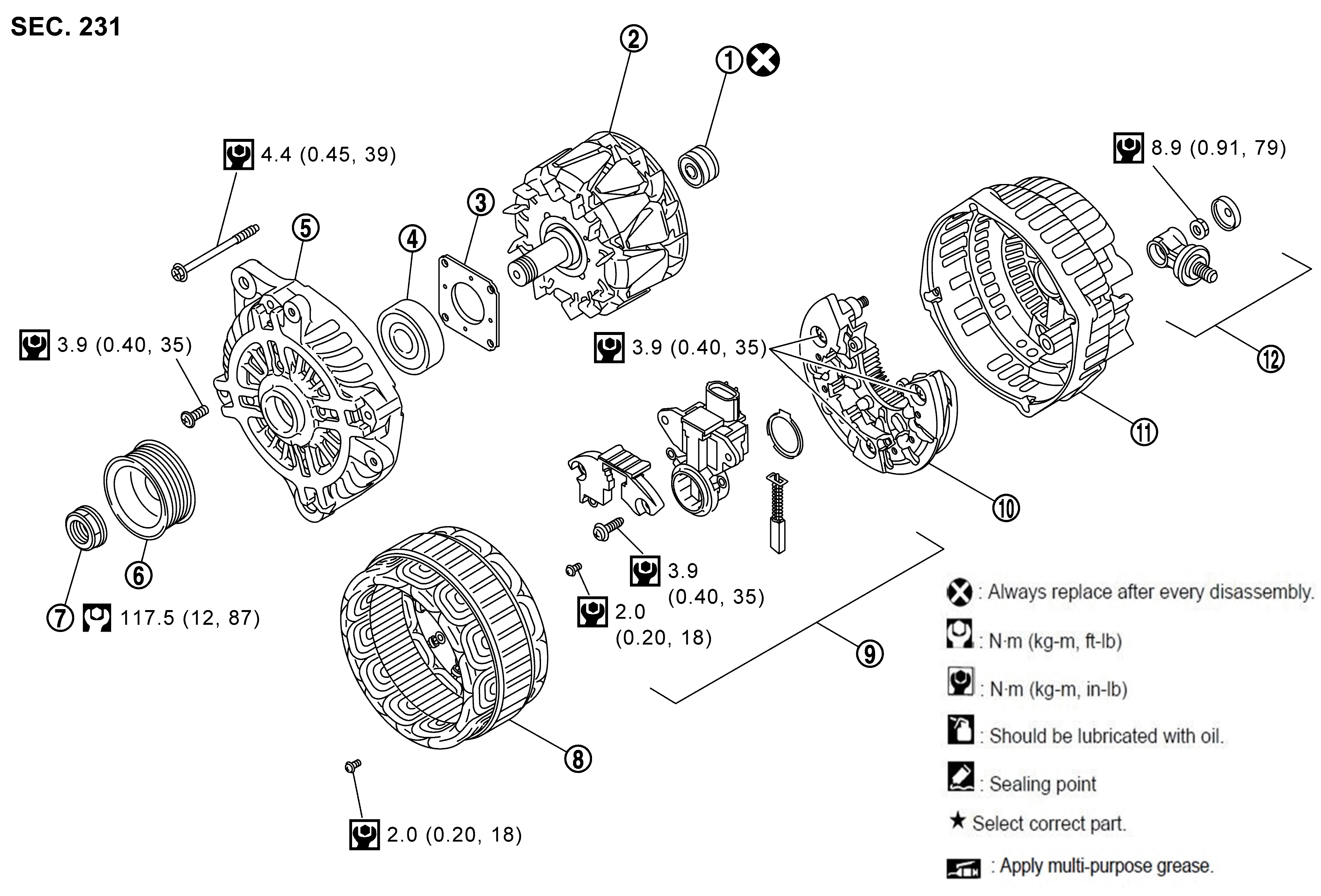

Fig 1: Alternator With Torque Specification (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

Rear bearing	Rotor assembly	Retainer
Front bearing	Front bracket assembly	Pulley
Pulley nut	Stator assembly	IC voltage regulator assembly
Diode assembly	Rear bracket assembly	Terminal set
: Always replace after every disassembly.
: N.m (kg-m, in-lb)
: N.m (kg-m, ft-lb)

Fig 2: Alternator With Torque Specification (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

Rear bearing	Rotor assembly	Retainer
Front bearing	Front bracket assembly	Pulley
Pulley nut	Stator assembly	IC voltage regulator assembly
Diode assembly	Rear bracket assembly	Terminal set
: Always replace after every disassembly.
: N.m (kg-m, in-lb)
: N.m (kg-m, ft-lb)
