Physical Values

WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

Terminal No. (Wire color)		Description		Condition		Value (Approx.)
		Signal name	Input/ Output
+	-
1 (R)	Ground	Push-button ignition switch (Push switch)	Input	Push-button ignition switch (push switch)	Pressed	0 - 1.5 V
					Not pressed	9 - 16 V
3 (Y)	Ground	Sensor power supply	Output	Ignition switch OFF, ACC or ON		4.65 - 5.5 V
4 (BG)	Ground	Optical sensor	Input	Ignition switch ON	When bright outside of the vehicle	Close to 5 V
					When dark outside of the vehicle	Close to 0 V
5 (LG)	Ground	Shock status	Input	--		--

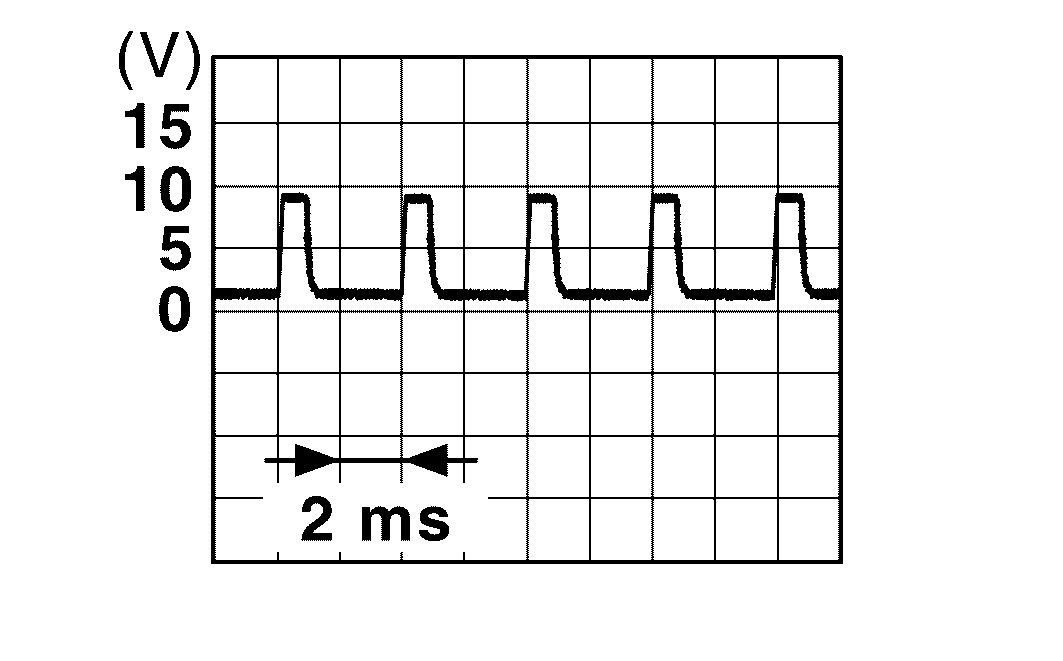

10 (W)	Ground	Combination switch OUTPUT 5	Output	Combination switch	All switches OFF	0 V
					Turn signal switch RH	Courtesy of NISSAN NORTH AMERICA, INC. 10.7 V
					Lighting switch 1ST
					Lighting switch 2ND
					Lighting switch HI
11 (SB)	Ground	Combination switch OUTPUT 4	Output	Combination switch	All switches OFF	0 V
					Turn signal switch LH	Courtesy of NISSAN NORTH AMERICA, INC. 10.7 V
					Lighting switch 2ND
					Lighting switch PASS
					Front fog lamp switch ON
12 (L)	Ground	Combination switch OUTPUT 3	Output	Combination switch	All switches OFF	0 V
					Front wiper switch LO	Courtesy of NISSAN NORTH AMERICA, INC. 10.7 V
					Front wiper switch MIST
					Front wiper switch INT/AUTO
					Lighting switch AUTO
13 (G)	Ground	Combination switch OUTPUT 2	Output	Combination switch	All switches OFF	0 V
					Front washer switch ON	Courtesy of NISSAN NORTH AMERICA, INC. 10.7 V
					Any of the condition below with all switches OFF INT VOLUME 1 INT VOLUME 5 INT VOLUME 6 NOTE: "INT VOLUME" in "DATA MONITOR" mode of "BCM" using CONSULT.
14 (P)	Ground	Combination switch OUTPUT 1	Output	Combination switch	All switches OFF	0 V
					Front wiper switch HI	Courtesy of NISSAN NORTH AMERICA, INC. 10.7 V
					Any of the condition below with all switches OFF INT VOLUME 1 INT VOLUME 2 INT VOLUME 3 INT VOLUME 6 INT VOLUME 7 NOTE: "INT VOLUME" in "DATA MONITOR" mode of "BCM" using CONSULT.

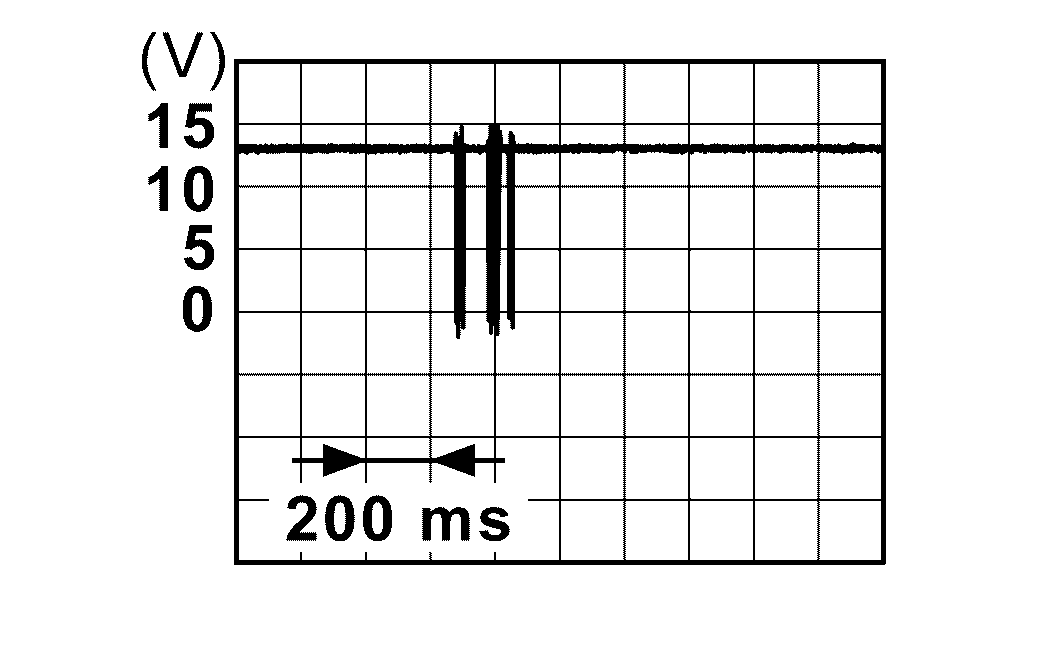

15 (G)	Ground	One touch unlock sensor (driver door)	Input	Driver door outside handle grip (backside)	Touch	Courtesy of NISSAN NORTH AMERICA, INC.
					Other than the above	9 - 16 V
16 (G)	Ground	One touch unlock sensor (passenger door)	Input	Passenger door outside handle grip (backside)	Touch	Courtesy of NISSAN NORTH AMERICA, INC.
					Other than the above	9 - 16 V
17 (P)	Ground	Receiver and sensor ground	Input	Ignition switch OFF		0 V

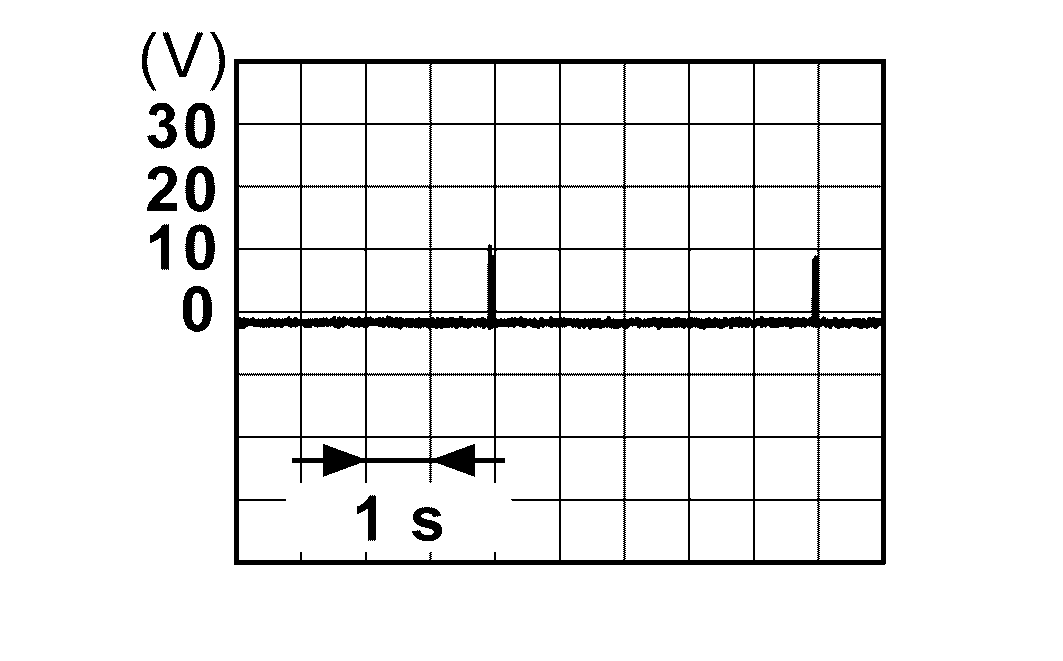

18 (L)	Ground	Security indicator lamp control	Output	Security indicator lamp	ON	0 V
					Blinking (Ignition switch OFF)	Courtesy of NISSAN NORTH AMERICA, INC. 11.3 V
					OFF	12 V
20 (R)	Ground	Detention switch	Input	Selector lever	P position (Release selector button)	0 - 1.5 V
					Any position other than P	9 - 16 V
21 (SB)	Ground	Step lamp and foot lamp control	Output	Step lamp and foot lamp	ON	0 - 1.5 V
					OFF	9 - 16 V
25 (R)	Ground	Stop lamp switch 2	Input	Ignition switch OFF		9 - 16 V
26 (R)	Ground	Extended storage fuse switch	Input	Extended storage fuse switch	ON (Ignition switch OFF)	9 - 16 V
					OFF	0 V
27 (P)	Ground	Stop lamp switch 1	Input	Stop lamp switch	OFF (Brake pedal is not depressed)	0 V
					ON (Brake pedal is depressed)	9 - 16 V
30 (W)	Ground	Front door lock assembly driver side (Unlock sensor)	Input	Driver door	LOCK status (Unlock sensor switch OFF)	Courtesy of NISSAN NORTH AMERICA, INC. 11.8 V
					UNLOCK status (Unlock sensor switch ON)	0 V
33*¹ (V)	Ground	Trunk lid opener cancel switch	Input	Trunk lid opener cancel switch	ON	0 V
					OFF	Courtesy of NISSAN NORTH AMERICA, INC.

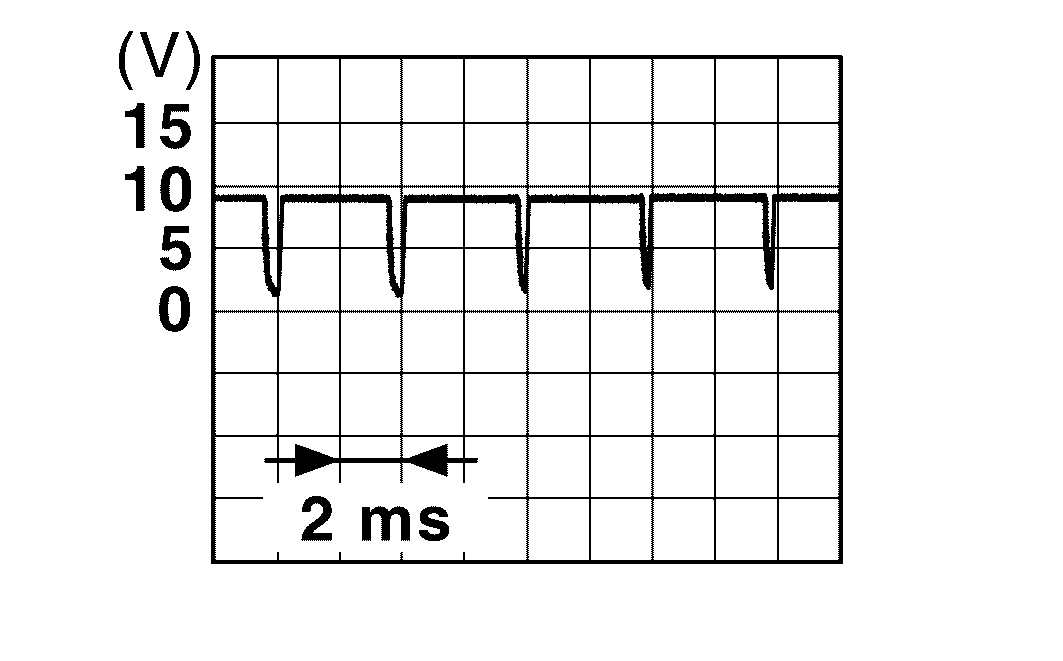

36 (G)	Ground	Hazard switch	Input	Hazard switch	Pressed	0 V
					Not pressed	Courtesy of NISSAN NORTH AMERICA, INC. 1.1 V
39 (BR)	Ground	P/N position	Input	Selector lever	P or N position	Courtesy of NISSAN NORTH AMERICA, INC.
					Except P and N positions	0 V

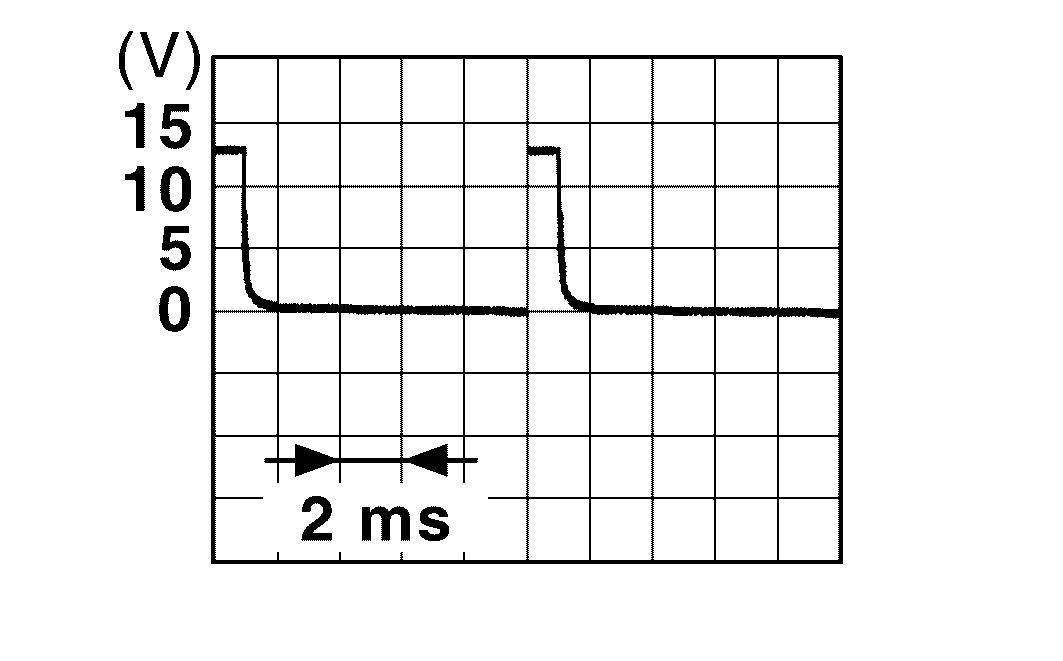

48 (R)	Ground	Push-button ignition switch illumination power supply	Output	Push-button ignition switch	OFF	0 V

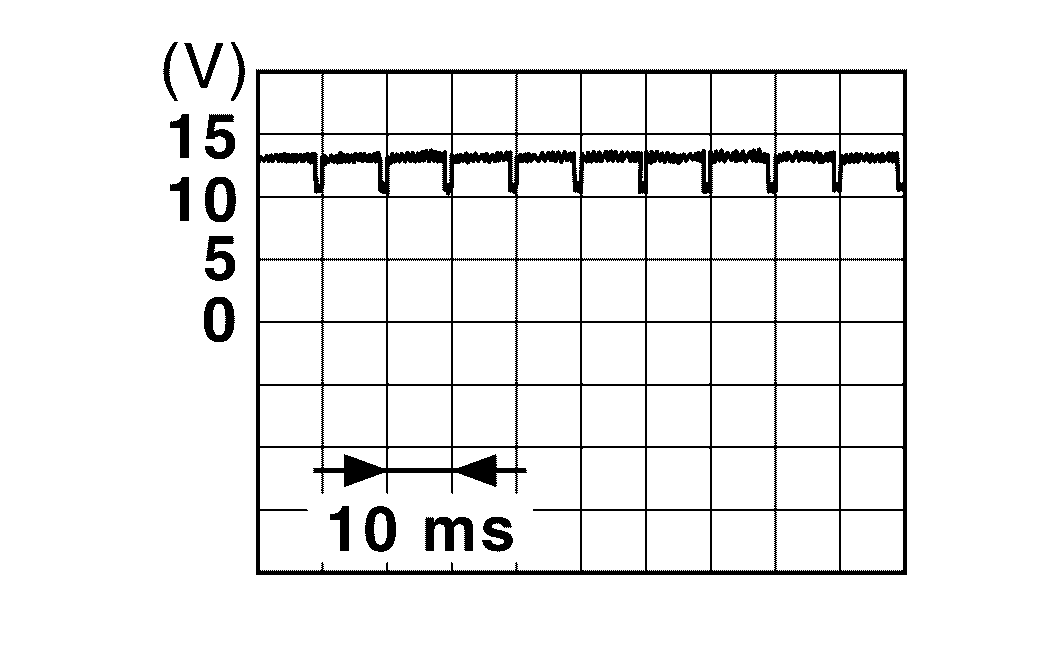

					ACC NOTE: The pulse cycle changes depending on illumination at push-button ignition switch.	Courtesy of NISSAN NORTH AMERICA, INC.NISSAN NORTH AMERICA, INC. Courtesy of NISSAN NORTH AMERICA, INC.NISSAN NORTH AMERICA, INC.
					ON	9 V
52*² (G)	Ground	Dongle link	Input/Output	Ignition switch OFF		5 V

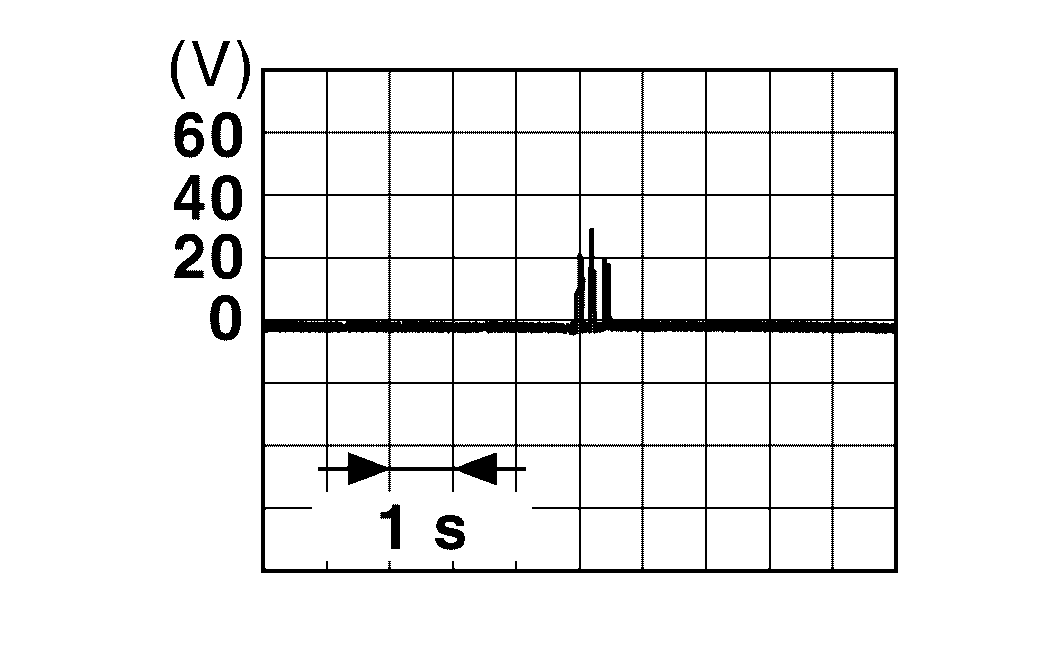

54 (V)	Ground	Communication line	Input/Output	Ignition switch ON		Courtesy of NISSAN NORTH AMERICA, INC. 9.0 - 10 V
55 (R)	Ground	Rain sensor serial link	Input/Output	Ignition switch OFF		12 V
				Ignition switch ON		Courtesy of NISSAN NORTH AMERICA, INC. 8.7 V
59 (P)	Ground	CAN-L	Input/Output	--		--
60 (L)	Ground	CAN-H	Input/Output	--		--
61 (G)	Ground	Rear window defogger relay control	Output	Ignition switch ON	Rear window defogger is not activated	9 - 16 V
					Rear window defogger is activated	0 - 1.5 V
62 (R)	Ground	Starter relay control	Output	Ignition switch ON	When selector lever is in P or N position	9 - 16 V
					When selector lever is not in P or N position	0 - 0.5 V
64 (V)	Ground	Intelligent Key warning buzzer	Output	Intelligent Key warning buzzer	Sounding NOTE: The pulse cycle changes depending on buzzer sounds.	Courtesy of NISSAN NORTH AMERICA, INC.
					Not sounding	9 - 16 V
65 (B)	Ground	Outside handle lamp control	Output	Outside handle lamp	ON	0 - 0.5 V
					OFF	9 - 16 V
66 (Y)³ (B)⁴	Ground	Blower relay control	Output	Ignition switch	OFF or ACC	0 - 0.5 V
					ON	9 - 16 V
67 (W/B)	Ground	Ignition relay (F/B) control	Output	Ignition switch	OFF or ACC	0 - 0.5 V
					ON	9 - 16 V
68 (R)	Ground	Dimmer signal	Output	Ignition switch ON	Either of the following conditions Lighting switch OFF The area around the vehicle is bright (Shine a light on the optical sensor)	0 V
					The area around the vehicle is dark (Block the light from the optical sensor)	12 V
69 (GR)	Ground	Detention switch power supply	Output	Ignition switch	ACC or ON	9 - 16 V
					For 15 seconds after ignition switch OFF
					After 15 seconds after ignition switch OFF	0 - 0.5 V
70 (B)	Ground	Ignition relay (IPDM E/R) control	Output	Ignition switch	OFF or ACC	9 - 16 V
					ON	0 - 0.5 V
71 (G)	Ground	Driver door request switch	Input	Driver door request switch	ON (Pressed)	0 - 1.5 V
					OFF (Not pressed)	9 - 16 V
72 (SB)	Ground	Passenger door request switch	Input	Passenger door request switch	ON (Pressed)	0 - 1.5 V
					OFF (Not pressed)	Courtesy of NISSAN NORTH AMERICA, INC. 1.0 V
75 (BR)	Ground	Combination switch INPUT 5	Input	Combination switch	All switches OFF	Courtesy of NISSAN NORTH AMERICA, INC. 1.4 V
					Front fog lamp switch ON	Courtesy of NISSAN NORTH AMERICA, INC. 1.3 V
					Any of the condition below with all switches OFF INT VOLUME 1 INT VOLUME 2 INT VOLUME 6 INT VOLUME 7 NOTE: "INT VOLUME" in "DATA MONITOR" mode of "BCM" using CONSULT.	Courtesy of NISSAN NORTH AMERICA, INC. 1.3 V
76 (BG)	Ground	Combination switch INPUT 4	Input	Combination switch	All switches OFF	Courtesy of NISSAN NORTH AMERICA, INC. 1.4 V
					Lighting switch AUTO	Courtesy of NISSAN NORTH AMERICA, INC. 1.3 V
					Lighting switch 1ST	Courtesy of NISSAN NORTH AMERICA, INC. 1.3 V
					Any of the condition below with all switches OFF INT VOLUME 1 INT VOLUME 5 INT VOLUME 6 NOTE: "INT VOLUME" in "DATA MONITOR" mode of "BCM" using CONSULT.	Courtesy of NISSAN NORTH AMERICA, INC. 1.3 V
77 (V)	Ground	Combination switch INPUT 3	Input	Combination switch	All switches OFF	Courtesy of NISSAN NORTH AMERICA, INC. 1.4 V
					Lighting switch HI	Courtesy of NISSAN NORTH AMERICA, INC. 1.3 V
					Lighting switch 2ND	Courtesy of NISSAN NORTH AMERICA, INC. 1.3 V
					Any of the condition below with all switches OFF INT VOLUME 1 INT VOLUME 2 INT VOLUME 3 NOTE: "INT VOLUME" in "DATA MONITOR" mode of "BCM" using CONSULT.	Courtesy of NISSAN NORTH AMERICA, INC. 1.3 V
78 (Y)	Ground	Combination switch INPUT 2	Input	Combination switch	All switches OFF	Courtesy of NISSAN NORTH AMERICA, INC. 1.4 V
					Lighting switch PASS	Courtesy of NISSAN NORTH AMERICA, INC. 1.3 V
					Lighting switch 2ND	Courtesy of NISSAN NORTH AMERICA, INC. 1.3 V
					Front wiper switch INT/AUTO	Courtesy of NISSAN NORTH AMERICA, INC. 1.3 V
					Front wiper switch HI	Courtesy of NISSAN NORTH AMERICA, INC. 1.3 V
79 (LG)	Ground	Combination switch INPUT 1	Input	Combination switch	All switches OFF	Courtesy of NISSAN NORTH AMERICA, INC. 1.4 V
					Turn signal switch LH	Courtesy of NISSAN NORTH AMERICA, INC. 1.3 V
					Turn signal switch RH	Courtesy of NISSAN NORTH AMERICA, INC. 1.3 V
					Front wiper switch LO	Courtesy of NISSAN NORTH AMERICA, INC. 1.3 V
					Front washer switch ON	Courtesy of NISSAN NORTH AMERICA, INC. 1.3 V
80 (L)	Ground	Trunk lid opener switch	Input	Trunk lid opener switch	ON (Pressed)	0 - 1.5 V
					OFF (Not pressed)	9 - 16 V
83 (L)	Ground	Trunk lid opener request switch	Input	Trunk lid opener request switch	ON (Pressed)	0 - 1.5 V
					OFF (Not pressed)	Courtesy of NISSAN NORTH AMERICA, INC.
85 (P)	Ground	Trunk room lamp control	Output	Trunk room lamp	OFF	9 - 16 V
					ON	0 - 1 V
91 (GR)	Ground	Trunk lid open	Output	Trunk lid	OFF (Actuator is not activated)	0 V
					OPEN (Actuator is activated)	9 - 16 V

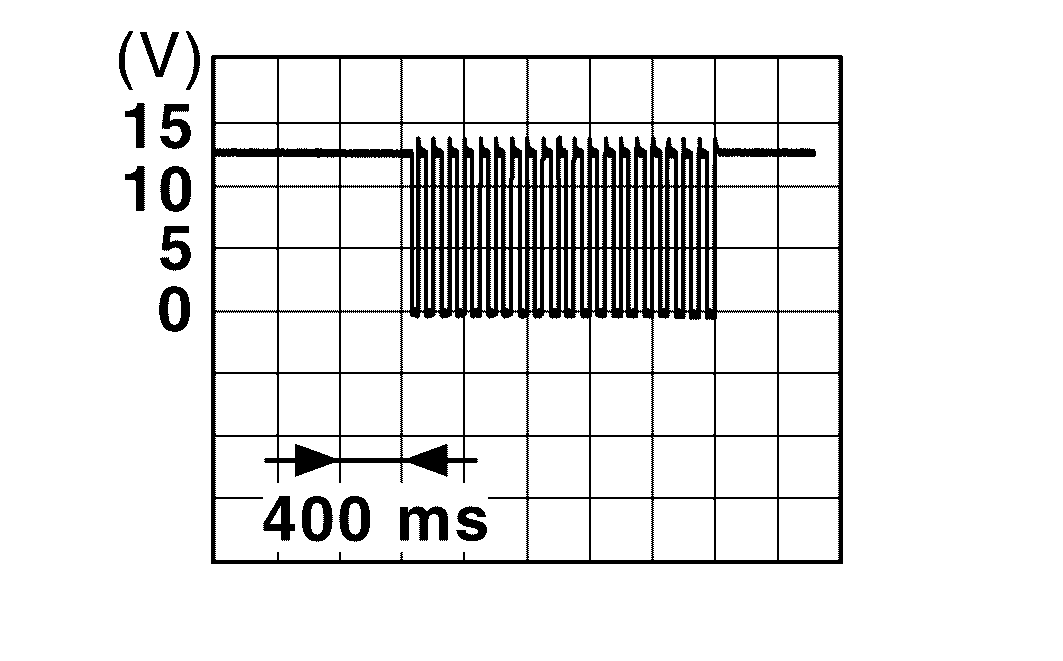

92 (W)	Ground	Turn signal RH output (Rear)	Output	Ignition switch ON	Turn signal switch OFF	0 V
					Turn signal switch RH	Courtesy of NISSAN NORTH AMERICA, INC. 6.5 V (Turn signal lamp turn on: 9 - 16 V)
94 (GR)	Ground	Passenger door switch	Input	Passenger door switch	OFF (When passenger door closed)	Courtesy of NISSAN NORTH AMERICA, INC. 11.8 V
					ON (When passenger door opened)	0 V
96 (V)	Ground	Driver door switch	Input	Driver door switch	OFF (When driver door closed)	Courtesy of NISSAN NORTH AMERICA, INC. 11.8 V
					ON (When driver door opened)	0 V
97 (R)	Ground	Trunk room lamp switch	Input	Trunk room lamp switch	OFF (When trunk lid closed)	Courtesy of NISSAN NORTH AMERICA, INC. 11.8 V
					ON (When trunk lid opened)	0 V

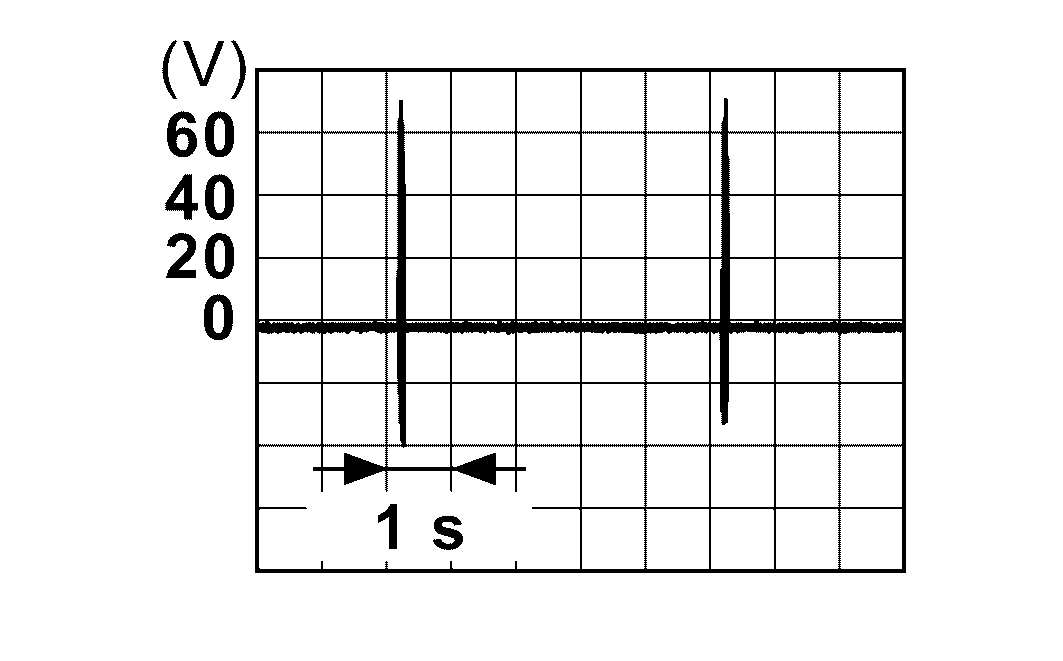

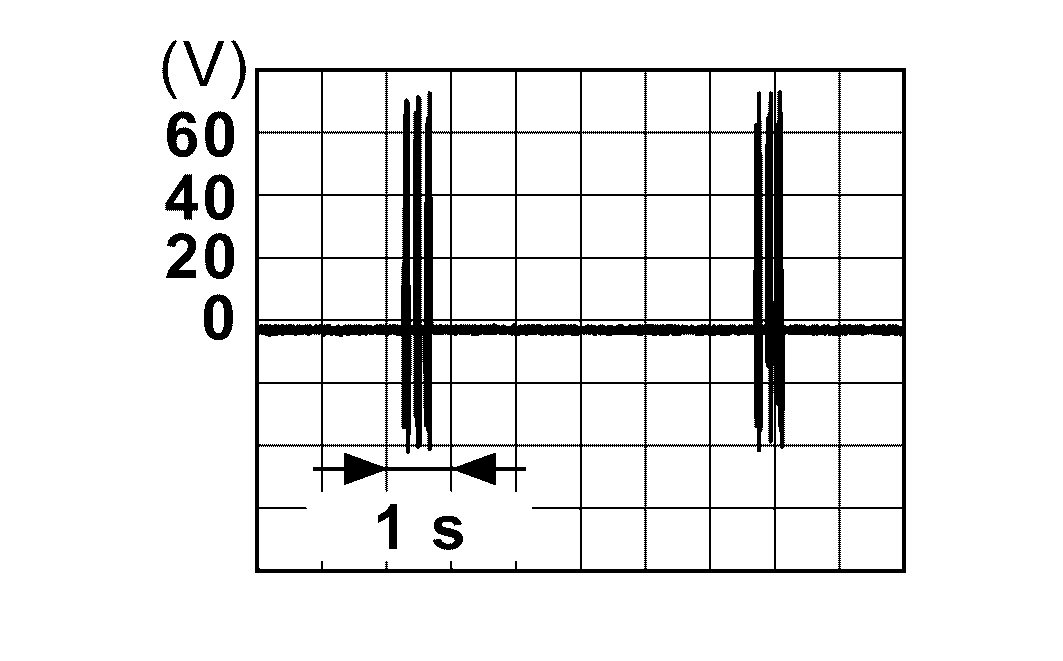

99 (GR)	Ground	Inside key antenna (Trunk room) (-)	Output	Ignition switch ON and any door is open	When Intelligent Key is not in the antenna detection area	Courtesy of NISSAN NORTH AMERICA, INC.

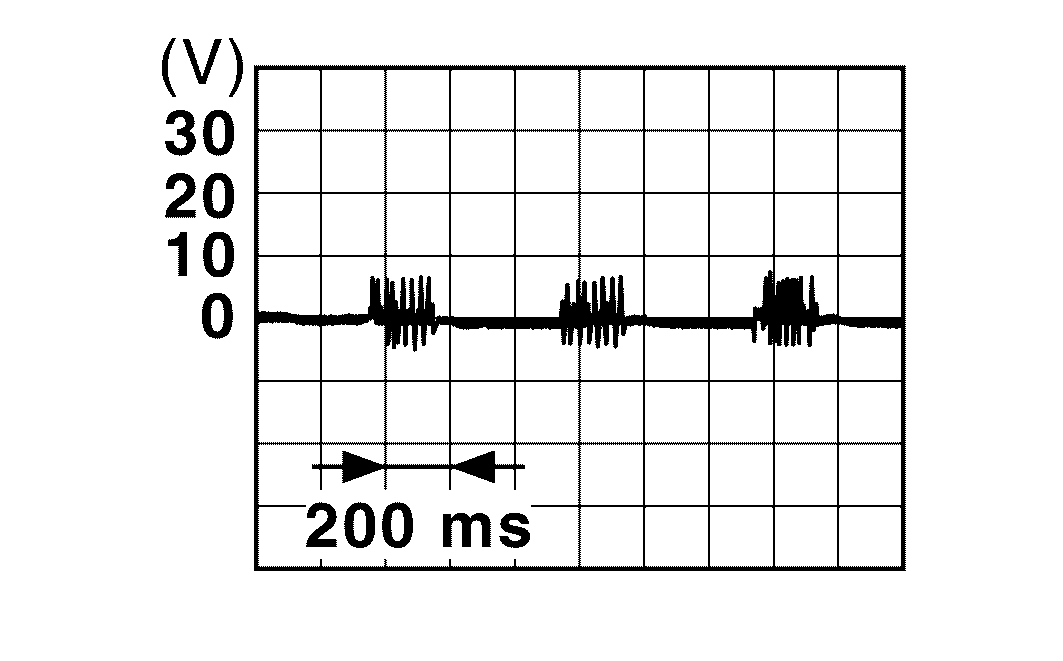

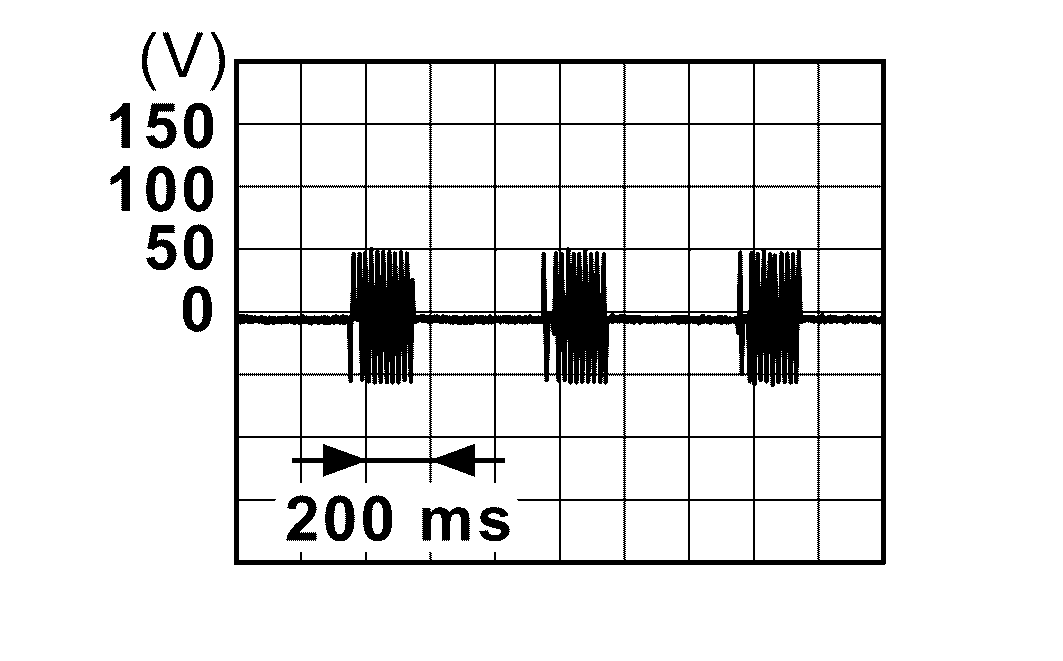

					When Intelligent Key is in the antenna detection area	Courtesy of NISSAN NORTH AMERICA, INC.
100 (W)	Ground	Inside key antenna (Trunk room) (+)	Output	Ignition switch ON and any door is open	When Intelligent Key is not in the antenna detection area	Courtesy of NISSAN NORTH AMERICA, INC.
					When Intelligent Key is in the antenna detection area	Courtesy of NISSAN NORTH AMERICA, INC.
101 (BG)	Ground	Rear bumper antenna (-)	Output	Ignition switch ON and any door is open	When Intelligent Key is not in the antenna detection area	Courtesy of NISSAN NORTH AMERICA, INC.
					When Intelligent Key is in the antenna detection area	Courtesy of NISSAN NORTH AMERICA, INC.
102 (LG)	Ground	Rear bumper antenna (+)	Output	Ignition switch ON and any door is open	When Intelligent Key is not in the antenna detection area	Courtesy of NISSAN NORTH AMERICA, INC.
					When Intelligent Key is in the antenna detection area	Courtesy of NISSAN NORTH AMERICA, INC.
103 (Y)	Ground	Turn signal LH output (Rear)	Output	Ignition switch ON	Turn signal switch OFF	0 V
					Turn signal switch LH	Courtesy of NISSAN NORTH AMERICA, INC. 6.5 V (Turn signal lamp turn on: 9 - 16 V)
105 (V)	Ground	Turn signal RH output (Front)	Output	Ignition switch ON	Turn signal switch OFF	0 V
					Turn signal switch RH	Courtesy of NISSAN NORTH AMERICA, INC. 6.5 V (Turn signal lamp turn on: 9 - 16 V)
106 (V)	Ground	Turn signal RH output (Side)	Output	Ignition switch ON	Turn signal switch OFF	0 V
					Turn signal switch RH	Courtesy of NISSAN NORTH AMERICA, INC. 6.5 V (Turn signal lamp turn on: 9 - 16 V)
107 (P)	Ground	Push-button ignition switch illumination ground	Input	Ignition switch ON		0 V
108 (L)	Ground	Shift lock solenoid output	Output	Stop lamp switch	OFF (Brake pedal is not depressed)	0 V
					ON (Brake pedal is depressed)	9 - 16 V
111 (Y)	Ground	ACC/ON indicator lamp	Output	Ignition switch	OFF	9 - 16 V
					ACC or ON	0 - 1.5 V
113 (SB)	Ground	Accessory relay control	Output	Ignition switch	OFF	0 - 0.5 V
					ACC or ON	9 - 16 V
114 (LG)	Ground	Passenger door antenna (+)	Output	Ignition switch ON and any door is open	When Intelligent Key is not in the antenna detection area	Courtesy of NISSAN NORTH AMERICA, INC.
					When Intelligent Key is in the antenna detection area	Courtesy of NISSAN NORTH AMERICA, INC.
115 (V)	Ground	Passenger door antenna (-)	Output	Ignition switch ON and any door is open	When Intelligent Key is not in the antenna detection area	Courtesy of NISSAN NORTH AMERICA, INC.
					When Intelligent Key is in the antenna detection area	Courtesy of NISSAN NORTH AMERICA, INC.
116 (BR)	Ground	Inside key antenna (Console) (+)	Output	Ignition switch ON and any door is open	When Intelligent Key is not in the antenna detection area	Courtesy of NISSAN NORTH AMERICA, INC.
					When Intelligent Key is in the antenna detection area	Courtesy of NISSAN NORTH AMERICA, INC.
117 (W/B)	Ground	Turn signal LH output (Front)	Output	Ignition switch ON	Turn signal switch OFF	0 V
					Turn signal switch LH	Courtesy of NISSAN NORTH AMERICA, INC. 6.5 V (Turn signal lamp turn on: 9 - 16 V)
118 (L)	Ground	Turn signal LH output (Side)	Output	Ignition switch ON	Turn signal switch OFF	0 V
					Turn signal switch LH	Courtesy of NISSAN NORTH AMERICA, INC. 6.5 V (Turn signal lamp turn on: 9 - 16 V)

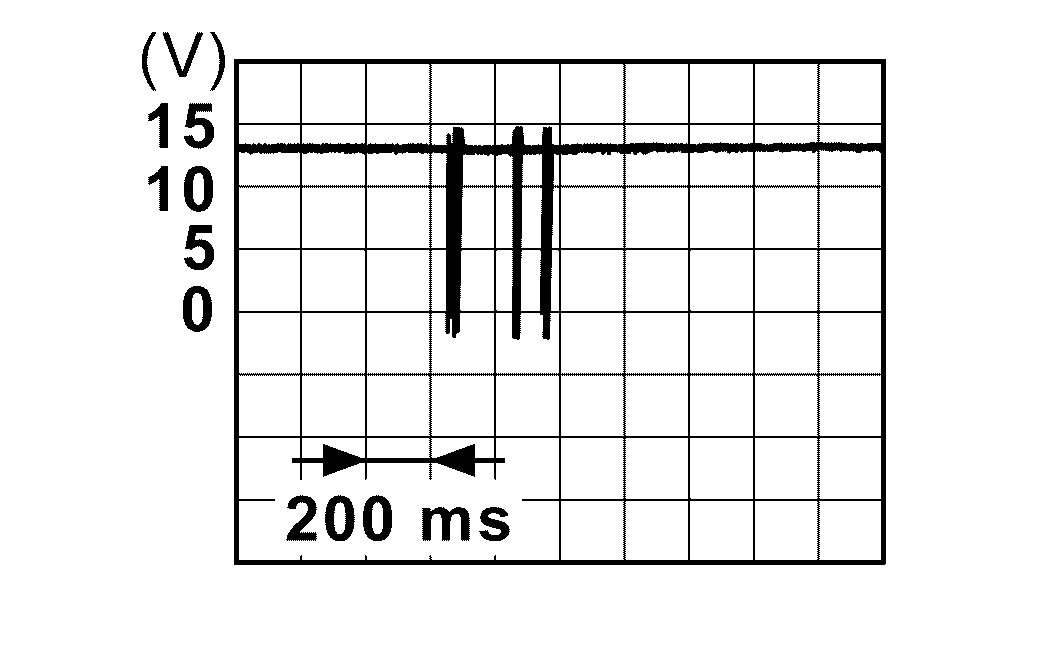

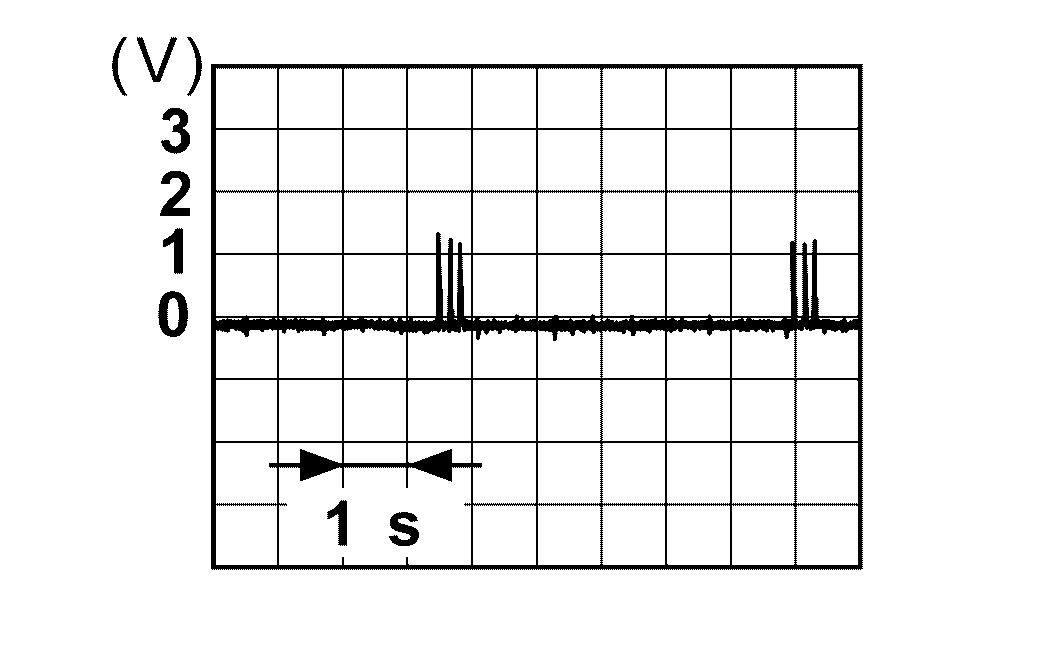

119 (L)	Ground	Remote keyless entry receiver communication	Input	Ignition switch ON	Waiting	Courtesy of NISSAN NORTH AMERICA, INC.

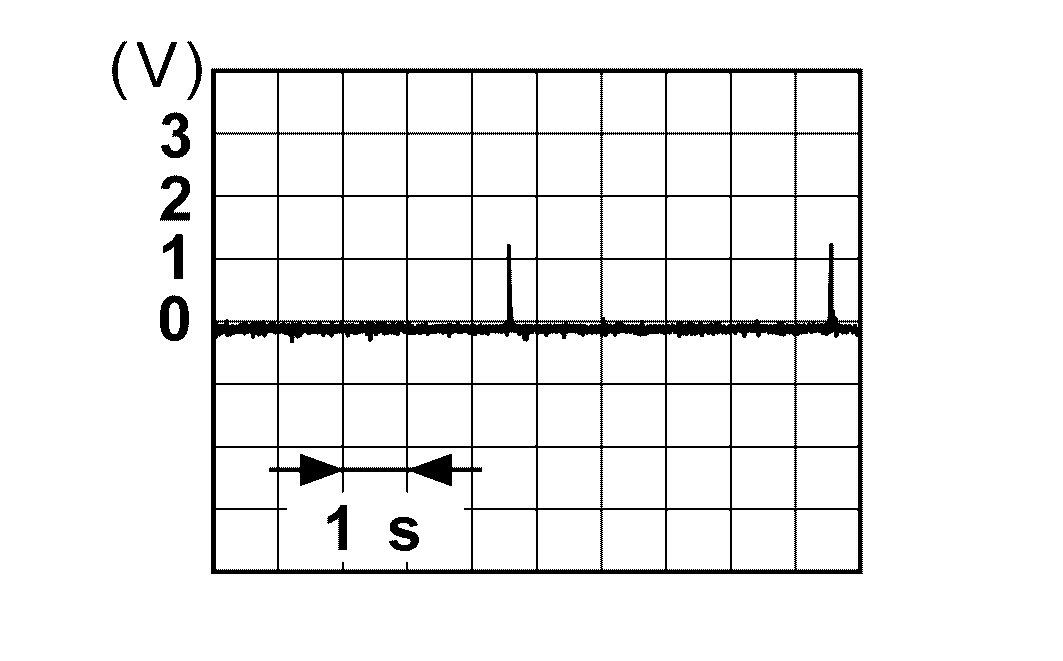

					When operating either button on Intelligent Key	Courtesy of NISSAN NORTH AMERICA, INC.
121 (SB)	Ground	Driver door antenna (-)	Output	Ignition switch ON and any door is open	When Intelligent Key is not in the antenna detection area	Courtesy of NISSAN NORTH AMERICA, INC.
					When Intelligent Key is in the antenna detection area	Courtesy of NISSAN NORTH AMERICA, INC.
122 (BG)	Ground	Driver door antenna (+)	Output	Ignition switch ON and any door is open	When Intelligent Key is not in the antenna detection area	Courtesy of NISSAN NORTH AMERICA, INC.
					When Intelligent Key is in the antenna detection area	Courtesy of NISSAN NORTH AMERICA, INC.
123 (R)	Ground	Inside key antenna (Instrument lower) (+)	Output	Ignition switch ON and any door is open	When Intelligent Key is not in the antenna detection area	Courtesy of NISSAN NORTH AMERICA, INC.
					When Intelligent Key is in the antenna detection area	Courtesy of NISSAN NORTH AMERICA, INC.
124 (G)	Ground	Inside key antenna (Instrument lower) (-)	Output	Ignition switch ON and any door is open	When Intelligent Key is not in the antenna detection area	Courtesy of NISSAN NORTH AMERICA, INC.
					When Intelligent Key is in the antenna detection area	Courtesy of NISSAN NORTH AMERICA, INC.

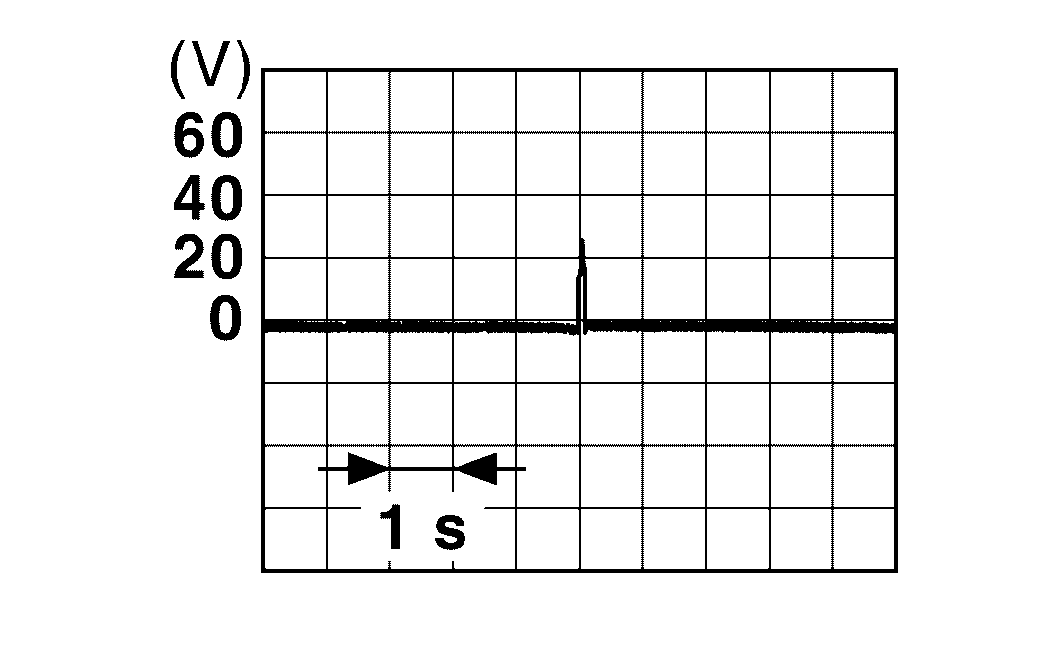

126 (B)	Ground	NATS antenna amp.	Input/Output	Intelligent Key: Intelligent Key battery is removed	Brake pedal: Depressed	Courtesy of NISSAN NORTH AMERICA, INC.

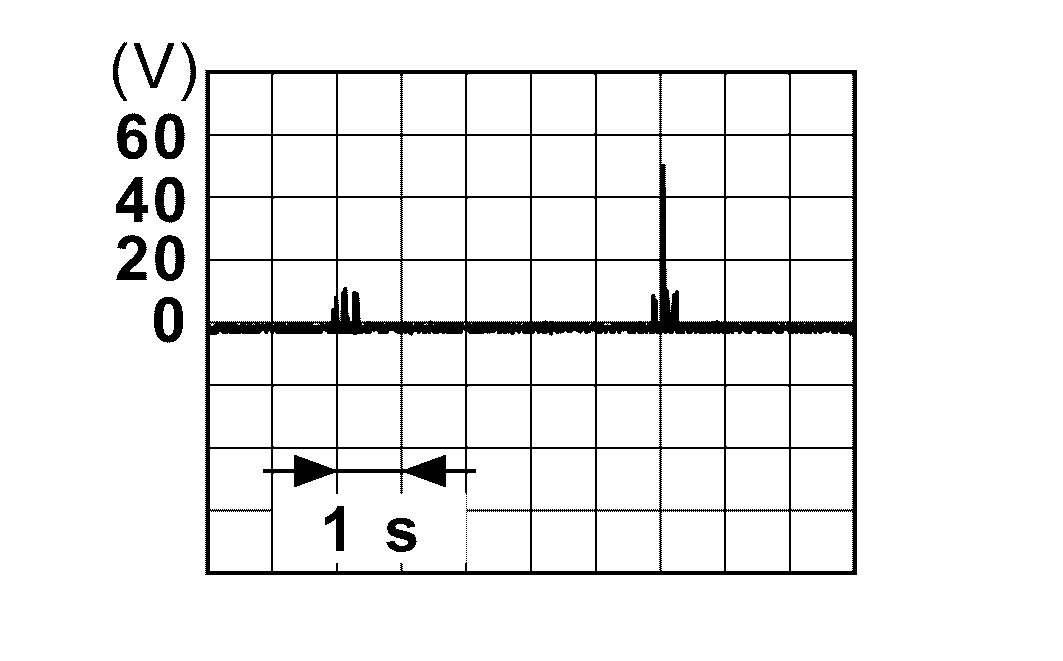

127 (W)	Ground	NATS antenna amp.	Input/Output	Intelligent Key: Intelligent Key battery is removed	Brake pedal: Depressed	Courtesy of NISSAN NORTH AMERICA, INC.
128 (GR)	Ground	Inside key antenna (Console) (-)	Output	Ignition switch ON and any door is open	When Intelligent Key is not in the antenna detection area	Courtesy of NISSAN NORTH AMERICA, INC.
					When Intelligent Key is in the antenna detection area	Courtesy of NISSAN NORTH AMERICA, INC.
129 (LG)	Ground	Interior room lamp power supply	Output	Interior room lamp battery saver is activated. (Cuts the interior room lamp power supply)		0 V
				Interior room lamp battery saver is not activated. (Outputs the interior room lamp power supply)		9 - 16 V
130 (P)	Ground	Passenger door UNLOCK	Output	Passenger door	UNLOCK (Actuator is activated)	9 - 16 V
					Other than UNLOCK (Actuator is not activated)	0 V
131 (Y)	Ground	Battery power supply	Input	Ignition switch OFF		9 - 16 V
134 (B)	Ground	Ground	Output	Ignition switch OFF		0 V
135 (V)	Ground	Front doors and fuel lid LOCK	Output	Front doors and fuel lid	LOCK (Actuator is activated)	9 - 16 V
					Other than LOCK (Actuator is not activated)	0 V
136 (V)	Ground	Interior room lamp control	Output	Map lamp and personal lamp (Door position)	When all doors are closed (Interior room lamp is turned OFF)	9 - 16 V
					Any doors opens (Interior room lamp is turned ON)	0 V
137 (LG)	Ground	Driver door and fuel lid UNLOCK	Output	Driver door and fuel lid	UNLOCK (Actuator is activated)	9 - 16 V
					Other than UNLOCK (Actuator is not activated)	0 V
138 (R)³ (P)⁴	Ground	Rear doors lock actuator power supply	Input	Ignition switch OFF, ACC or ON		9 - 16 V
139 (W)	Ground	Battery power supply (F/L)	Input	Ignition switch OFF, ACC or ON		9 - 16 V
140 (BR)	Ground	Ignition switch ON	Output	Ignition switch OFF		0 V
				Ignition switch ON		9 - 16 V
141 (R)	Ground	Power supply (BAT)	Output	Ignition switch OFF, ACC or ON		9 - 16 V
142 (R)	Ground	Front door and fuel filler lid lock actuator power supply	Input	Ignition switch OFF, ACC or ON		9 - 16 V
143 (B)	Ground	Ground	Output	Ignition switch OFF, ACC or ON		0 V

*¹ : Except for Mexico

*² : For Canada

*³ : For 2.0L turbo gasoline engine models

*⁴ : Except for 2.0L turbo gasoline engine models
