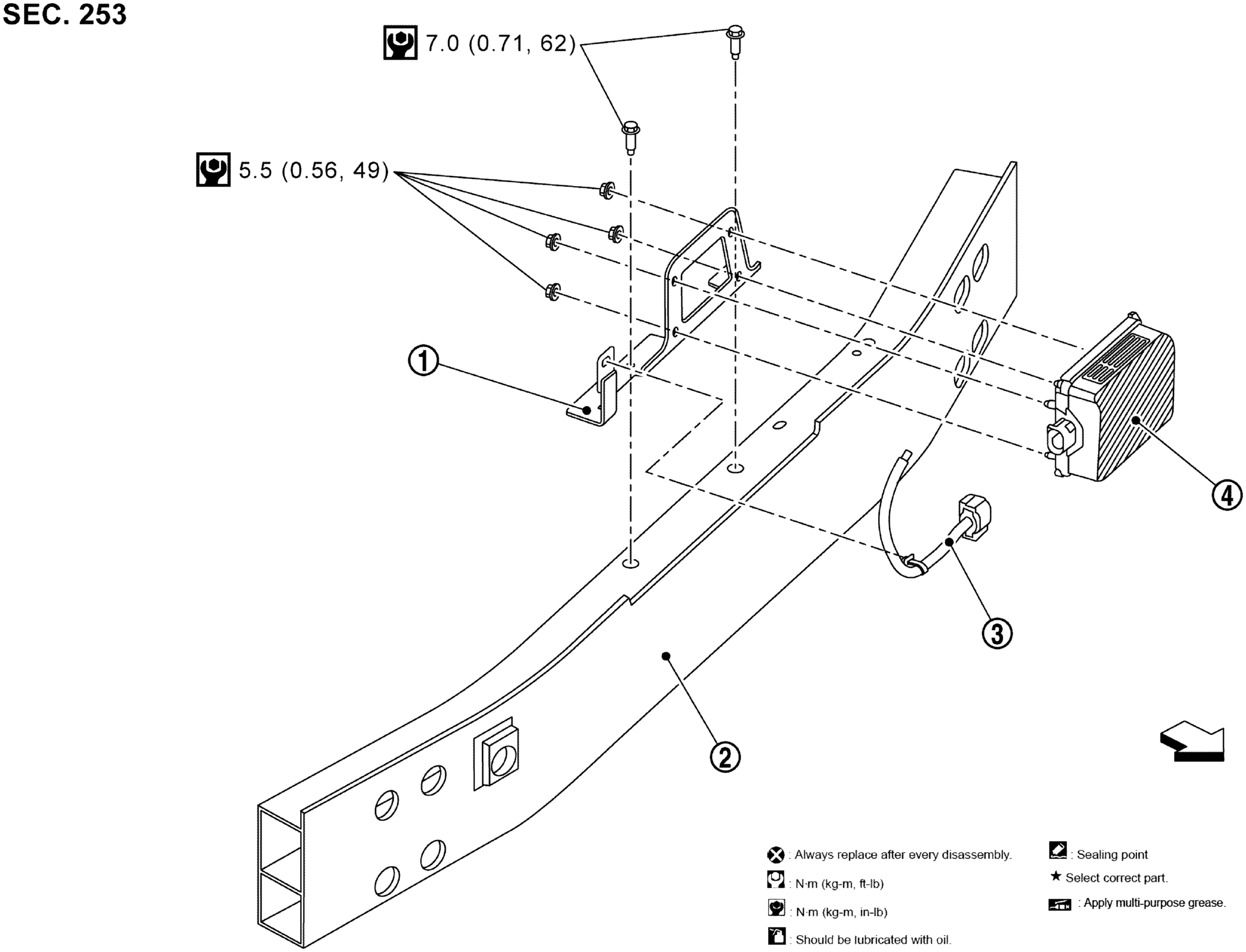

Exploded View
WARNING: This page is about a different car, the 2018 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Always perform the laser beam aiming adjustment and check the operation after the replacement, removal and installation of ICC sensor.
Courtesy of NISSAN NORTH AMERICA, INC.
|
|
Bracket
|
|
Front bumper reinforcement
|
|
ICC sensor harness connector
|
|
|
ICC sensor
|
|
|
: N.m (kg-m, in-lb)
|
