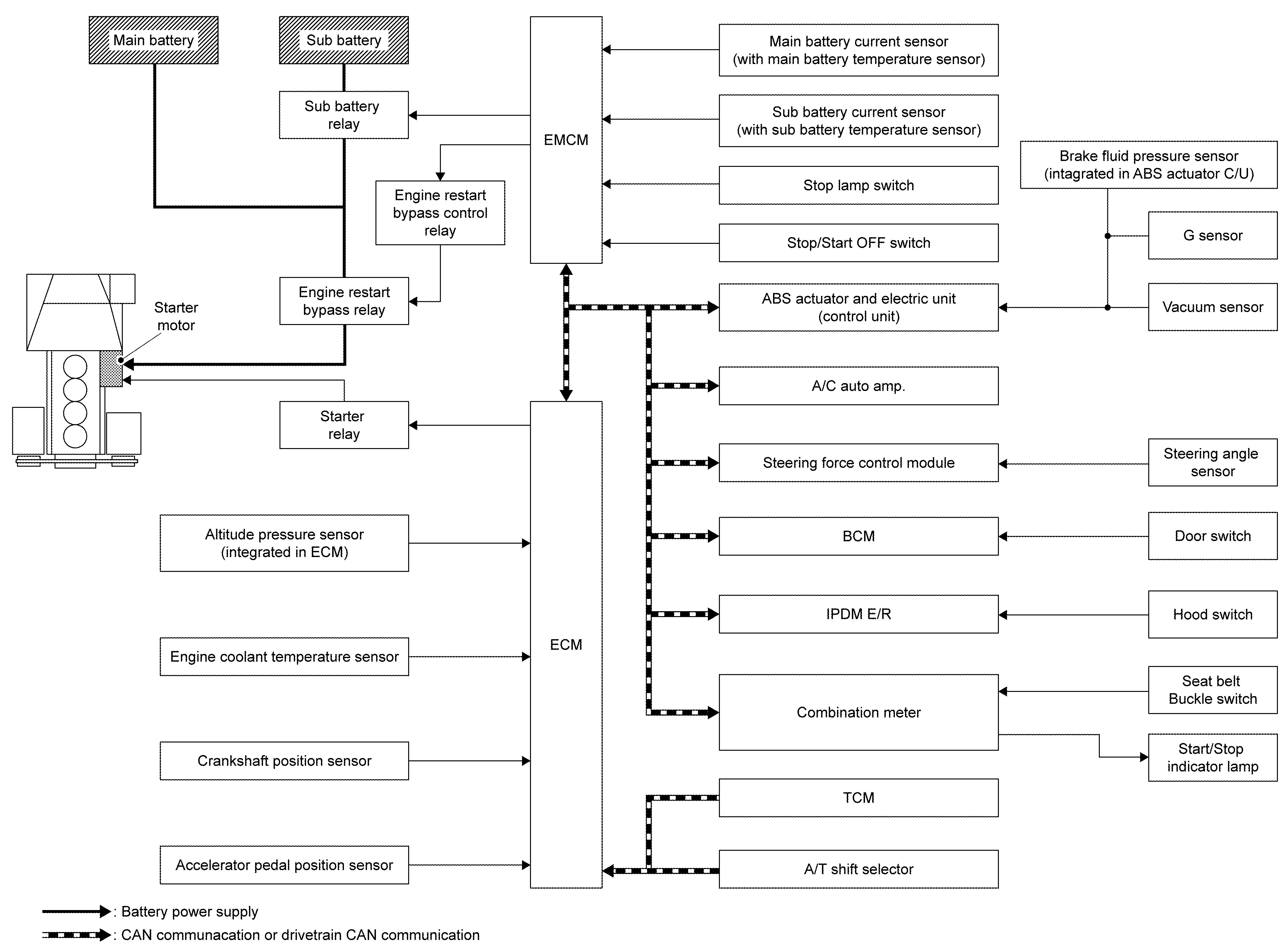

System Diagram

WARNING: This page is about a different car, the 2018 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
GNSJSBIA5555GB-555Courtesy of NISSAN NORTH AMERICA, INC.

*: Steering force control module is power steering control module.
