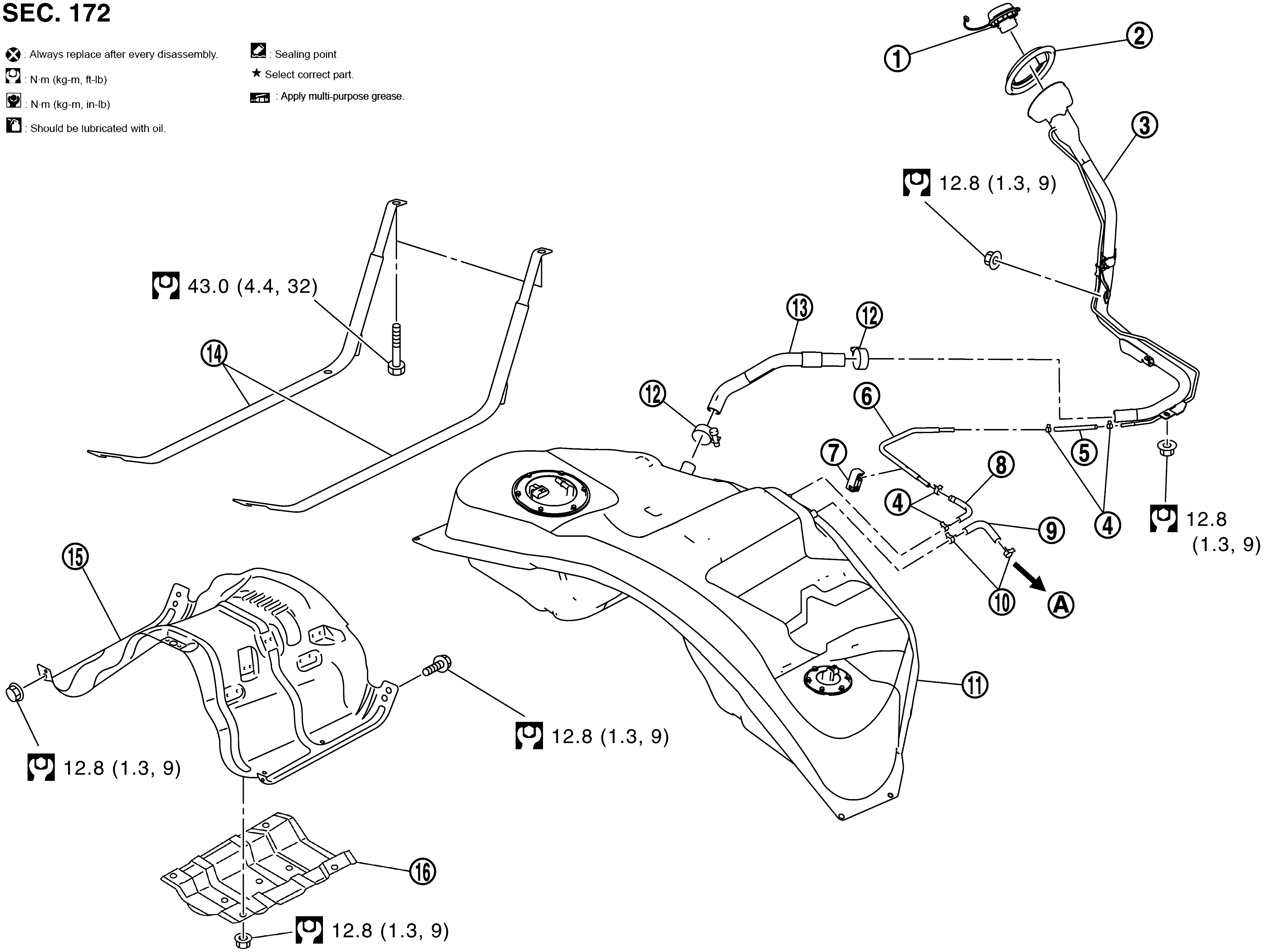

Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

Fuel filler cap	Grommet	Fuel filler tube
Clamp	EVAP hose	EVAP tube
Clip	EVAP hose	Vent hose
Clamp	Fuel tank	Clamp
Fuel filler hose	Fuel tank mounting band	Fuel tank protector
Insulator
To EVAP canister
: N•m (kg-m, ft-lb)
