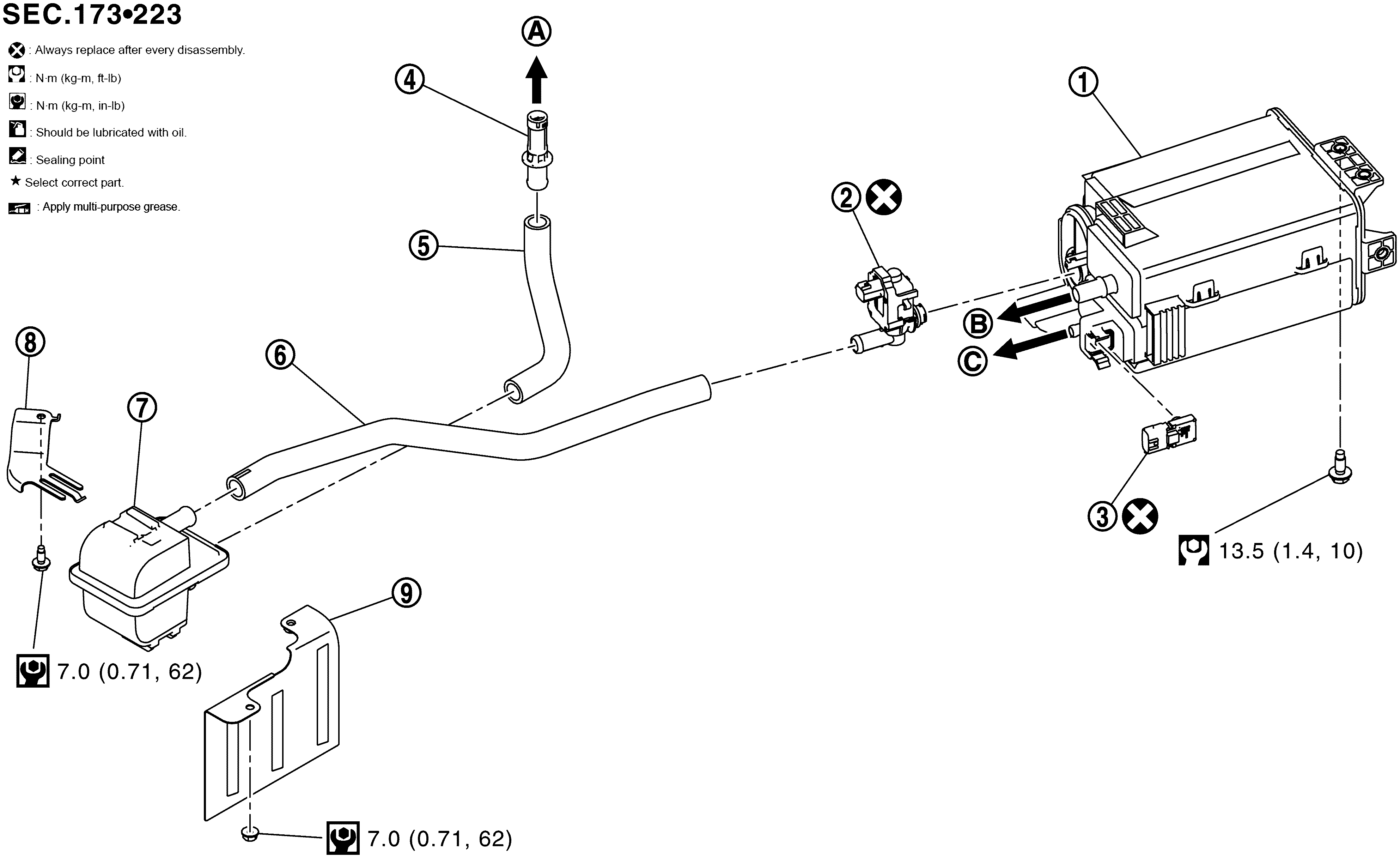

Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

EVAP canister	EVAP canister vent control valve	EVAP control system pressure sensor
Connector	Vent hose	Vent hose
Canister filter	Bracket	Insulator
To floor panel	To fuel tank	To EVAP canister purge volume control solenoid valve
: N•m (kg-m, ft-lb)
: N•m (kg-m, in-lb)
: Always replace after every disassembly.
