Sonar sensor (rear) |
- When a distance from an obstacle is detected, a distance signal is transmitted to the sonar control unit.

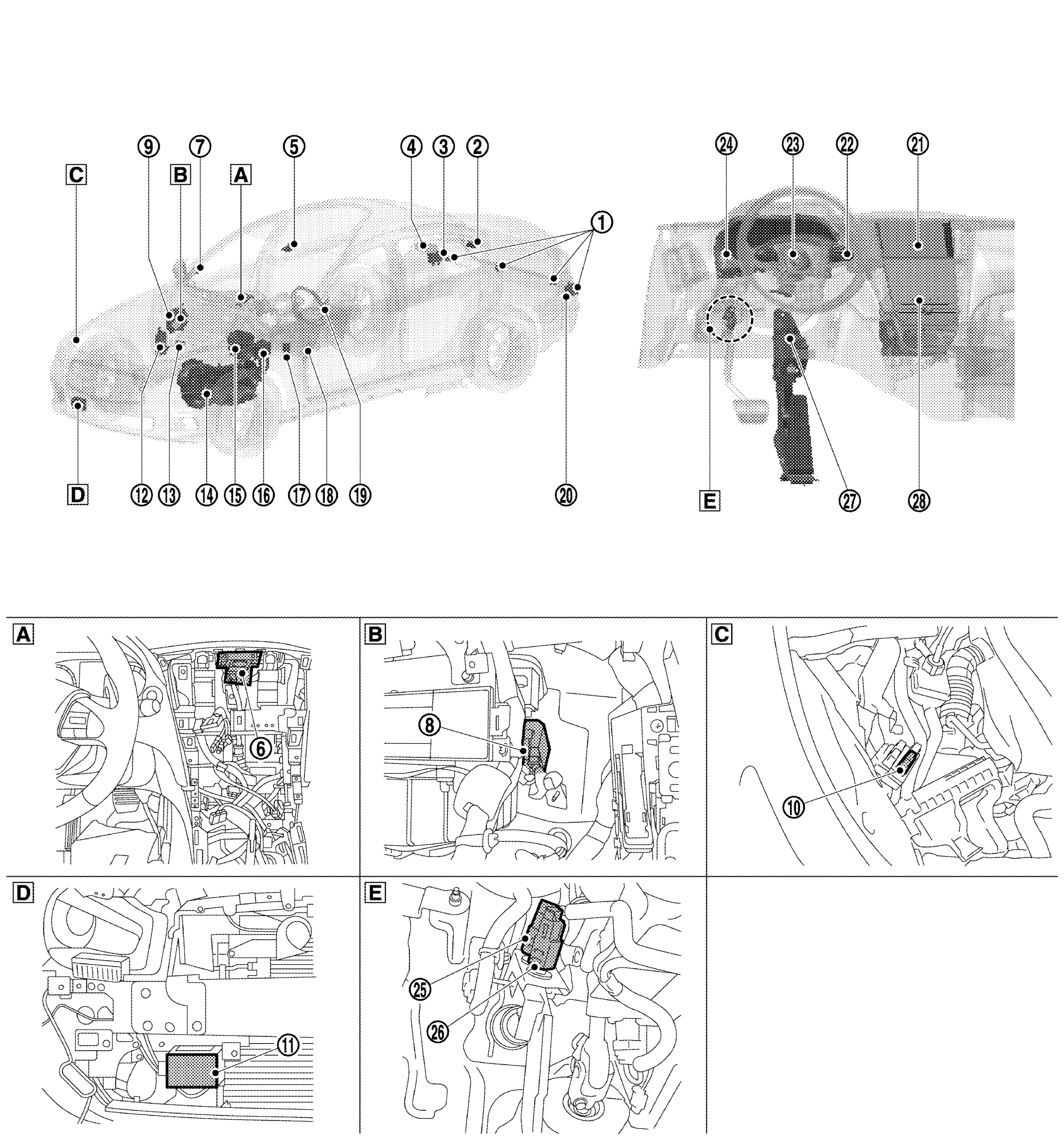

- Refer to COMPONENT LOCATION
for detailed installation location.
|
 |
ADAS control unit |
- ADAS control unit calculates a target distance between vehicles and a target speed, based on signals received from each sensor and switch to transmit a brake fluid pressure control signal to ABS actuator and electric unit (control unit) via CAN communication
- ADAS control unit transmits the buzzer output signal to the combination meter via CAN communication
- ADAS control unit transmits an accelerator pedal feedback force control signal to the accelerator pedal actuator via ITS communication
- Refer to COMPONENT LOCATION
for detailed installation location.
|
 |
Side radar RH |
Refer to SIDE RADAR LH/RH |
 |
HPCM |
- HPCM transmits the accelerator pedal position signal, brake pedal position switch signal, stop lamp switch signal, ICC steering switch signal, etc. to ADAS control unit via CAN communication
- Refer to COMPONENT LOCATION
for detailed installation location.
|
 |
Lane camera unit |
Refer to LANE CAMERA UNIT |
 |
Driver assistance buzzer |
Refer to DRIVER ASSISTANCE BUZZER |
 |
Blind Spot Warning/Blind Spot Intervention indicator RH |
Refer to BLIND SPOT WARNING/BLIND SPOT INTERVENTION INDICATOR LH/RH |
 |
Driver assistance buzzer control module |
Refer to DRIVER ASSISTANCE BUZZER CONTROL MODULE |
 |
Steeling angle main control module |
- Direct adaptive steering system is controlled by three control modules of steering force control module, steering angle main control module and steering angle sub control module.
- Receives steering reaction force request signal and controls the steering reaction force.
- Refer to COMPONENT LOCATION
for detailed installation location.
|
 |
ICC brake hold relay |
Refer to ICC BRAKE HOLD RELAY |
 |
ICC sensor |
Refer to ICC SENSOR |
 |
BCM |
Transmits the turn indicator signal to ADAS control unit via CAN communication |
 |
Sonar control unit |
- The warning buzzer outputs by inputting the sensor signal from sonar sensors.
- Sensor signal that corresponds to the detected distance to an obstacle is transmitted to around view monitor control unit via can communication.
- Refer to COMPONENT LOCATION
for detailed installation location.
|
 |
TCM |
- TCM transmits the signal related to A/T control to ADAS control unit.
- Refer to COMPONENT LOCATION
for detailed installation location.
|
 |
Electrically-driven intelligent brake unit |
- Electrically-driven intelligent brake unit controls the brake, based on a brake fluid pressure control signal received from ADAS control unit via CAN communication
- Electrically-driven intelligent brake unit detects driver's brake operation and transmits a driver brake operation detection signal to the ADAS control unit via CAN communication
- Refer to COMPONENT LOCATION
for detailed installation location.
|
 |
ABS actuator and electric unit (control unit) |
- ABS actuator and electric unit (control unit) transmits the vehicle speed signal (wheel speed), stop lamp signal and VDC/TCS/ABS system operation condition to ADAS control unit via CAN communication
- ABS actuator and electric unit (control unit) controls the brake, based on a brake fluid pressure control signal received from ADAS control unit via CAN communication
- Refer to COMPONENT LOCATION
for detailed installation location.
|
 |
Chassis control module |
- Chassis control module transmits the drive mode signal to ADAS control unit via CAN communication
- Refer to COMPONENT LOCATION
for detailed installation location.
|
 |
Buzzer |
- The warning buzzer sounds with the signal from the sonar control unit.
- Refer to COMPONENT LOCATION
for detailed installation location.
|
 |
Blind Spot Warning/Blind Spot Intervention indicator LH |
Refer to BLIND SPOT WARNING/BLIND SPOT INTERVENTION INDICATOR LH/RH |
 |
Side radar LH |
Refer to SIDE RADAR LH/RH |
 |
Display control unit |
- Display control unit transmits the system selection signal to ADAS control unit via CAN communication
- Refer to COMPONENT LOCATION
for detailed installation location.
|
 |
Dynamic driver assistance switch
(On the steering switch) |
HPCM receives an ICC steering switch (dynamic driver assistance switch) signal and transmits the signal to ADAS control unit via CAN communication |
 |
Steering angle sensor |
- Measures the rotation amount, rotation speed, and rotation direction of steering wheel, and then transmits them to ADAS control unit via CAN communication
- Refer to COMPONENT LOCATION
for detailed installation location.
|
 |
Combination meter |
Performs the following operations using the signals received from the ADAS control unit via the CAN communication
- Displays the system operation status using the meter display signal
- Illuminates the FEB warning lamp using the FEB warning lamp signal
- Operates the buzzer using the buzzer output signal
- Refer to COMPONENT LOCATION
for detailed installation location.
|
 |
Stop lamp switch |
Refer to BRAKE PEDAL POSITION SWITCH / STOP LAMP SWITCH |
 |
Brake pedal position switch |
 |
Accelerator pedal actuator |
Refer to ACCELERATOR PEDAL ACTUATOR |
 |
Integral switch |
- Change each system setting by switch operation
- Refer to COMPONENT LOCATION
for detailed installation location.
|
