Removal And Installation: Removal
WARNING: This page is about a different car, the 2016 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Before replacing ADAS control unit, perform "Read/Write Configuration" to save or print current vehicle specification. For details, refer to DESCRIPTION .
- Remove the rear parcel shelf finisher. Refer to REMOVAL AND INSTALLATION .
- Remove the trunk finisher front upper Refer to REMOVAL AND INSTALLATION .
- Disconnect ADAS control unit connector.

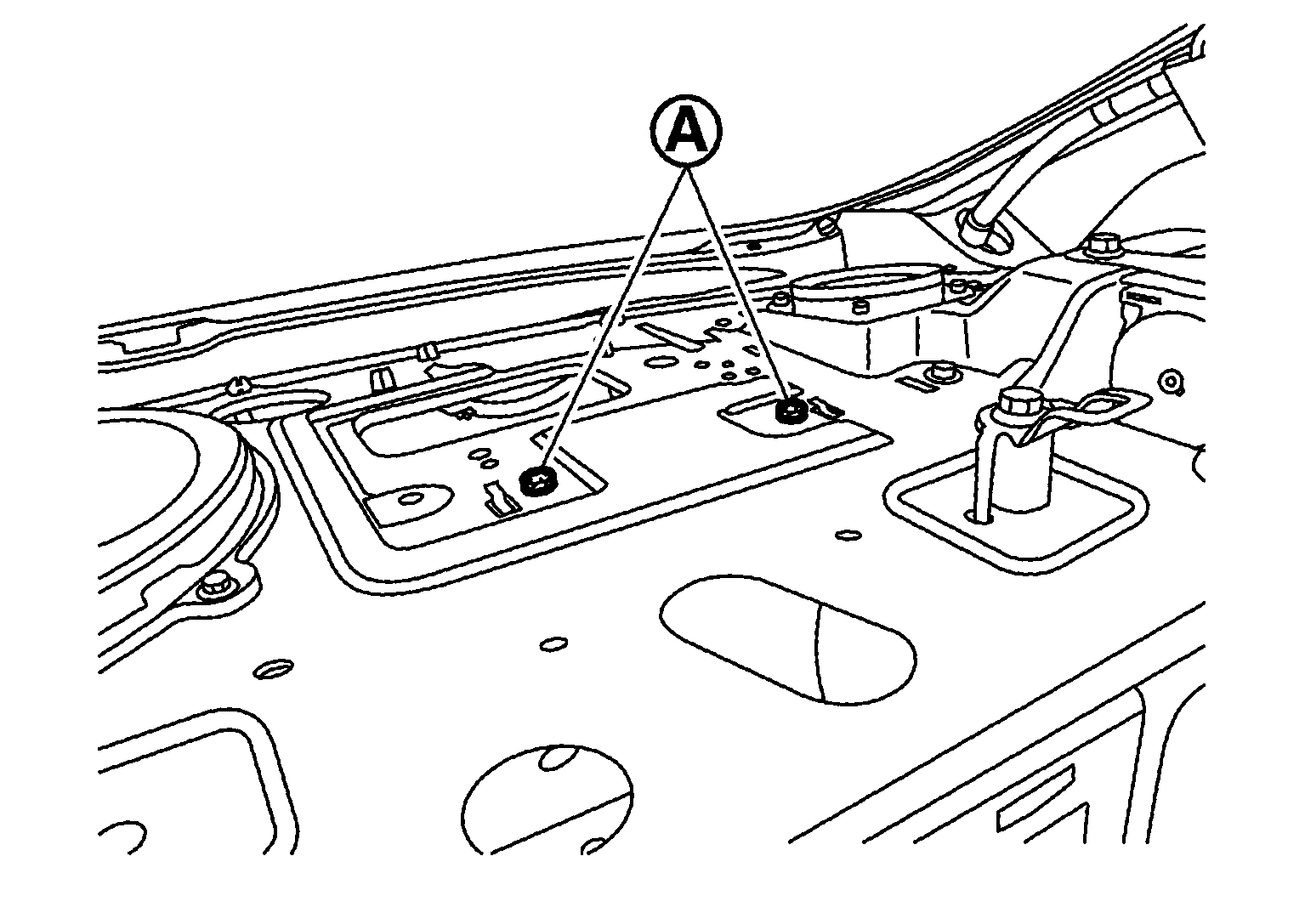

- Remove mounting bolts
from ADAS control unit.
- Remove ADAS control unit.
