Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

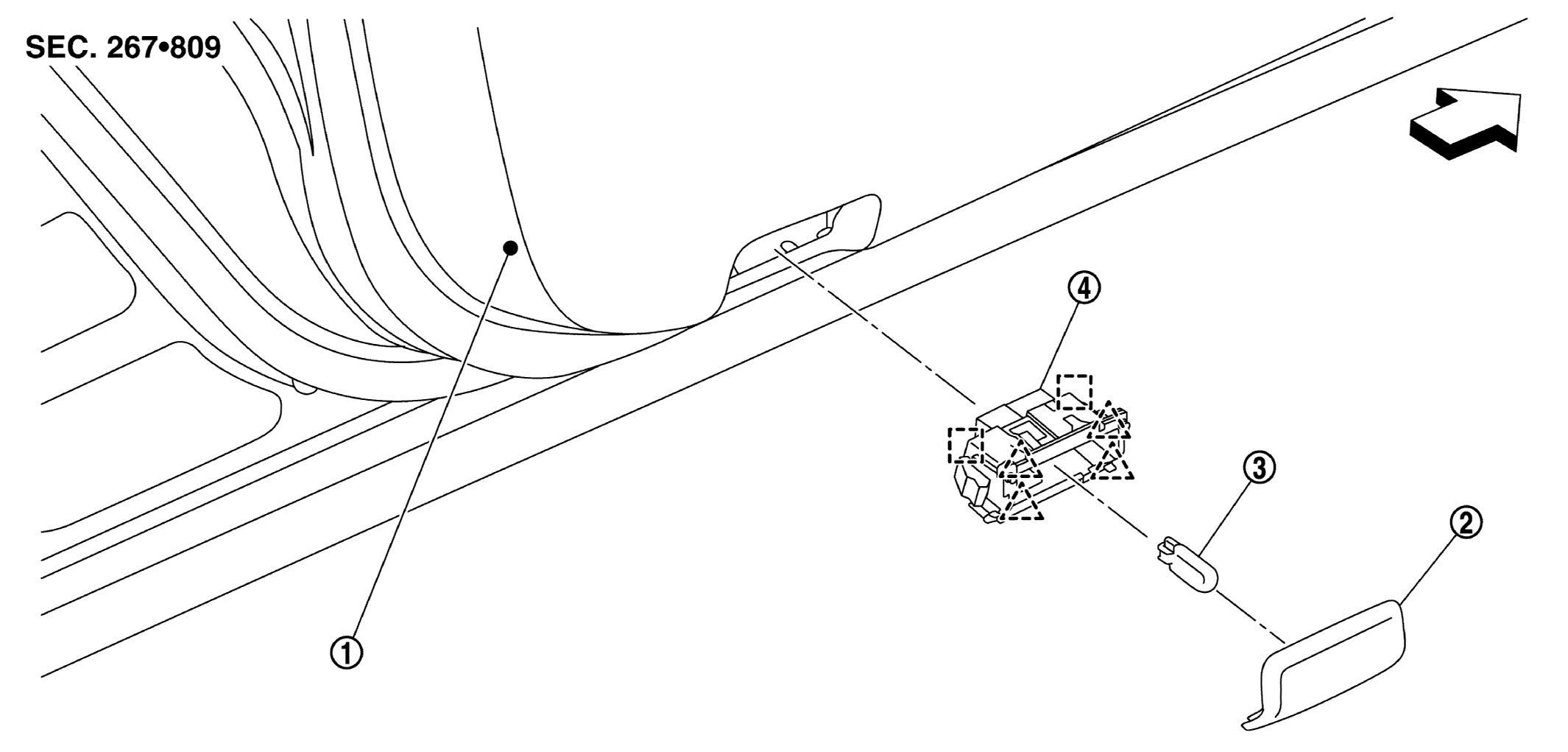

GNSJMLIA4271ZZ-271Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Front door finisher WHITE-2 Lens WHITE-3 Bulb
WHITE-4 Step lamp base
SANKAKU-H : Pawl
SHIKAKU-H : Metal clip
ARROW : Vehicle front
