Without HBMC

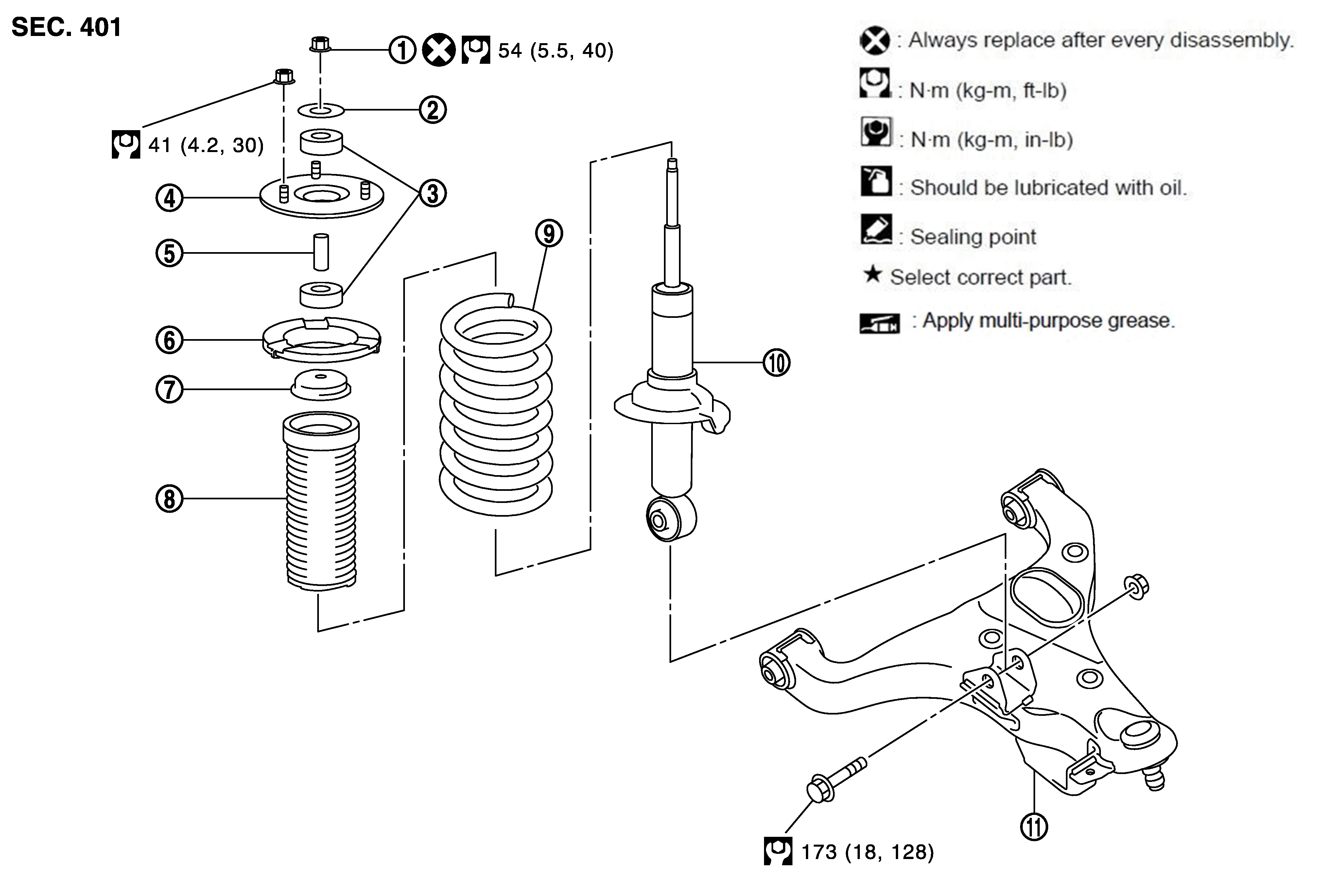

Fig 1: Exploded View Of Front Coil Spring And Shock Absorber Components With Torque Specification

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Piston rod lock nut	2.	Washer	3.	Bushing
4.	Shock absorber mounting bracket	5.	Tube	6.	Rubber seat
7.	Bound bumper cover	8.	Dust cover	9.	Coil spring
10.	Shock absorber	11.	Lower link
	: Always replace after every disassembly.
	: N•m (kg-m, ft-lb)
