Front Side

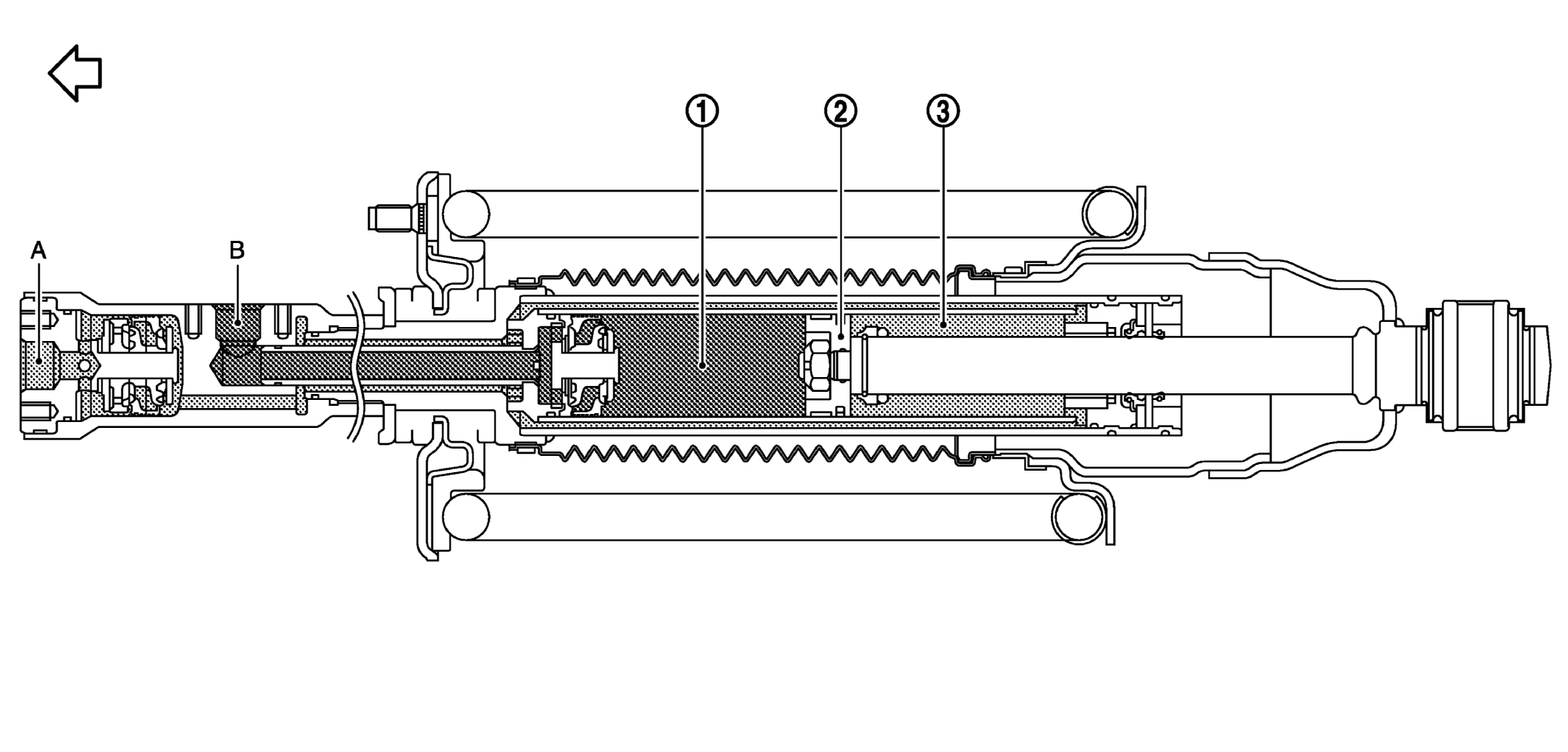

Oil enters from oil inlet outlet hole (A) and flows into lower chamber (3) via outside oil path of cylinder inside. Oil enters from oil inlet outlet hole (B) and flows into upper chamber (1). With the pressure difference between oil flowed into the upper chamber and lower chamber, the piston (2) moves up and down and conveys a force generated through this motion to the tires.
| 1. | Upper chamber | 2. | Piston | 3. | Lower chamber |
| A. | Oil inlet outlet hole | B. | Oil inlet outlet hole | ||
| Vehicle upper |
