Removal And Installation: Installation

Note the following, and install in the reverse order of removal.

• To install the slide plate (1), create clearance (L) in the steering column assembly mounting area (2) as follows.

  Courtesy of NISSAN NORTH AMERICA, INC.

  L	: 2.0 mm (0.079 in)

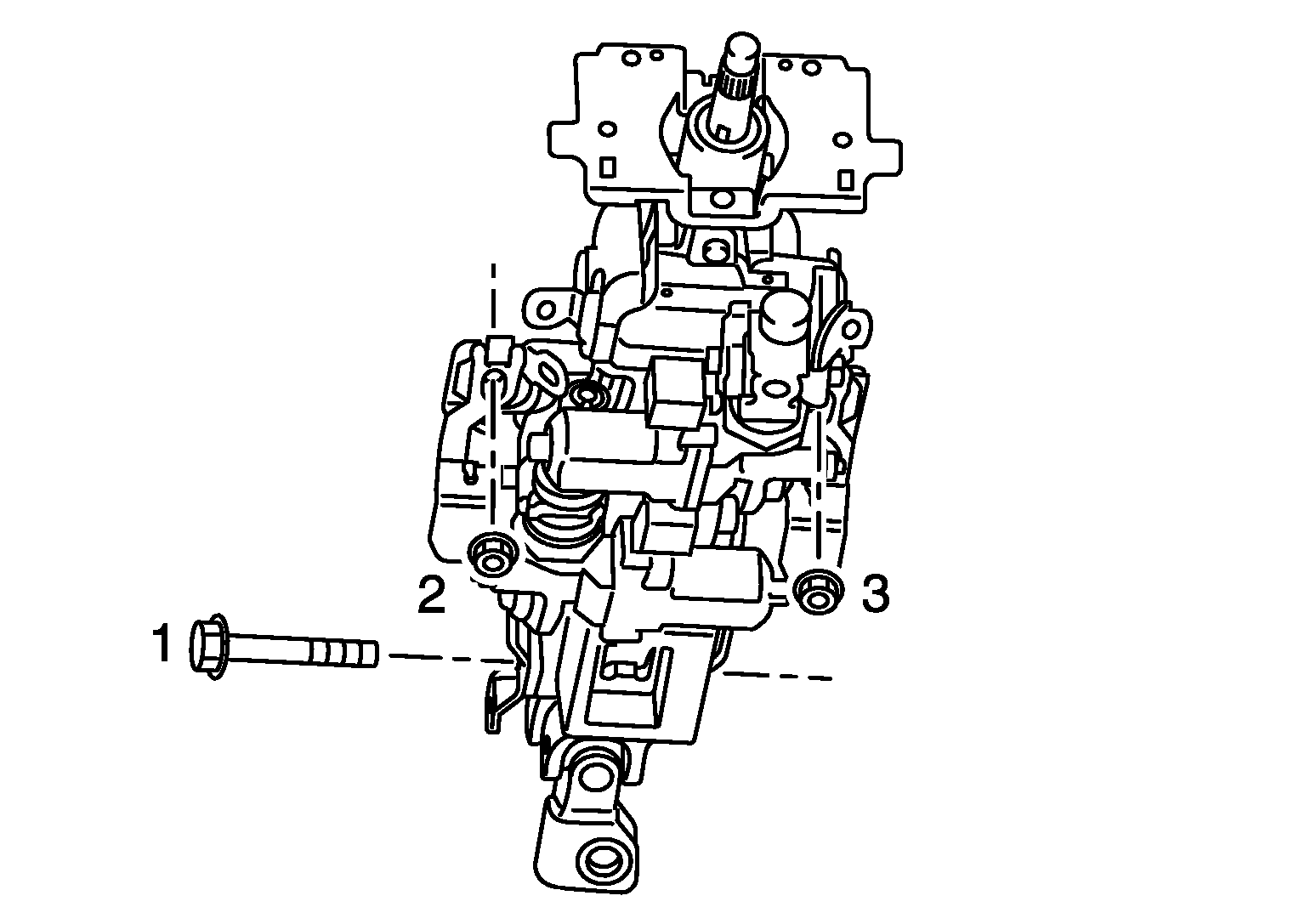

• Tighten the mounting bolts and nuts in the order shown in the illustration when installing the steering column assembly.

  Courtesy of NISSAN NORTH AMERICA, INC.

• Be careful of the following points when installing the steering column assembly.
  CAUTION:

  • Never give axial impact to steering column assembly during installation.
  • Never move steering gear assembly.
• Perform inspection after installation. Refer to INSPECTION .
