Operation Principle

ELECTRIC CONTROLLED COUPLING

Courtesy of NISSAN NORTH AMERICA, INC.

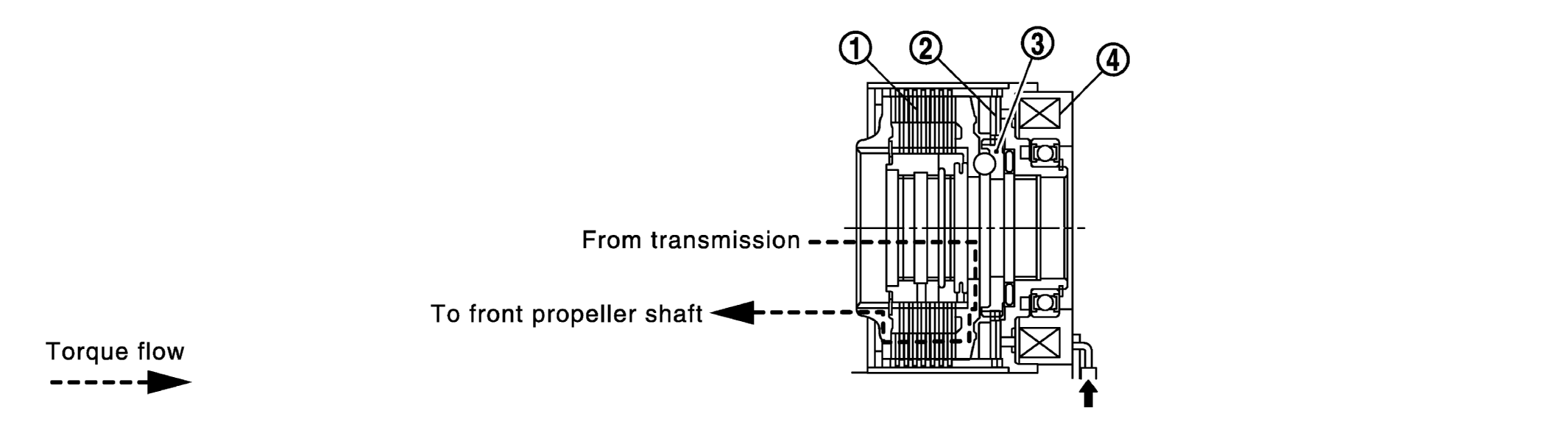

1.	Main clutch	2.	Control clutch	3.	Cam
4.	Electromagnet
: Current commanded from AWD control unit.

1. AWD control unit supplies command current to electric controlled coupling (AWD solenoid).
2. Control clutch is engaged by electromagnet and torque is detected in control clutch.
3. The cam operates in response to control clutch torque and applies pressure to main clutch.
4. Main clutch transmits torque to front wheels according to pressing power.
   • Transmission torque to front wheels is determined according to command current.

     Courtesy of NISSAN NORTH AMERICA, INC.
